1/10 GS01 KOMODO TRUCK SCALE CRAWLER KIT

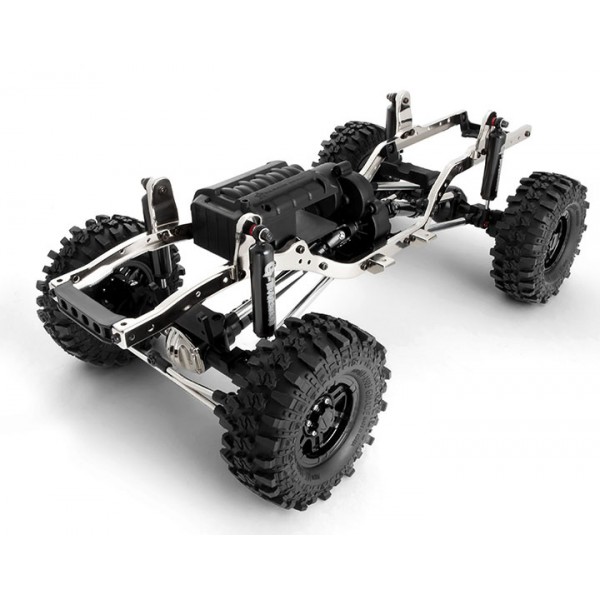

STEEL LADDER FRAME

GS01 frame is designed to look as a chassis of a real car frame and the material of the frame is made of high strength steel, C-channel side rail and is with bolted with cross members, which make it resistant to twisting or warping. Also, steel parts are nickel plated to look glossy and prevent rust.

DUST PROOF RECEIVER BOX

Receiver box is designed to look as a real engine cover and the function of the receiver box is to protect the receiver from getting dusty and also to be used as ESC mounting space.

ADJUSTABLE BATTERY PLATE

Battery plate is designed to offer the lowest center gravity of chassis for stable driving motion. Adjustable plate helps to mount a different type of batteries.

SKID PLATE

The skid plates are designed to run smoothly over any surface of roads without getting stuck.

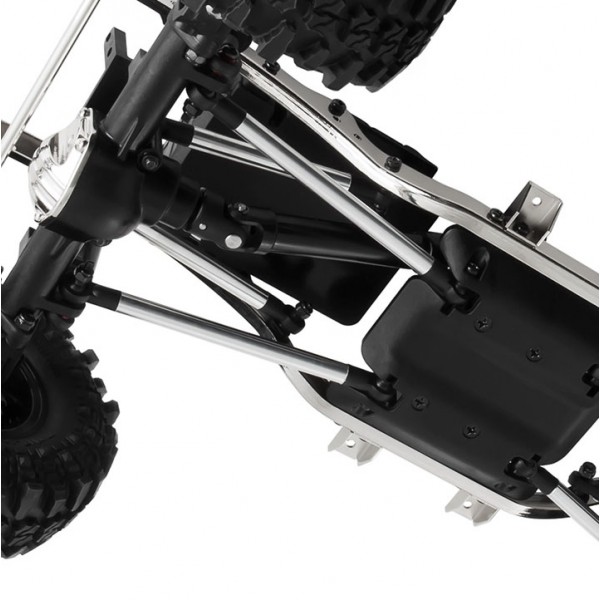

4-LINK SUSPENSION SYSTEM

The suspension has been design to reduce the torque twisting and make smooth movements. Together with oil shock, showing high driving performance in all terrain such as mud, rock, hill and etc. and with that impact stable running is possible to help delicate controlling.

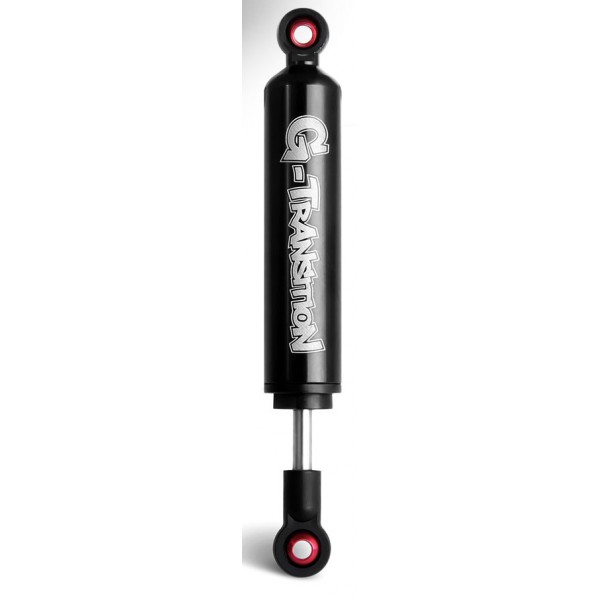

G-TRANSITION ALUMINUM SHOCK ABSORBER

G-Transition shock is Internal spring oil filled shock absorber. Highlighted the durabilities of the shock using aluminum shock body with a 3.5mm heavy duty shock shaft for hardcore offroad driving.
This shock produces smooth shock actions because of oil filled shock absorber and it is designed to make a big shock-stroke even though it has short length of shock, and it offers a lot of wheel travel to pass through the hardcore offroad driving track conditions.
Can lower the ride height by droop setup so it helps to pass down in course such as hill climb, big angle rocky-mount in stable position, also reduce the interference of the tire and fender without lifting the body in stock body position.

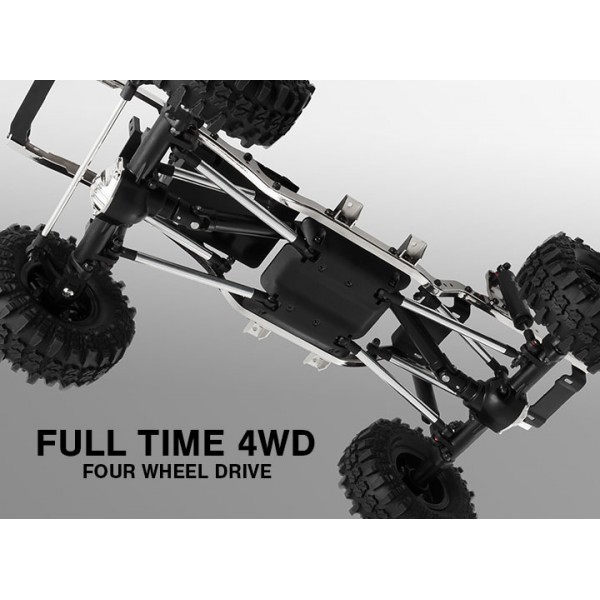

FULL TIME 4WD FOUR WHEEL DRIVE

ONE-PIECE GRAPHITE AXLE HOUSING

Axle housing is made of high strength plastic material and designed as a one-piece for maximum durability and easy maintenance.

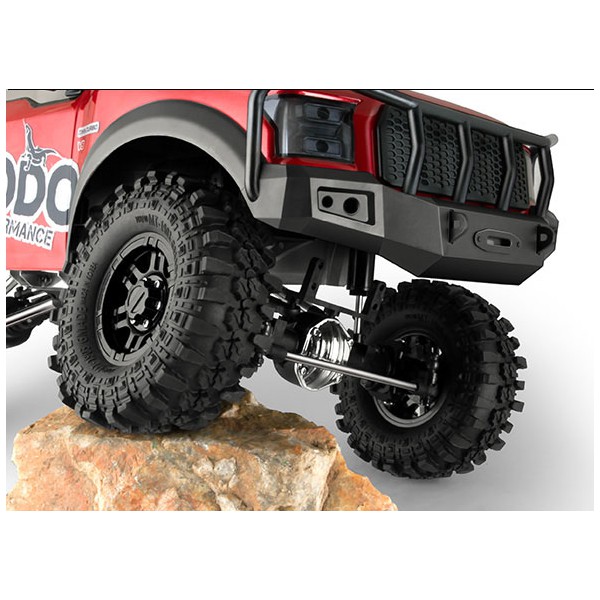

METAL DIFFERENTIAL COVER

The Axle has been designed to feel as a real car axle and glossy metal differential cover highlights more details.

SOLID DIFFERENTIAL GEAR

Both front and rear axles have solid differential gears to provide stronger driving force in any driving conditions.

DUST PROOF TRANSMISSION

Various gear ratio in all situation increases the vehicle's driving ability and transmission housing protects the internal gears with superb dustproof functionality. Easy to adjust the gear ratio and the backlash by using removable dust cover.

BALL BEARING

Included Ball bearings in every rolling components minimize
the load on drive train as well as conveying the driving force smoothly.

UNIVERSAL SHAFT

Universal shafts are designed to convey maximum torque of powerful motor as well as tire tractions through locked differentials that also respond to perfectly smooth motion without loss of power to the front & rear axles

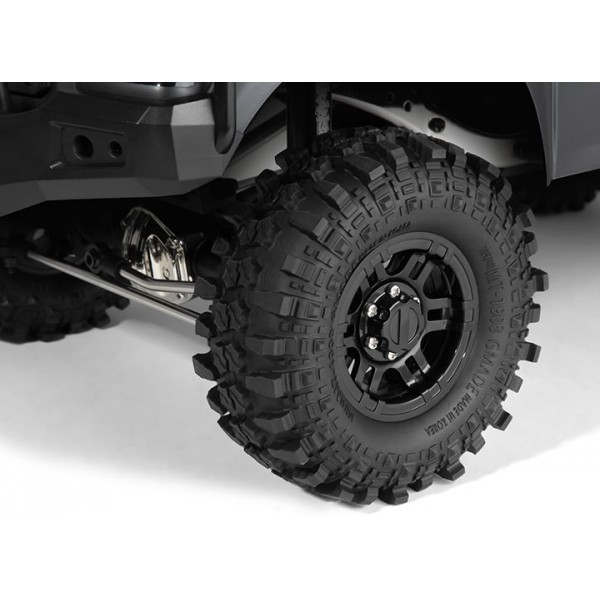

MT-1903 1.9 INCH M/T OFF-ROAD TIRE

MT 1903 off-road tire made of super soft compound material provides high traction to the surface.
The treads of tire pattern are suitable for off-road driving and are designed with large diameter that enables to run smoothly on any uneven road surface.
SPEC
Tire Height: 109mm (4.3") Tire Width: 40mm (1.6") Inner Diameter: 48mm (1.9")

NR02 1.9 INCH BEADLOCK WHEEL

NR02 beadlock wheels made of material of high strength plastic give long-lasting strength and its design generates realistic scale look of the vehicle.SPEC
Width : 23mm Diameter : 48mm (1.9inch) Offset: 1 mm Negative offset Hex mount : 12mm

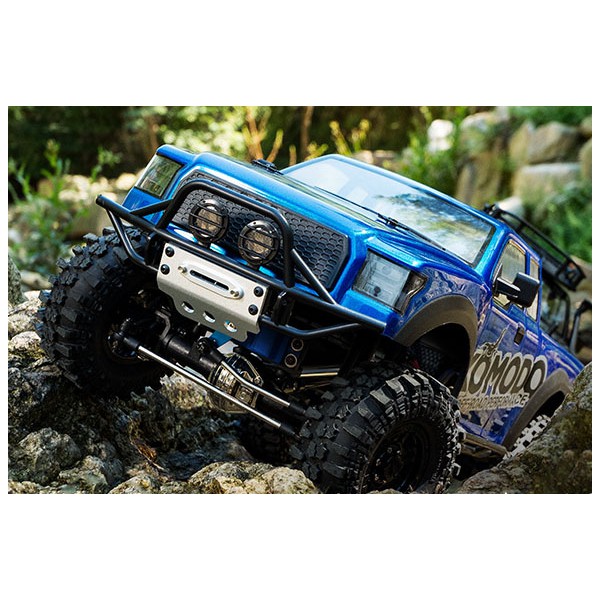

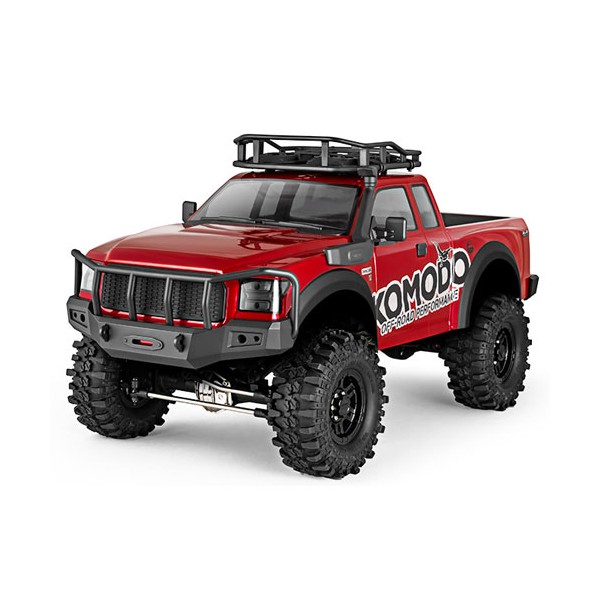

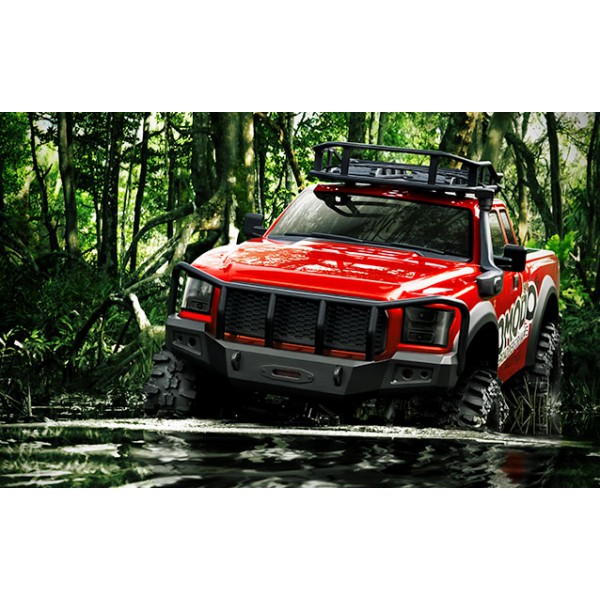

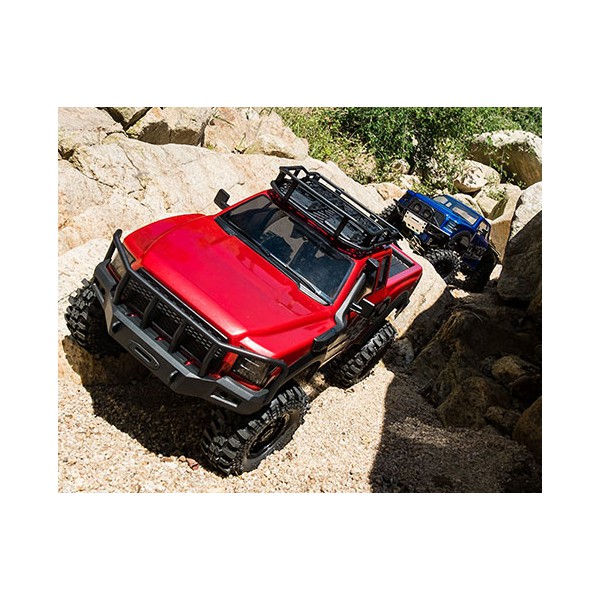

KOMODO PICKUP TRUCK BODY

Komodo body is made of 1.5mm thick high quality lexan and designed in pickup truck platform came out with strong and stylish detail body.
Included front grille, light bucket, mirror, door handle, wiper grille make more details to the body, also scale accessory parts such as snorkel, bumper, roof rack, sand ladder, hook, shovel match with offroad adventure concept and make more realistic offroad truck.

• Width : 236mm
• Height: 247mm
• Height (with out roof rack) : 215mm
• Length : 506mm
• Wheel base : 287mm
• Ground clearance : 65mm
• Weight (no electronics) : 1.9 kg

• Radio system
• Motor
• Servo
• 7.2 V battery
• Speed controller
