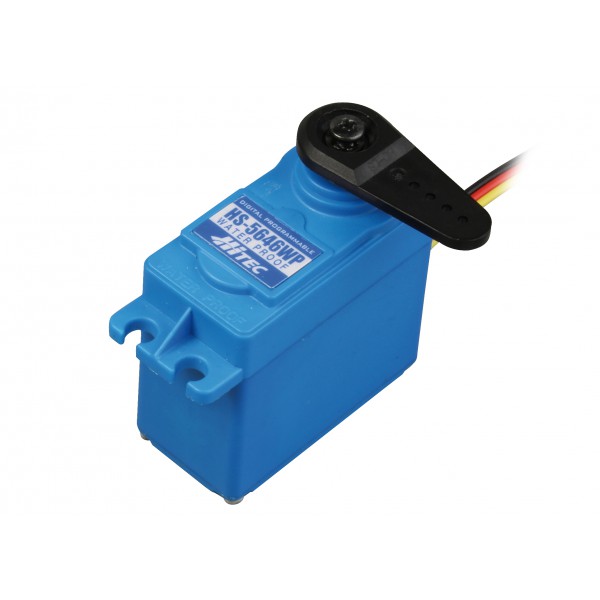

Servo HS-5646WP

Waterproof servo of ≥ 23 mm Class

The waterproof, standard digital servo is tested according to industry standard IP67. The HS-5646WP servo offers what it should: it is 100% waterproof, unprecedented durability thanks to the exclusive metal gears with two ball bearings on the output shaft, which is particularly suitable when low clearance and high positional accuracy are important.
The programmable servo HS-5646WP delivers maximum performance with low weight and is using this information certainly a favorite for industrial applications. The long life and the uniquely designed gearbox making it one of the most reliable and efficient digital standard servo on the market.

The waterproof HITEC Servo HS-5646WP is ideally suited for applications in the marine and submarine model.

• Width : 21 mm
• height : 40 mm
• length : 42 mm
• Weight : 0.061 Kg
• servo Type: Standard
• Features: Wide Voltage Digital
• Engine type servos: brushed
• Transmission: metal
• operating voltage in V: 4.8 to 8.4 V
• operating time s / 60 ° at 4.8 volts: 0.2
• setting time s / 60 ° at 6.0 volts: 12:18
• torque in kgcm at 4.8 volts: 12
• torque in kgcm at 6.0 volts: 13
• teeth: 24T
• bearings: Yes
• Waterproof: Yes
• flight Holiday No
• Recommendation Heli: No
• recommendation Car: Yes
• Recommended boat: Yes
