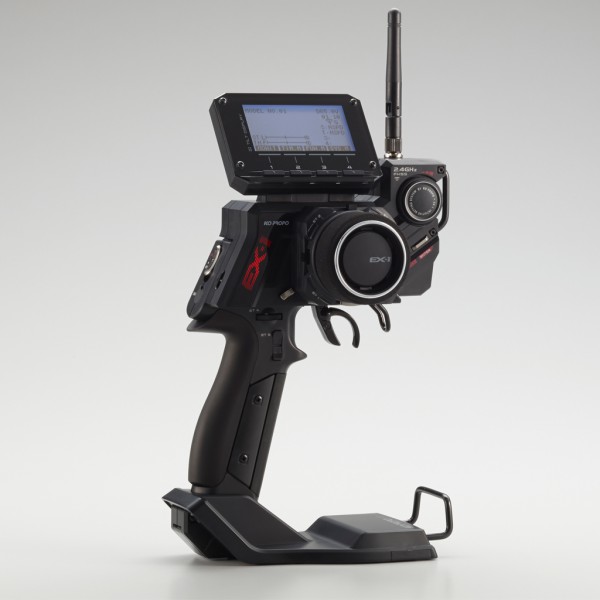

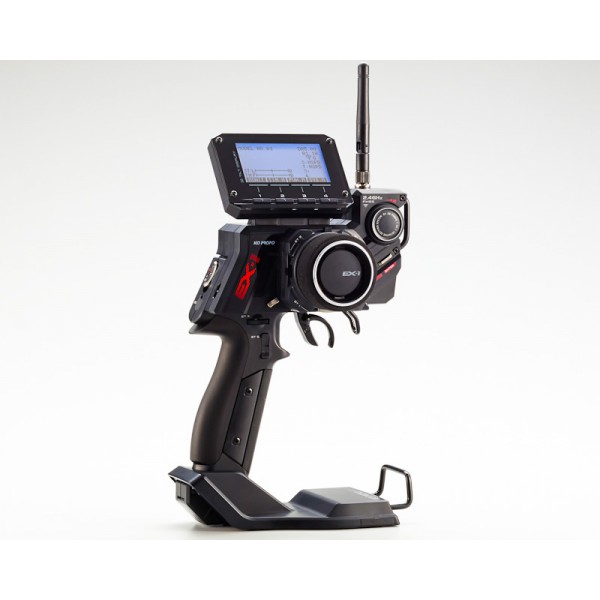

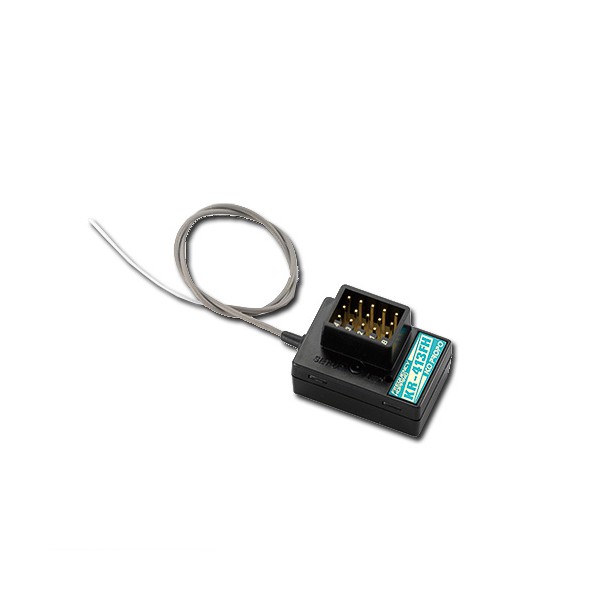

EX-1 Ver 3 (KIY) KR-413FH Set - TX + RX

The name EX-1 comes from the World-first Wheel & Trigger type radio of ours
EX-1 radios have been in the hands of many drivers who took many race titles.
Now the EX-1 has been renewed with new technology and the K.I.Y concept.

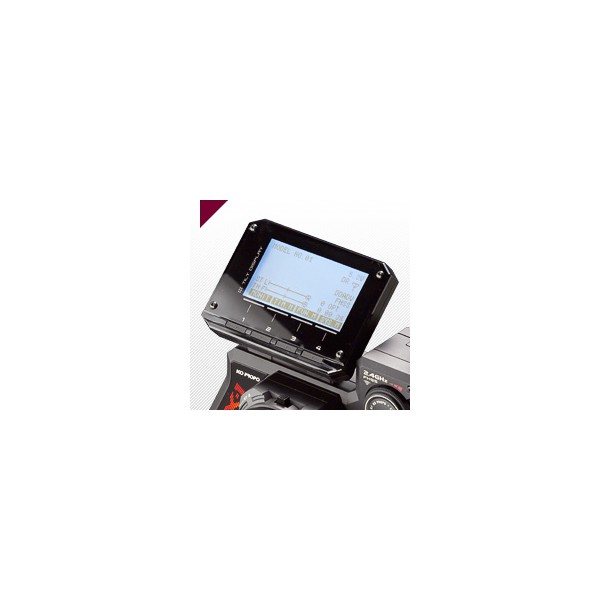

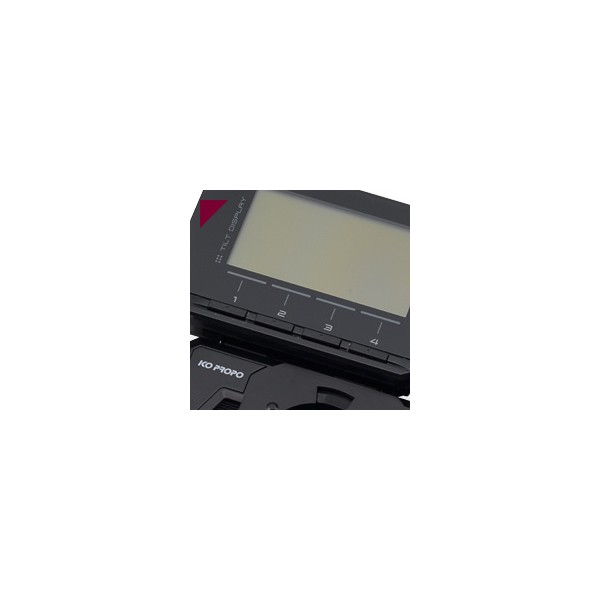

High performance CPU &2.7inch LCD

Adopting a new CPU that is 20% faster than our previous system. The 16bit processor inside this master unit allows quick data processing and securely performing delicate control. The large size LCD allows various function configurations at a quick glance.

Expert grip

Optimum feeling for the driver is offered with the new trigger enlargement for a more effective stroke and ergonomic design which allows a high dimension of delicate throttle work.

40 model memory

EX-1 provides a large capacity model memory that can hold data for up to 40 cars.

KIY CONCEPT

KO PROPO introduces the Patented Kustomize It Yourself (K.I.Y.) an interchangeable transmitter. The concept of the new K.I.Y. brings simplicity to customizing and upgrading within a modular system. The new transmitter is composed of 3 modular units: Steering, Throttle and Master units. The three separate modular units can be easily put together, no screws required. Just push the safety lock of the joint, pull the lever and pull or push to insert or remove the modular unit. It’s that simple! You can use the K.I.Y. to unlock your next system and bring more enjoyment to your hobby. US Pat No. 8,845,386 B2

EX-1 KIY Ver.3 Highlights​

Expert Grip
The grip pad 2 equipped with the Expert Grip provides new hold feeling.
Optimum feeling for the driver is offered with the new trigger enlargement for a more effective stroke and ergonomic design which allows a high dimension of delicate throttle work.
There is no modification to the Master Unit software from Ver.2.
Customers with previous versions can use the expert grip unit or grip pad 2.
The 'Expert Grip' can be utilized with any of the current master units.

Settings

Model:
Select, Name, Copy, Reset

Steering:
Trim, Travel, Balance, SubTrim, TrimRate, TurnSpeed, ReturnSpeed, Punch, Curve, Reverse, Travel Override

Throttle:
Trim, Point, Brake, SubTrim, TrimRate, TurnSpeed, ReturnSpeed, Punch, Curve, Reverse, DragBrake, Brake Override, ABS, Accel, AutoStart, IdleUp

3/4ch:
2WAY: 2 positions setting
3WAY: 3 positions setting
5WAY: 5 positions setting
ANALOG: 25 steps and end position setting
4WS MIX: NORMAL, REVERSE, F STEER, R STEER
AMP MIX: NORMAL, BURN, DIG, F HOLD, R HOLD
T-MIX: Brake setting

QuickSetup:

Timer:
StopWatch, DownTimer, LapHistory

Function:
Monitor, LEDcolor, BackLight, Contrast, SoundVol, Buzzer, KeyRepeat

System:
Response, Setup, DirectBT, Steering AdjustVR, Throttle AdjustVR, OP-Timer, 2.4GBand, PowerManagement, AllReset, ICS
