60-Amp Pro Switch-Mode BEC Brushless ESC (V2)

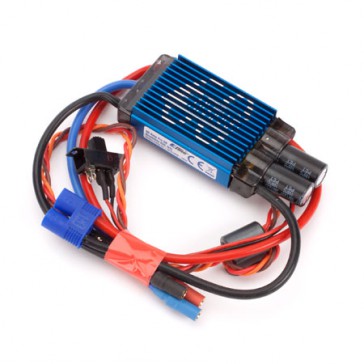

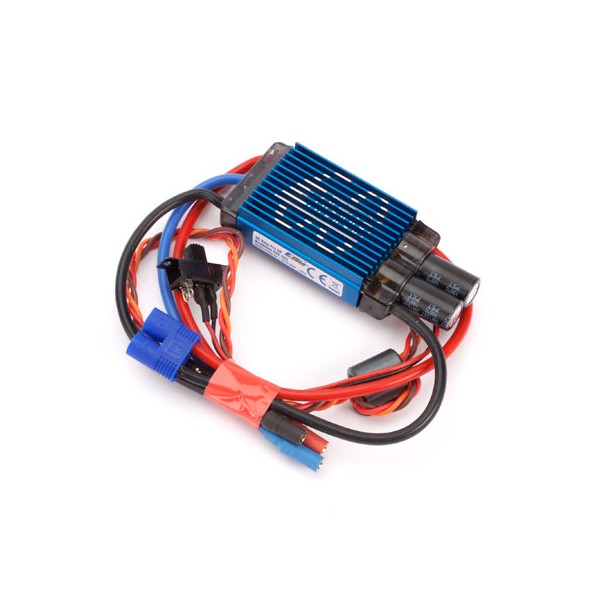

E-Flite 60-Amp Pro Switch-Mode BEC Brushless ESC (V2)

Meer details

Fabricant : E-Flite

Referentie: EFLA1060B

Voorraad status: Beperkte voorraad bij onze leverancier. Levering binnen 4 tot 7 dagen, onder voorbehoud.

Verzendkosten vanaf 6.99€
of gratis afhaling in de winkel. .

MCM prijs : 109,99 €

Hoeveelheid: Maximale hoeveelheid bereikt

Houd mij op de hoogte van beschikbaarheid

Meer informatie
Belangrijke kenmerken
Specificaties
Productgegevens

Meer informatie

The E-flite® 60-Amp Pro Switch-Mode BEC Brushless ESC (V2). This is a high-quality sensorless brushless electronic speed control with an integrated switch-mode BEC that is very lightweight and efficient. It can operate without the need for a separate receiver battery to power your servos and receivers, saving you weight and complication.

Belangrijke kenmerken

Up to 60 amps continuous current with proper air flow and 75 amps burst current (15 seconds)
5A continuous current, 5V switch-mode BEC circuit (proper cooling and airflow required)
Stronger BEC for support of most 3-axis stabilization systems
Drive up to 7 analog or 6 digital standard-sized servos with the BEC on any recommended input voltage
3- to 6-cell Li-Po, 9- to 18-cell Ni-MH/Ni-Cd input voltage
Finned heat sinks
Programmable motor braking
Safe power-arm mode prevents accidental starts
Programmable low voltage cutoff with settings for 3-cell Li-Po (9V), 4-cell Li-Po (12V), 5-cell Li-Po (15V), 6-cell Li-Po (18V) or 74% of battery starting voltage
Programmable throttle input range (1.1ms–1.9ms or 1.2ms–1.8ms)
Programmable soft start for helis and airplanes
Auto motor shut down if signal is lost or there is interference
Programmable timing—5 user-selectable ranges for use with a large variety of brushless motors
Utilizes new smaller MOSFET technology to minimize weight
Radio system power on/off switch
Pre-wired connectors—E-flite® EC3™ connector on battery input and 3.5mm gold bullet connectors on motor output leads

Specificaties

Continuous Maximum Current:	60A
Input Connector Types:	13 AWG with E-flite® EC3™ connector
Output Connector Types:	13 AWG with 3.5mm gold bullet connectors
Momentary Peak Current:	15 sec @ 75A with proper cooling air flow
Length:	2.85 in (73.0mm)
Width:	1.30 in (33.0mm)
Height:	0.61 in (15.5mm)
Weight:	2.65 oz (75.0 g)
Cells w/BEC:	3–6S Li-Po or 9–18 Ni-MH/Ni-Cd

Productgegevens

Fabrikant : E-Flite
