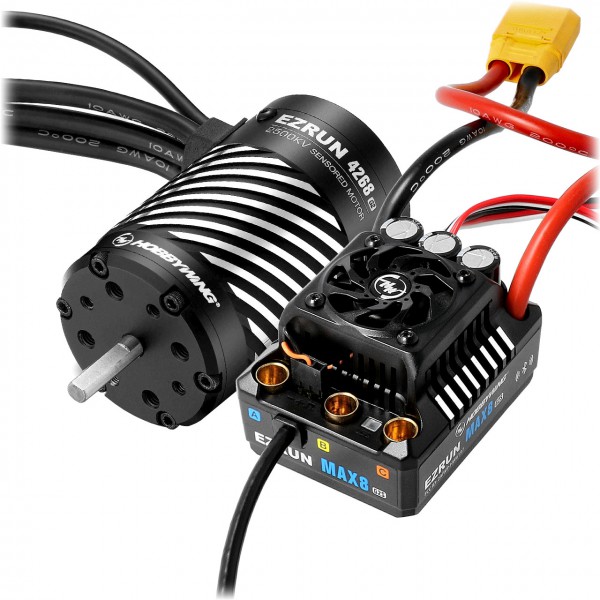

Ezrun MAX8 G2S Combo with 4268SD 2500kV

Hobbywing brushless Combo EzRun Max8 G2S ESC & 4268SD-Kv2500 Motor

Meer details

Fabricant : Hobbywing

Referentie: HW38020375

Voorraad status: Beperkte voorraad bij onze leverancier. Levering binnen 2 dagen, onder voorbehoud.

Verzendkosten vanaf 6.99€
of gratis afhaling in de winkel. .

MCM prijs : 213,99 €

Hoeveelheid: Maximale hoeveelheid bereikt

Houd mij op de hoogte van beschikbaarheid

Meer informatie
Specificaties
Productgegevens
Samenstelling van de kit

Meer informatie

About EzRun Max8 G2S ESC

Extreme output, easy to control

The ESC has power, yet smooth and linear throttle response.

Optimized hardware, increases in stability and reliability
Based on the MAX8 G2 ESC, the brand new G2S ESC is equipped with optimized hardware design application such as intelligent freewheeling technology. The stability and reliability of the ESC has been further improved.

Built-in Bluetooth, directly connected to the mobile APP

The ESC has a built-in Bluetooth module. It allows you to connect to the mobile APP directly without plugging any device. It is simple and convenient to perform parameter settings, data reading, firmware upgrades other operations.

Built-in data logging function, ease of obtaining power operating status

The ESC has a built in data rcoerding module. Store up to 10 minutes of your most recent run. Using the HW Link V2 App, you can view the data saved to the ESC. In addition, the module allows you to view Real Time Data from the ESC for bench top testing and viewing of the data outputs.

Fan intelligent start and stop function

The ESC fan does not run when the ESC temperature is low.The fan automatically turns on when the
ESC temperature reaches the preset value. The intelligent start and stop function of the fan not only
reduces noise, saves power, but also ensures that the ESC works in a good temperature range

Efficient cooling system

A frameless fan with patented technology is used.
The large flow of air from the side of the fan effectively blows the heat away from the integrated housing radiator to ensure that the ESC is always in the optimal operating temperature.

High level of protection

Excellent waterproof and dust-proof performance IP67
Cope with harsh environments, various climate conditions all-weather operation capabilities

1/8th power system turbo timing technology

Turbo timing that is adjustable up to 32 degrees.
Using turbo allows motor RPM to be increased through advanced ESC electronic timing.

Capacitor overheating protection

The Capacitor protection prevents damage to the power caps from overheating from overloads or extreme conditions. This protects the ESC from damage.

Super Buily-in BEC

Max current ouptput up to 15 A
The output voltage can be switched in three levels of 6V/7.4V/8.4V

The built in super BEC allows builders to use high power, high voltage servos.

Waterproof Sensor Harness

The proven Hobbywing waterproof sensor harness provides an element proof solution for sensor based systems.
Using a Hobbywing Adaptor (optional) normal/standard sensor motors can be used as well.

About EzRun 4268SD motor

Fully sensored mode High power

The EZRUN series of motors are known to be dynamic and dominant. They are built differently to meet the needs of various demands on the market. It has a strong output power with an excellent linearity at low speed and is operating on full-sensored mode.

A perfect combo with the EzRun MAX8 G2 ESC

The motor achieves perfect compatibility when used together with the EZRUN MAX8 G2 ESC.
It provides ultra-large torque, precise handling performance, and brings a smooth and comfortable control experience to the users.

High quality materials and excellent product design

The materials (Motor casing, bearings, ultra-thin silicon steel sheets, high temperature-resistance copper wire, explosion-proof rotor, high-tolerance alloy shalf) are carefully selected and approved by our in-house engineers.
Hobbywing is serious in providing users with an extraordinary performance for a long period of time.

Applicable to All Weather Track Conditions

The IP-67 waterproof system guarantees excellent waterproofing and dustproofing protection.
The whole power system is able to drive on a variety of surfaces including muddy, sandy, icy, snowy and water without damaging the power unit.

New sensored cable interface

Equipped with a new type of sensored cable interface.
It is high recommended to use the motors from Hobbywing as the waterproof protection level is at the highest level (IP67).

Practical design for easy disassembly and maintenance

The motor adopts a modular detachable structure design for easy disassembly and daily maintenance. This helps to prolong the lifespan of the motor and maintaining the efficiency of the motor is simple.

Specificaties

Contrôleur EzRun Max8 G2S

Type	Scale	1/8^th

	Brushed/Brushless	BL

	Sensored/Sensorless	SD

	Waterproof	Yes
Specifications	Cont./Peak Current	160A/1050A

	Input Voltage	3-6S Lipo

	BEC Output	6V / 7.4V / 8.4V adjustable, continuous current 6A (Switch-mode)
Wires & Connectors	Input Wires	Black-10AWG-150mm*1 Red-10AWG-150mmX1

	Output Wires	NO

	Input Connectors	XT90

	Output Connectors	6.5 Bullet Connectors (Female)
ESC Programing via	SET Button on ESC	Not Supported

	LED Program Box	Not Supported

	LCD G2 Program Box	Not Supported

	LCD PRO	Not Supported

	OTA Programmer	Not Supported

	Program Port	Built-in Bluetooth
Fan	Size	30x30x10mm

	Voltage Range	6V/7.4V/8.4V

	Powered by	BEC
Data Recording	Extreme value	Supported

	Real-time Data	Supported

	Historical data (Graph)	Supported
Firmware	Firmware Upgrade	Supported
Size & Weight	Size	604840.5mm40.5mm

	Weight	192g(w/Wires)

Applications	Motors	Sensored brushless motors / Sensorless brushless motors

	Vehicles	1/8^thOn-road, Short course truck, Monster truck

	KV Rating/T Count	With 4S Lipo: KV≤3000;

		With 6S Lipo: KV≤2400 4278 size motor

Moteur EzRun 4268SD Kv 2500

Type	Scale	1/8^th

	Brushed/Brushless	BL

	Sensored/Sensorless	SD

	Pole Count	4
Relevant Parameters	KV Rating	2500KV

	LiPo Cells	3-4S

	No-load Current(A)	4.8A
Size & Weight	O.D.(mm)	42

	Length (mm)	68

	Shaft Diameter (mm)	5

	Connectors (mm)	6.5(male)

	Weight (g)	355g

	Front Bearing	D16D5T5

	Rear Bearing	D11D5T5
Other Parameters	Applications	1/8^th Buggy，1/8^th Heavy-duty Monster Truck

Productgegevens

Fabrikant : Hobbywing

Samenstelling van de kit

Ezrun MAX8 G2S ESC
EzRun 4268SD 2500kV Motor
