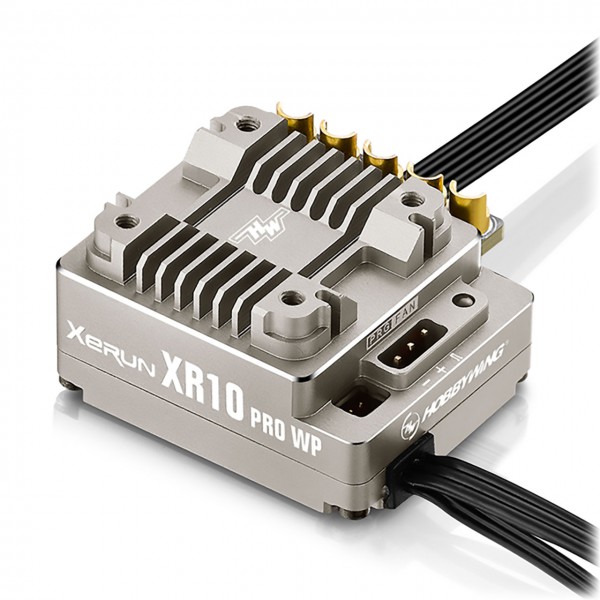

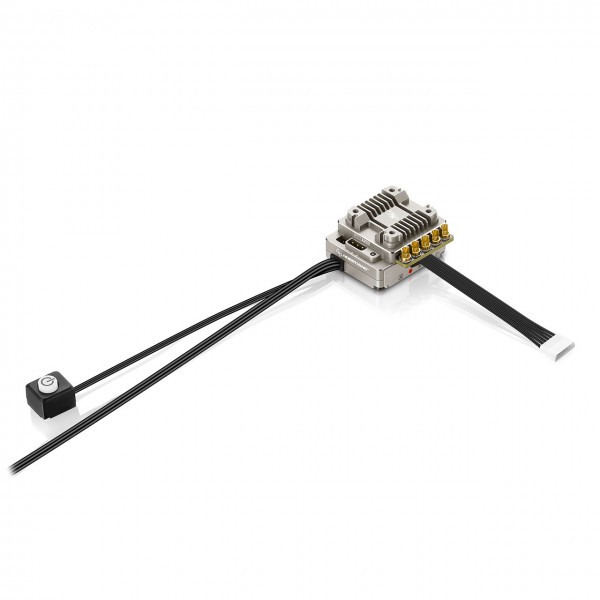

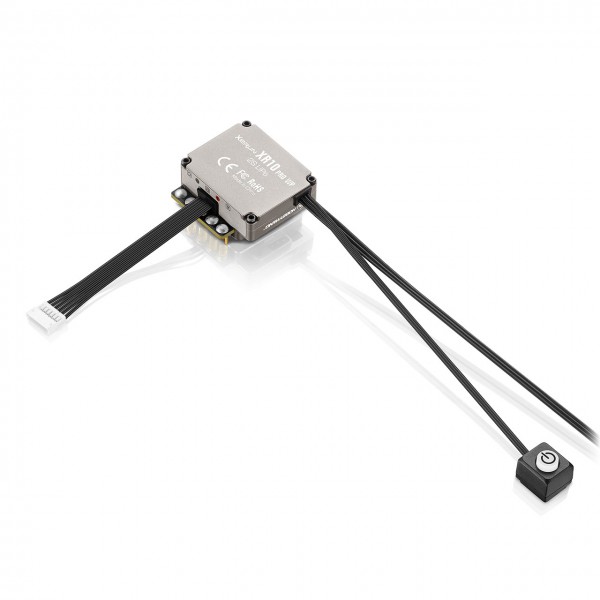

Xerun XR10 Pro WP Brushless ESC 160A, 2s LiPo

Volledige grootte weergeven

Elektronica Brushless Snelheidsregelaars Elektronica & Motoren

Xerun XR10 Pro WP Brushless ESC 160A, 2s LiPo

Hobbywing Xerun XR10 Pro WP Brushless ESC 160A 2s LiPo

Meer details

Fabricant : Hobbywing

Referentie: HW30112618

Voorraad status: Beperkte voorraad bij onze leverancier. Levering binnen 2 dagen, onder voorbehoud.

Verzendkosten vanaf 6.99€
of gratis afhaling in de winkel. .

MCM prijs : 213,99 €

Hoeveelheid: Maximale hoeveelheid bereikt

Houd mij op de hoogte van beschikbaarheid

Meer informatie
Specificaties
Productgegevens

Meer informatie

IP67 protection, all-weather operation

The new XR10 Pro-WP is able to easily handle conditions, from rain, dust, and sand with a proven waterproof and dust-proof design that is exceeds IP67 industrial standards.

Built-in reverse polarity protection circuit

The ESC has built in reverse voltage protection.
This ensures the ESC will be protected from accidental cross connection of the battery.

Note
The reverse polarity protection of the entire power system can be achieved only by using the non-polarity capacitor sold as an option.
The standard capacitor of the ESC does not have this protection.
Reverse connection of the battery will damage the capacitor, but the ESC should not be damaged. Replacement of the capacitor is needed immediately.

Smart Fan start & stop function
The fan does not run when the ESC temperature is low.
The fan automatically turns on when the ESC temperature reaches the preset value.
The smart fan start&stop function not only reduces noise, saves power, but also ensures that the ESC works in the optimal temperature range.

Equipped with powerful core processor
The 32-bit M4 processor greatly improves the data processing capabilities of the ESC.
It not only allows the ESC to respond faster but is able to perform complexity and precise data calculations
It lays the foundation for subsequent ESC function upgrades and optimization. Professional competition-grade hardware combined with powerful software makes it a weapon global competition.

Adjstable Throttle curvature

New throttle curvature adjustments allow additional tuning of the throttle response.
With +10 curve, to -10 curve settings, and custom Curve allow drivers more options to get the perfect throttle feel.

Real-time data acquisition easy analysis
When connected to the OTA module, and using the HW Link V2 App, bench top live data can be monitored. You are able to view, Throttle, Voltage, Temperatures, and RPM in real time.
The ESC also supports additional data logs when operated with the OTA installed.
Data logs are saved to the OTA to be viewed after the run.

Use the OTA Module and your Phone/Tablet to Tune the ESC.
The OTA module allows you to connect to your ESC using the HW Link V2 app.
This allows ESC tuning and Firmware updates.

Built-in BEC supporting high-voltage servos
The ESC has a built in switch mode BEC rated up to 10 amps.
BEC voltage is adjustable from 5-7.4 volts. (0.1v steps)
The internal BEC is able to easily handle todays most power hungry servos.

Max Brake Tuning - 101%-150%
Active brake provides stronger brake force and ensures Stock/Spec class racing setups have enough stopping power.
Developed for the ESC brakes to handle very tall spec racing gear ratios that are commonly used.

Wide range of applications
Based on the flagship XR10 Pro series platform, it has strong output capability and is suitable for various Modify and Stock competitions in 1/10 on-road and 1/10 off-road.

Specificaties

Type	Scale	1/10^th
	Brushed/Brushless	BL
	Sensored/Sensorless	SD
	Waterproof	Waterproof
Specifications	Cont./Peak Current	160A/1200A
	Input Voltage	2S Lipo
	BEC BEC Output	Switch Mode 5V-7.4V @5A
Wires & Connectors	Input Wires	Black-13AWG-200mm*2
	Output Wires	Black-13AWG-200mm*3
	Input Connectors	No
	Output Connectors	No
Fan	Size	252510mm
	Voltage Range	5-7.4V
	Powered by	BEC
ESC Programing via	SET Button on ESC	Not Supported
	LED Program Box	Not Supported
	LCD G2 Program Box	Supported
	LCD PRO	Supported
	OTA Programmer	Supported
	Program Port	Separate Program Port
Data Recording	Extreme value	Supported
	Real-time Data	Supported
	Historical data (Graph)	Supported
Firmware	Firmware Upgrade	Supported
Size & Weight	Size	37.737.219.6mm
Size & Weight	Weight	95.6g(w/Wires)
Applications	Motors	Sensored brushless motors / Sensorless brushless motors
	Vehicles	1/10^th Touring car & Buggy racing, 1/10^th Drift,F1,Rally
	KV Rating/T Count	Touring Car: ≥4.5T Buggy: ≥5.5T

Productgegevens

Fabrikant : Hobbywing
