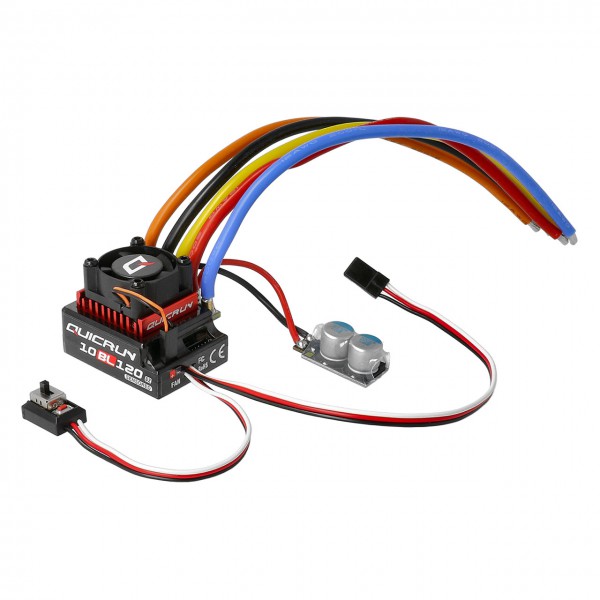

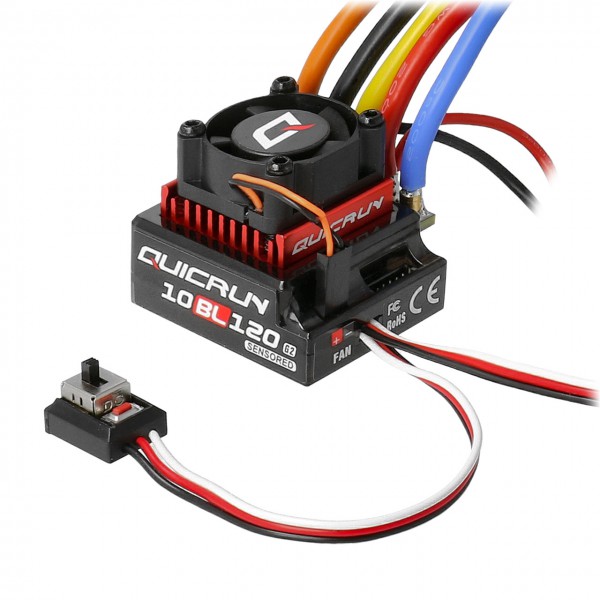

QuicRun 10BL120G2 120A Sensored ESC 2-3s

Hobbywing QuicRun10BL120 Sensored G2 ESC

Meer details

Fabricant : Hobbywing

Referentie: HW30125002

Voorraad status: Op voorraad bij onze leverancier. Levering binnen 2 dagen, onder voorbehoud.

Verzendkosten vanaf 6.99€
of gratis afhaling in de winkel. .

MCM prijs : 57,99 €

Hoeveelheid: Maximale hoeveelheid bereikt

Houd mij op de hoogte van beschikbaarheid

Meer informatie
Specificaties
Productgegevens

Meer informatie

Best value for money, Easy to use

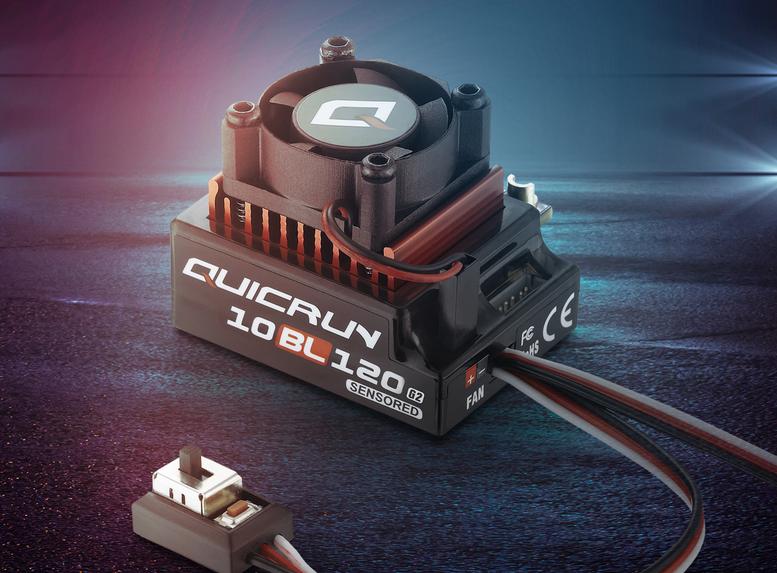

The new 10BL120 G2, takes the outstanding quality and durability of proven HOBBYWING platforms and makes it even easier to use and setup.

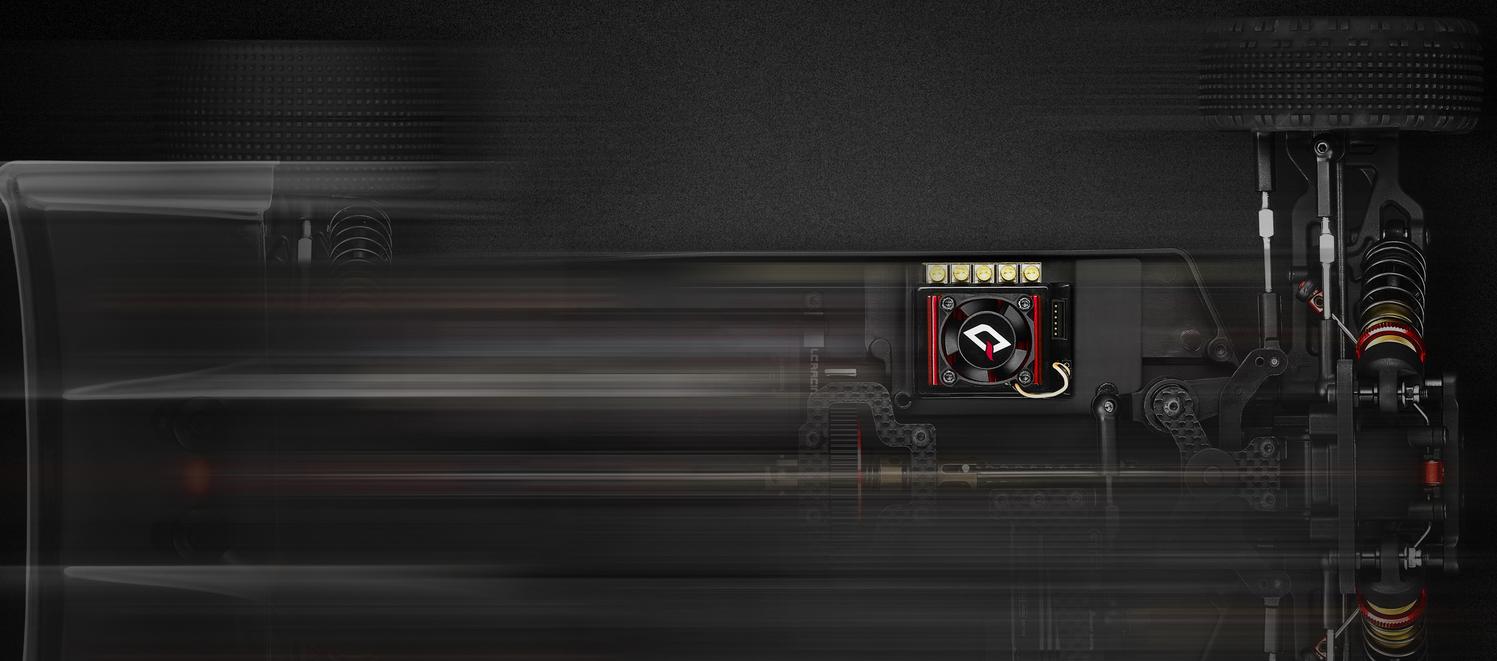

The perfect choice for 10th scale setups.

BEC upgrade, stronger driver

The BEC's continuous output current has been upgraded from 3A to 4A.
The maximum current is at 7A, and the output voltage is now 6V/7.4Vadjustable.
Hobbyist will be able to use high-voltage and powerful servos available on the market with greater control.

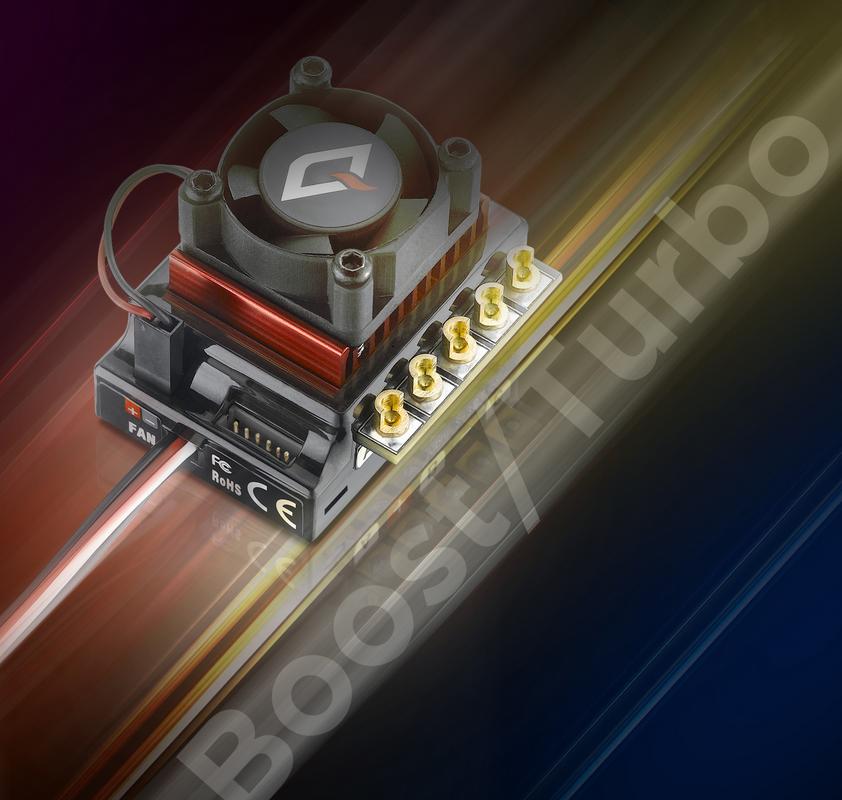

Boost/Turbo timing technology

The 10BL120 G2 features adjustable electronic timing.
Turbo and Boost can be used to fine tune power delivery and get the most out of your setup.
Up to 32 degrees of electronic timing is available.

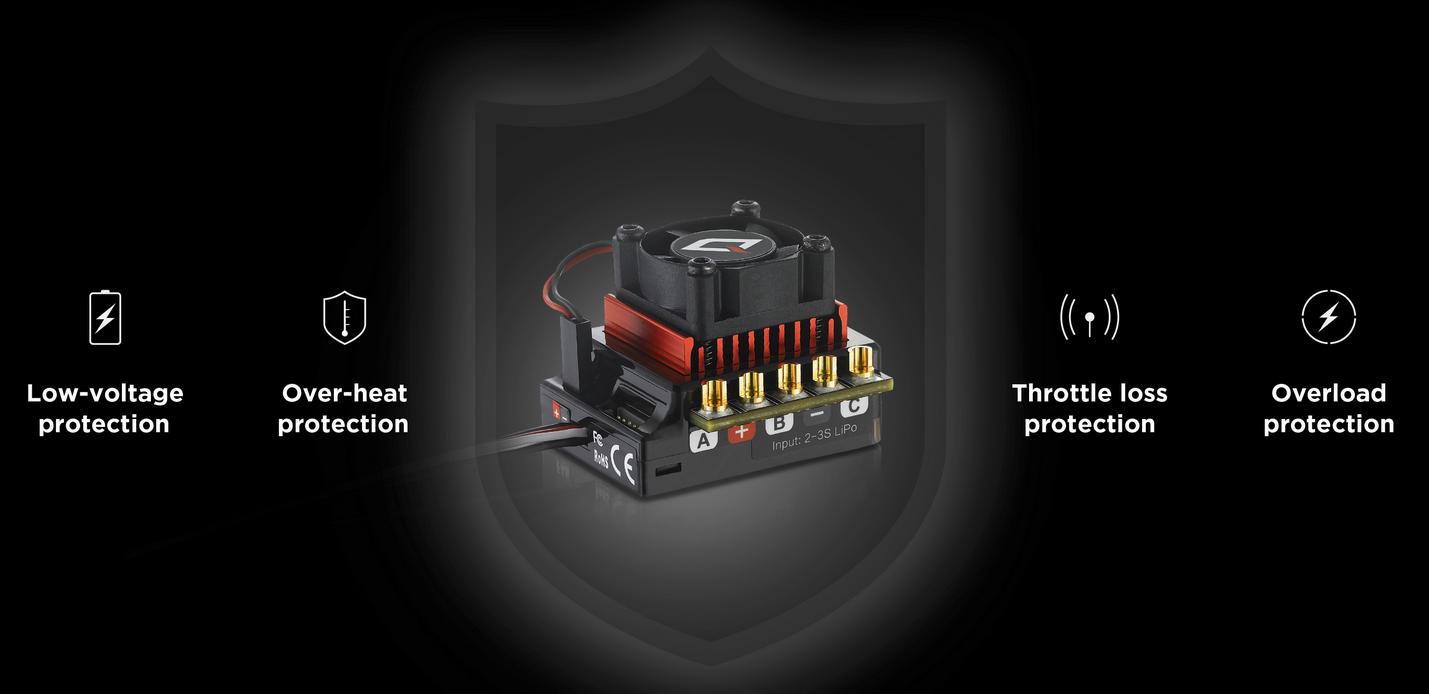

Combining software and hardware to provide comprehensive protection

The ESC is built using top of the line hardware, and proven software to provide a robust and reliable platform.

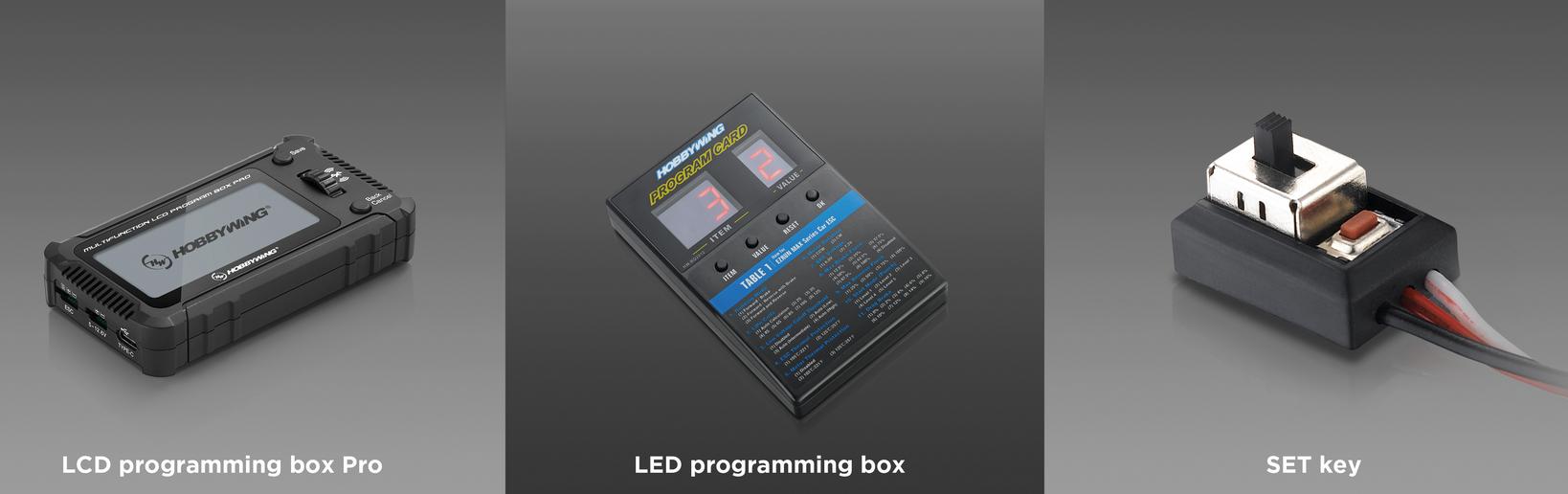

Abundance programming methods

Multiple programming/tuning methods are supported.
Works with the Multifunction LCD programming Box Pro,
The Multifunction LCD Programming Box (Non pro), the LED Programming Box, and has on board button/led tuning.

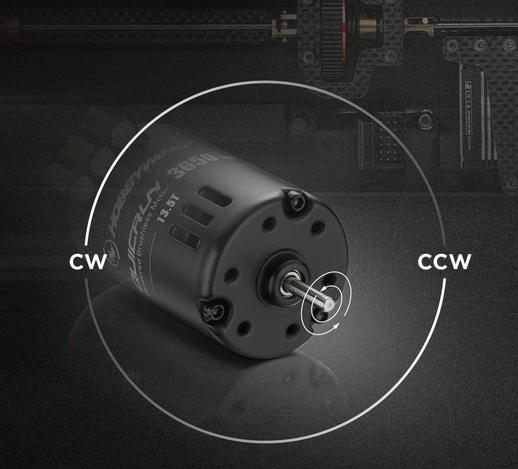

Supports Motor Rotation

The motor rotation is adjustable CW (clockwise) and CCW (counterclockwise), adapting to different chassis.

Specificaties

Product Name		QUICRUN WP 10BL120 G2
Product Number		30125002
Type	Scale Brushed/Brushless Sensored/Sensorless Waterproof	1/10^th BL SD No
Specifications	Cont./Peak Current Input Voltage BEC Output	120A/760A 2-3S Lipo Switch Mode 6V/7.4V @4A
Wires & Connectors	Input Wires Output Connectors Input Connectors Output Connecotors	Black-12AWG-200MMmm1 / Red--12AWG-200MMmm1 Blue-12AWG-200mm1 Yellow-12AWG-200mm1 Orange-12AWG-200mm*1 No No
ESC Programing via	SET Button on ESC LED Program Box LCD Pro Program Box OTA Programmer Program Port	Supported Supported Supported Not Supported Separate Program Port
Fan	Size Output Wires Input Connectors	25x25x10mm 5-8.4V Powered by BEC
Firmware	Firmware Upgrade	Not Supported
Size & Weight	Size Weight	4336.832.3mm 101.5g (Included wires&connectors)
Applications	Motors Vehicles KV Rating/T Count	Sensorless / Sensored Brushless Motor 1/10^th Touring Cars/Buggies/Drift Cars 2SLipo≥4.5T 3SLipo≥10.5T 3650 Size Motor
