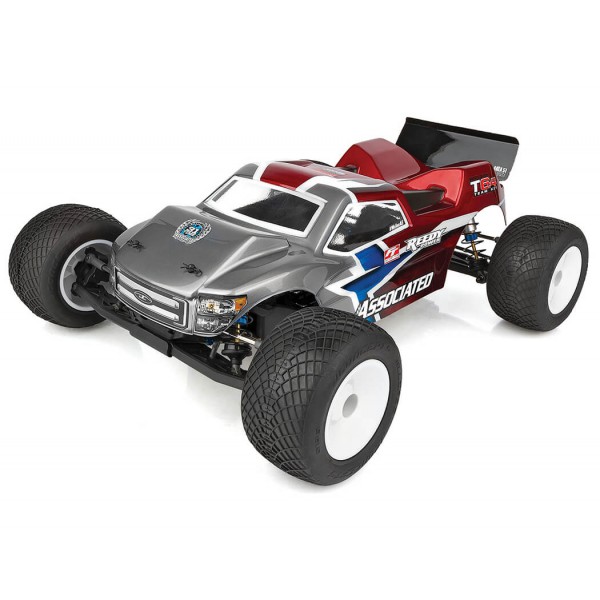

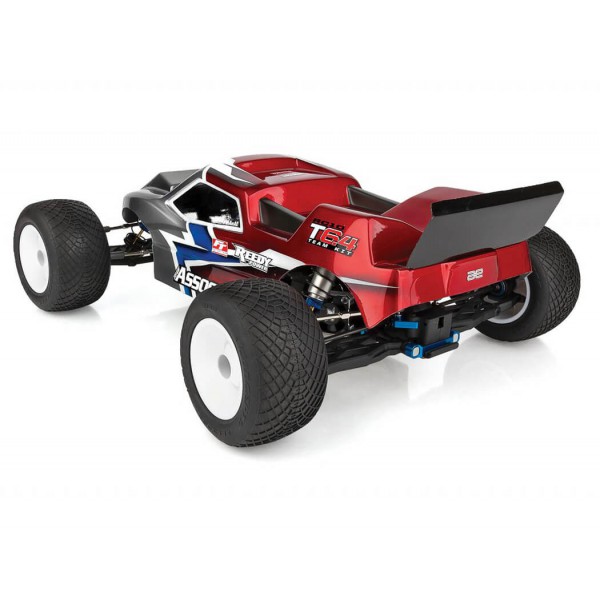

RC10T6.4 TEAM KIT

Champion by Design

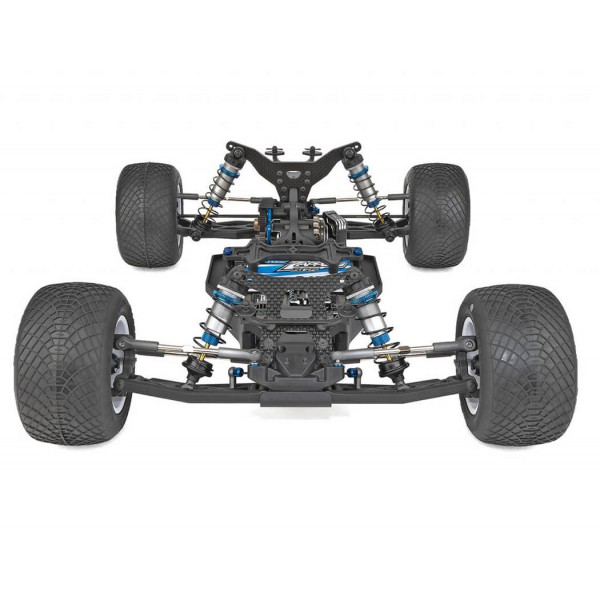

The RC10T6.4 shares key components with the RC10B6.4 and RC10B74.2 Team kits, making easier than ever to run multiple classes at the same time. Suspension and jumping goes through the large-volume 13mm big bore shocks with new truck springs.

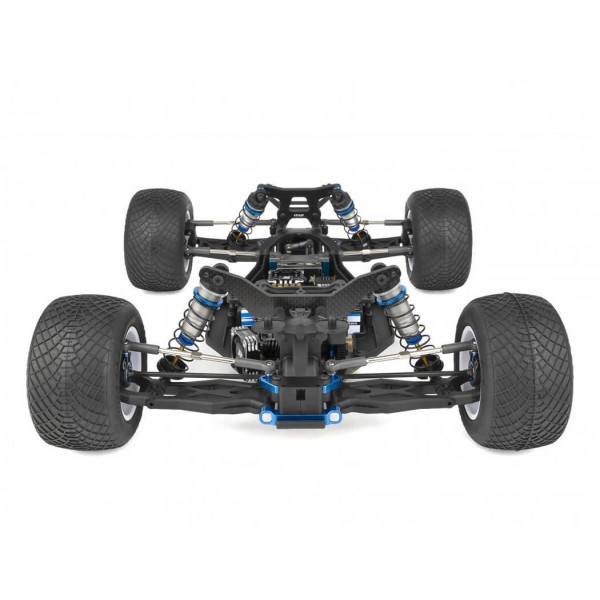

the new chassis design is a truck version of the RC10B6.4 buggy design and gets a new ballstud mount and top plate system with an angled steering for improved consistency. On top of that, racers can tune the steering height, axle trail and caster inserts for tuning the front end feel. The rear end grip is improved with the optional C and D mounts and 93.5mm CVA bones included in the kit. Suspension linkage rides on the new 3.5mm diameter rod ends and turnbuckles.

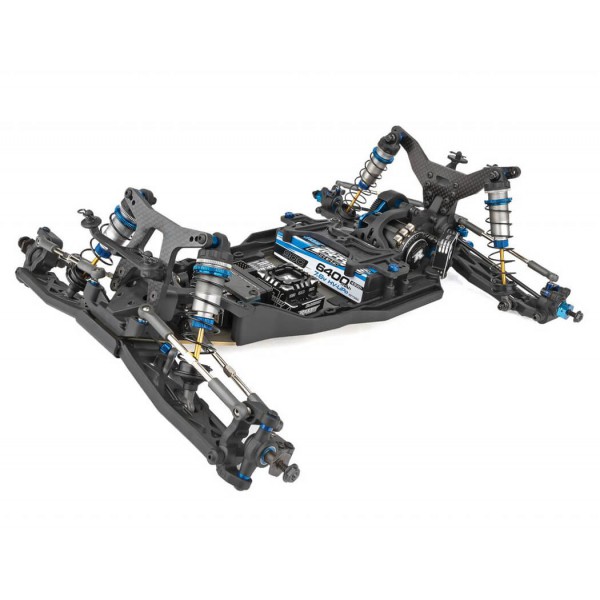

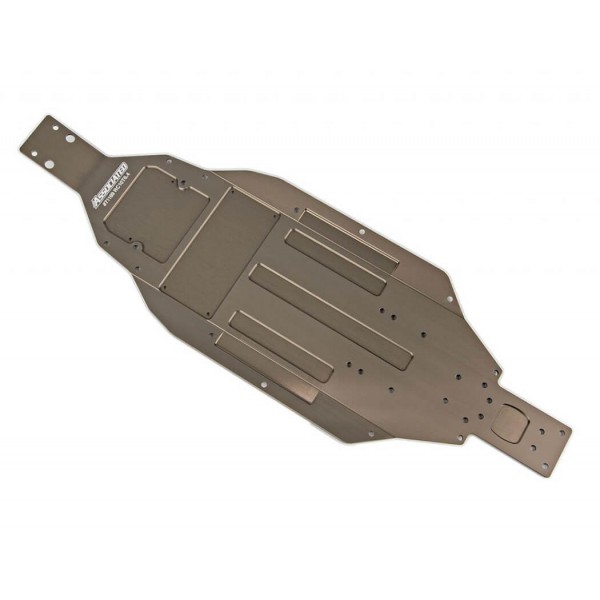

New truck length aluminium chassis

with 22.5° kick-up to complement update front-end geometry and with new shape

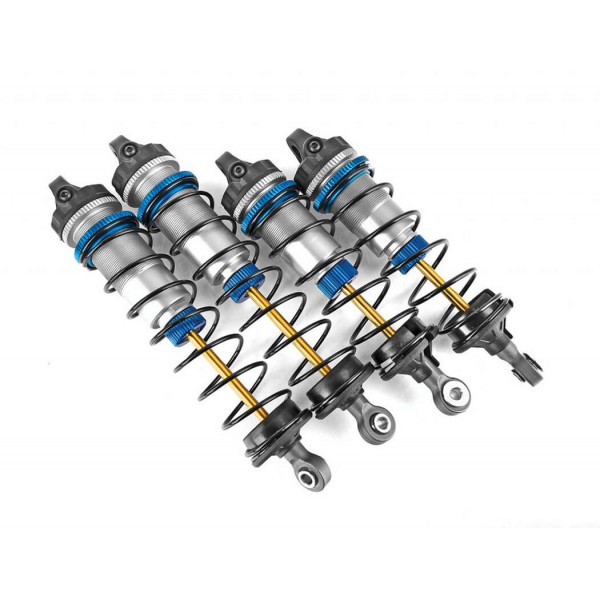

Big bore aluminium shocks

new 13 mm threaded aluminium shocks and springs with machined shock pistons

Heavy-duty ball cups

New 3.5mm heavy-duty ball cups and turnbuckles for maximum durability

Aluminium RC10B6.4 ESC

The ESC mounting tray shifted forward in the chassis and with a wider foot-print to fit electronics. resulting in a weight bias placed further forward

New chassis side rails

with the RC10B6.4 fan mount system

Improved gull wing

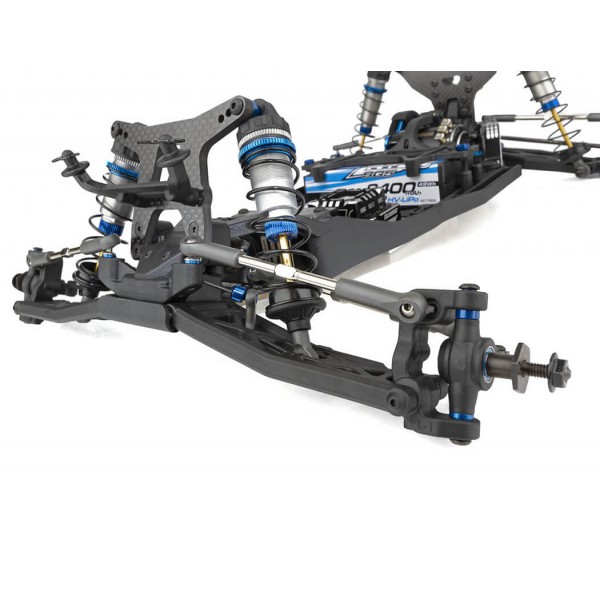

Gull wing front and rear arms and shock towers for improved high-traction handling

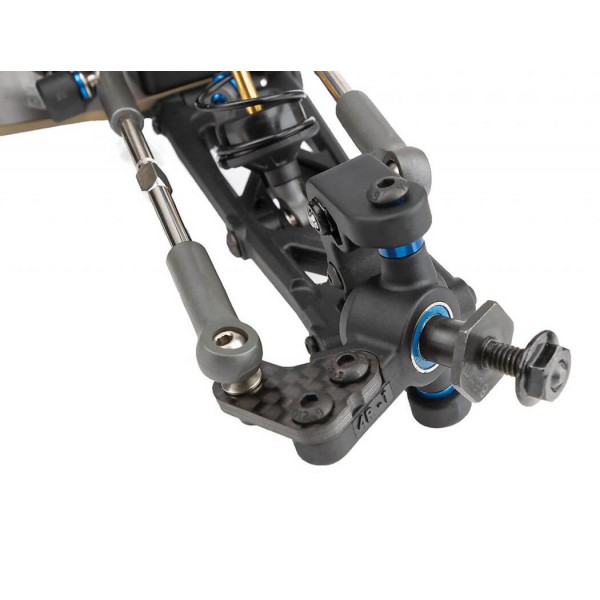

Smoother and more predictable steering

1mm kingpin offset steering and caster block set for smoother and more predictable steering through the entire wheel throw

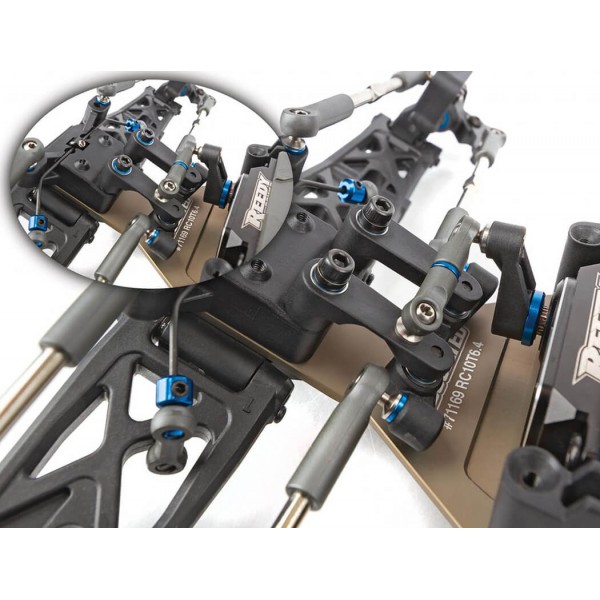

New angled mount

With adjustable height steering bellcrank and rack system for optimized bumpsteer and caster angles

different molded bulkheads

20°, 22.5° and 25° molded bulkheads included for a complete range of caster and kickup options

• New 13mm big bore threaded aluminum shocks and springs with machined shock pistons for improved bump and jump handling
• 13mm machined shock pistons, 2x1.6mm front and 2x1.8mm rear
• New front ballstud mount and top plate with angled steering system for improved steering consistency
• New 3.5mm heavy-duty ball cups and turnbuckles for maximum durability
• Updated rear suspension with wider C and D mounts from the RC10B6.4 series
• New longer 92.5mm CVA driveshafts for more rear grip
• 7.0mm blue aluminum rear clamping hexes with laser etching
• New chassis side rails with the RC10B6.4 fan mount system
• New truck length aluminum chassis with 22.5° kick-up to complement updated front-end geometry and with new shape to reduce chassis scrub with the track surface
• 20 deg., 22.5 deg., and 25 deg. molded bulkheads included for a complete range of caster and kickup options

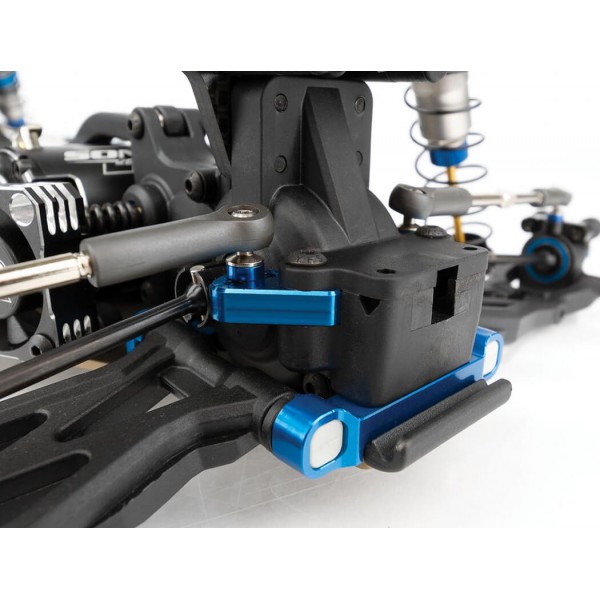

• B6.4 adjustable height steering bellcrank and rack system for optimized bumpsteer at all ride heights and caster angles
• B6.4 -1mm kingpin offset steering and caster block set for smoother and more predictable steering through the entire wheel throw
• Aluminum RC10B6.4 ESC mounting tray shifted forward in the chassis and with a wider footprint to fit electronics, resulting in a weight bias placed further forward
• Factory Team RC10B6.4 11g aluminum ESC tray

• 1:10 scale 540-size electric motor (Reedy Sonic line recommended)
• 1:10 scale electronic speed control (Reedy Blackbox AS27002, AS27003, AS27004, AS27005)
• 2-cell LiPo battery pack
• Battery charger (AS27203)
• 2-channel surface transmitter, and its batteries
• 2-channel receiver
• Steering servo (Reedy servo line AS27106, 27107)
• Pinion gear (48 pitch)
• Polycarbonate RC Truck body (AS71126)
• Spray paint for polycarbonate body
• 1:10 scale 12mm hex truck wheels (AS7852, 7853)
• 1:10 scale truck tires and foam inserts
• Cyanoacrylate (CA) glue for tires and wheels (AS1597)
• Thread locking compound (AS1596)

• Team kit
