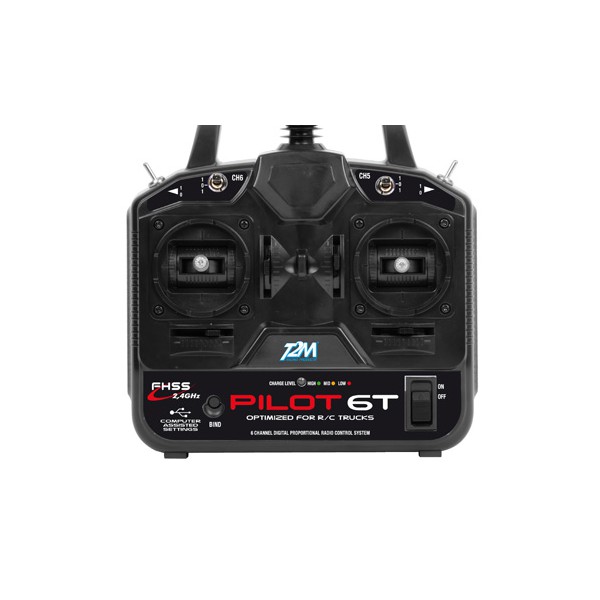

Pilot 6T

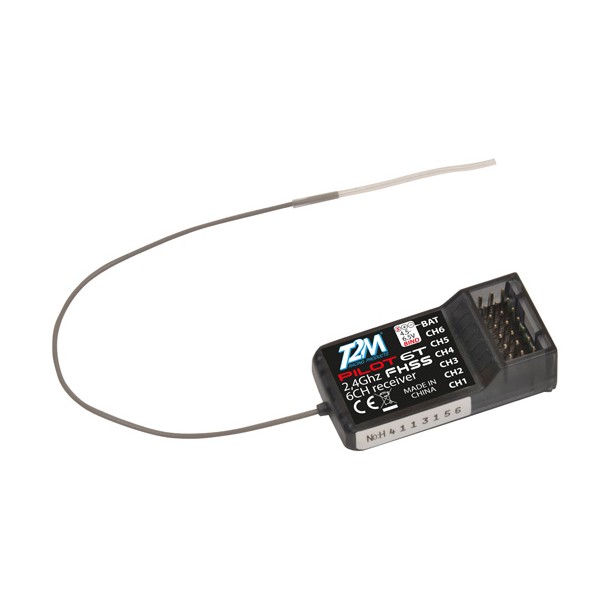

- 6 channel mini receiver / power supply 4.5V-6.5
- Radio power supply 8 AA or NI-MH batteries
- FHSS modulation
- Dual Rate (CH1, CH2, CH4)
- Channel inverters (CH1 to CH6)
- Limit switches (CH1 to CH6)
- Sub trim -120 to +120 (CH1 to CH6)
- Operating mode (1/2/3/4 mode without dismantling the radio)
- Mixing for aeroplanes, helicopters, .....
- Mechanical trims on CH1 to CH4
- Aluminium handles with adjustable length
- 2 switches 3 positions for CH5 and CH6
- Three-colour LEDs indicating the battery status of the radio
- FUTABA / GRAUPNER/JR type receiver connections
- Charging jack on the side of the radio
- USB cable for connection to a PC for SET UP of the radio. Free program to download from our website on the product page
- Possibility to replace the three-position switches by a two-position model or a potentiometer
- Ring for attaching a strap (not included)
- Carrying handle
- BIND cord included
- Compatible with TAMIYA MFC units

Configuration Utility :
It is possible to modify the configuration of your transmitter using the T6config program.
- Download the zip file from the link below.
Download the PilotT6 utility

- 1 Unzip the zip file on your desktop:
The PilotT6.zip file should be in your download folder. Right click on the Zip file. A vertical menu will open, select the 'Extract All' feature, and extract the data from the Zip file to your desktop.
At this point you should find a PilotT6 folder on your desktop. Open this folder.

- 2 Installing the remote control drivers :
Before launching the installation via the executable t6config.exe, you must install the remote control drivers. Open the 'Windows_2K_XP_S2K3_Vista' folder, then run "CP210xVCPInstaller.exe". When it is finished, install the 't6config.exe' application.

- 3 Installing the utility :
Simply double click on 't6config.exe' to install the utility. When the installation is complete, a T6config icon will appear on the desktop.

- Setting up the transmitter :
Plug the cord into the transmitter, then into a usb port. When the transmitter is recognised by the computer, a red LED will light up on the USB socket of the cable. If the LED does not light up, you need to install the transmitter drivers (see step 2)
Launch the utility by double clicking on the T6config icon on the desktop.

To learn how to use this utility, refer to the manual delivered with the transmitter, page 6 -> 13.
