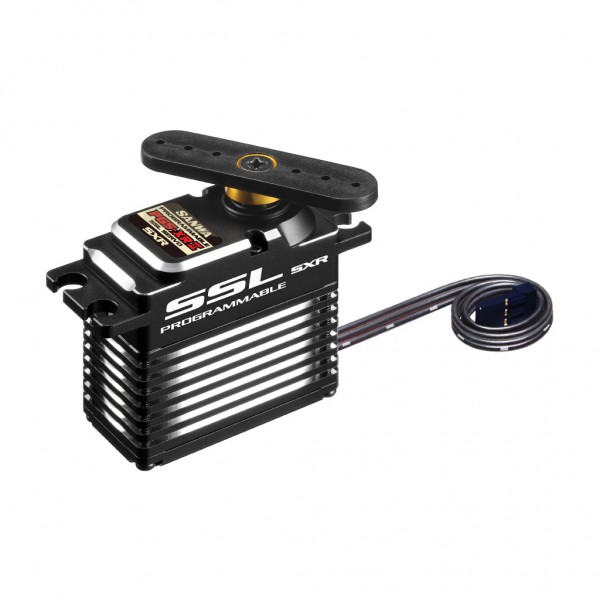

PGS-XR2 Servo

FH5U: SXR(SANWA XTREME RESPONSE) MODE-COMPATIBLE
- SSL-COMPATIBLE PROGRAMMABLE SERVO
# Compatible with CODE 10 (M12S, EXZES ZZ, MT-44)
Not Compatible with CODE 5 (M12, EXZES Z, MT-4S, MT-4, MT-S)
- PGS SETTING GEAR-COMPATIBLE
- SUPER RESPONSE (SSR) MODE-COMPATIBLE
- HIGH RESPONSE (SHR) MODE-COMPATIBLE
- Li-Po 2 CELL-COMPATIBLE
- HIGH TORQUE TYPE
- BRUSH LESS MOTOR
- FULL ALUMINUM CASE
- FULL METAL GEAR (Strengthening Gears)
- AL HEAT SINK
- Black Harness

Programmable Servo to be compatible with SSL & Telemetry at Launch
- Setting Adjustment by wireless from Radio
- Setting Adjustment to connect Servo with Setting Gear
- Regarding Temperature, Current, Voltage and Volume Position on Servo inside,
Telemetry-transmission can be passed to Radio.
# Initial Setting on Setting Gear is necessary.

- Setting Items
- SSL-CH (SSL Channel Setting) -STRETC (Stretcher Adjustment) -BOOST (BOOST Adjustment)
- D-Band (Dead Band Adjustment) -MV-MID (Middle Torque Adjustment)
- MV-END (Later Torque Adjustment) -BREAK (Break Adjustment)
 - MV-HOLD (Power Adjustment at whole area)

- MV-FRQ (Feeling Adjustment at whole area)
- MAX-PW (MAX Duty Adjustment)
- Setting Gear is necessary for setting.

Speed

• 0.09 sec/60 (7.4V)
• 0.11 sec/60 (6.0V)

Torque

• 17.3 kg/cm (7.4V)
• 14.0 kg/cm (6.0V)

Dimensions

• 40.5x20.5x38.7 mm

Weight

• 72 g
