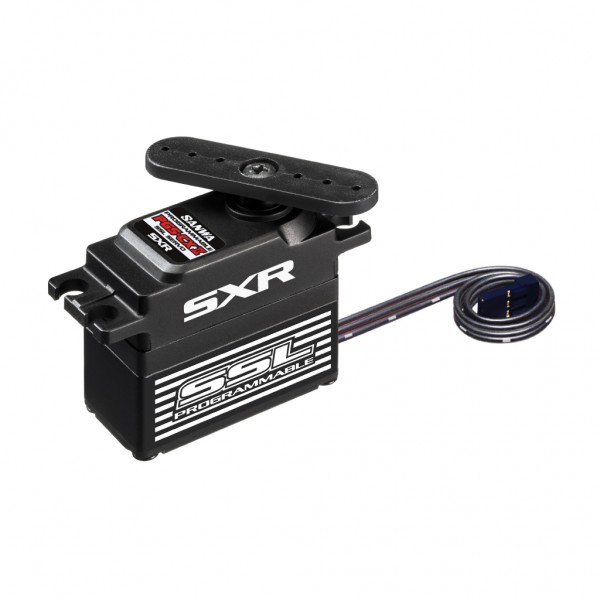

PGS-CX2 Servo

Programmable Servo to be compatible with SSL & Telemetry
- Setting Adjustment by wireless from Radio
- Setting Adjustment to connect Servo with Multi Setting Gear
- Regarding Temperature, Current, Voltage and Volume Position on Servo inside,
Telemetry-transmission can be passed to Radio.

SSL Compatible
- Compatible with CODE10 (M12S (RS), Exzes ZZ, MT-44)
Not compatible with CODE5 (M12, Exzes Z, MT-4S, MT-4, MT-S)
- MULTI SETTING GEAR compatible
Not compatible with PGS SETTING GEAR
- SSR mode compatible
- SHR mode compatible
- Lipo 2 cell battery compatible
- High torque type
- Coreless motor
- Metal Gears
- AL Heat Sink

Speed

• 0.11 sec / 60° (7.4 V)
• 0.13 sec / 60° (6.0 V)

Torque

• 26.5 kg ·cm (7.4 V)
• 23.3 kg ·cm (6.0 V)

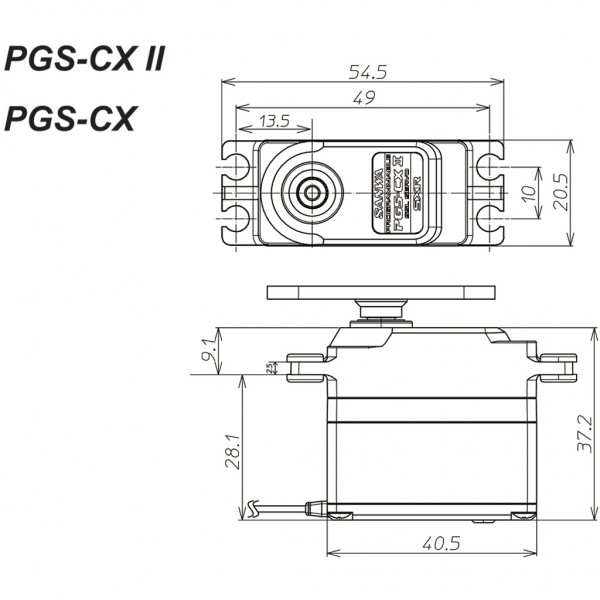

Dimensions

• 40.5 X 20.5 X 37.2 mm

Weight

• 59 g
