Meer informatie
Smart Technology — More connected for more confidence and control
Spektrum™ Smart Technology is about offering a higher connection to your hobby. It's an RC ecosystem that puts you in complete control while making vital components of your model easier to use than ever before. Smart technology ensures that all of your model's electronics work together seamlessly for the greatest efficiency and performance. It keeps you aware of every component's status, boosts your confidence in its capabilities, and makes your entire system more responsive and simple to use.
Spektrum radios with Smart features can download firmware updates instantly using Wi-Fi and can swap setups with compatible radios via Bluetooth. Spektrum Smart LiPo batteries have a built-in microchip that records and communicates your charging preferences automatically to Smart chargers — just connect your pack and press "Start." Smart IC™ series connectors include an innovative data wire that transfers information easily between Smart components with a single connection. Finally, Smart ESCs not only deliver power but also eliminate the hassles from running telemetry. The days of installing and connecting multiple wires, sensors, modules and links are over
Belangrijke kenmerken
- Smart all-in-one telemetry
- Fast, powerful 32-bit ARM M4 processor
- Multiple options for easy programming:
- Smart ESC Programming Box
- SmartLink USB Updating and Programmer application
- Throttle stick programming
- Multi-point protection:
- Over-current protection
- Automatic LiPo low-voltage cutoff
- Thermal protection
- Failsafe protection
- Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer
- Compact for easy installation in most applications
- Ready to install — no soldering required
- Rugged plastic case
- Heat dissipating design
- Tabs included for a hard mount
- Aluminum heat sink for high efficiency
- Cooling fan
- Adjustable high-power BEC
- Dual BEC power connectors
- Firmware updatable through the Smart ESC Programming Box and SmartLink PC application

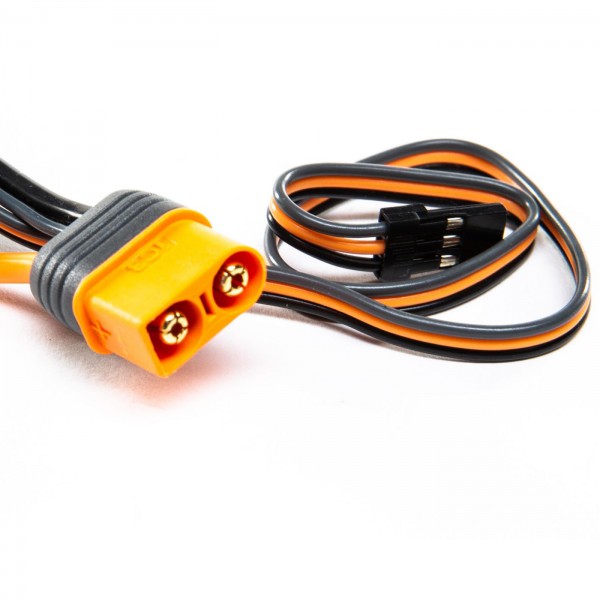

- High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
- Limited 1-year warranty
Specificaties
Auto Cutoff : | Yes |
BEC : | Yes |
BEC Continous Current : | 7A |
BEC Maximum Burst Current : | 20A |
BEC Type : | Switch |
BEC Voltage : | 6V/7.2V adjustable |
Battery Input Lead : | 3.9" (100mm) 14AWG |
Brakes : | Yes |
Forward : | Yes |
Height : | 0.6" (16mm) |
Input Voltage : | 3S - 6S LiPo |
Length : | 2.3 (59mm) |
Low-Voltage Cutoff Programmable : | Yes |
Maximum Burst Current : | 80A |
Maximum Continuous Current : | 60A |
Motor Connector : | 3.5mm Bullet |
Motor Output Lead : | 3.9" (100mm) 14AWG |
Overload Protection : | Yes (Thermal protection as well) |
Reverse : | No |
Sensored : | No |
Type : | Air |
Weight : | 2.0oz (56g) |
Width : | 1.2" (31mm) |
Productgegevens
- Fabrikant : Spektrum
Wat nodig is om te vervolledigen
- Spektrum™ Aircraft Receiver
- Spektrum Smart Technology LiPo Battery
- Spektrum Transmitter
Samenstelling van de kit
- (1) Spektrum™ Avian™ Smart ESC
- (1) Spektrum Smart sticker sheet
- (1) Product Manual
Videos

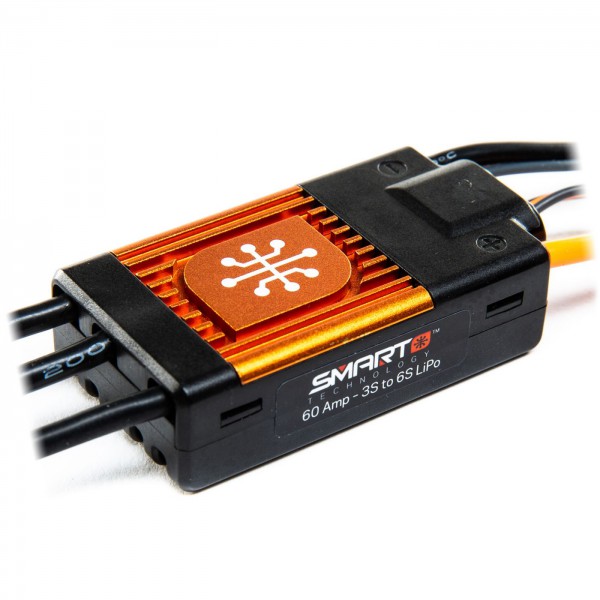

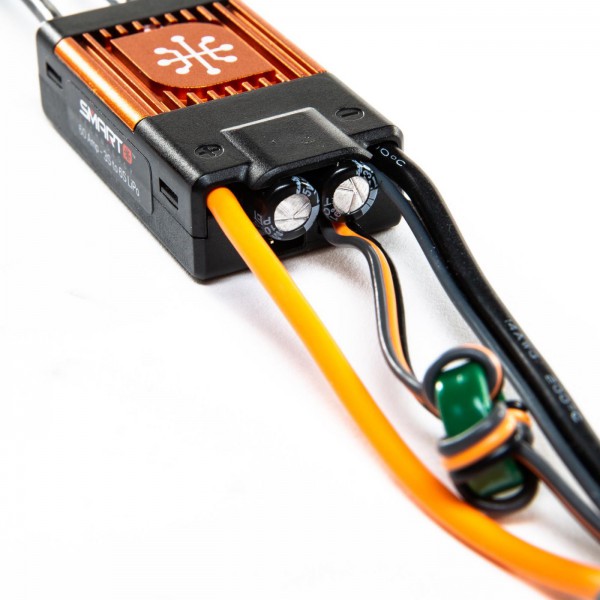

Avian 60 Amp Brushless Smart ESC 3S-6S
79,99 €
