Lunch Box Mini SW01

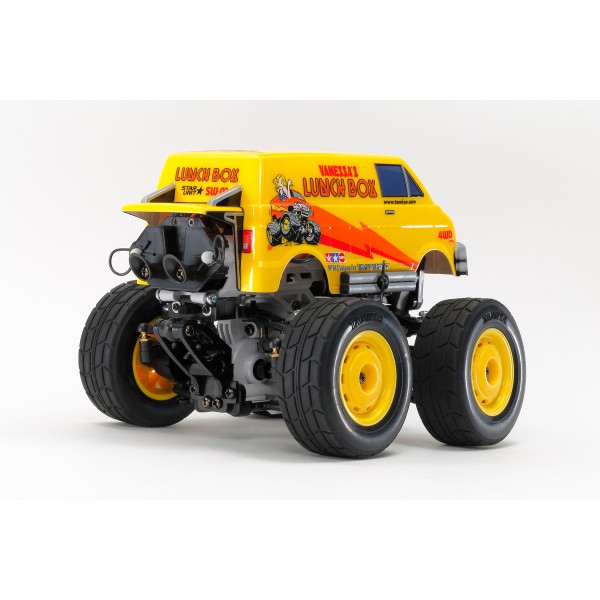

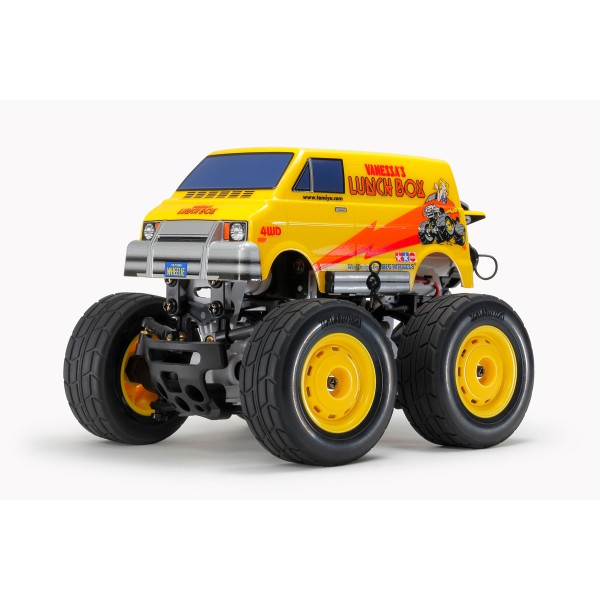

This is a compact, maneuverable, and above all super-fun addition to the world of Tamiya wheelie models! It's a familiar face, too, as the legendary Tamiya Lunch Box has been shrunk down to 1/24 scale.

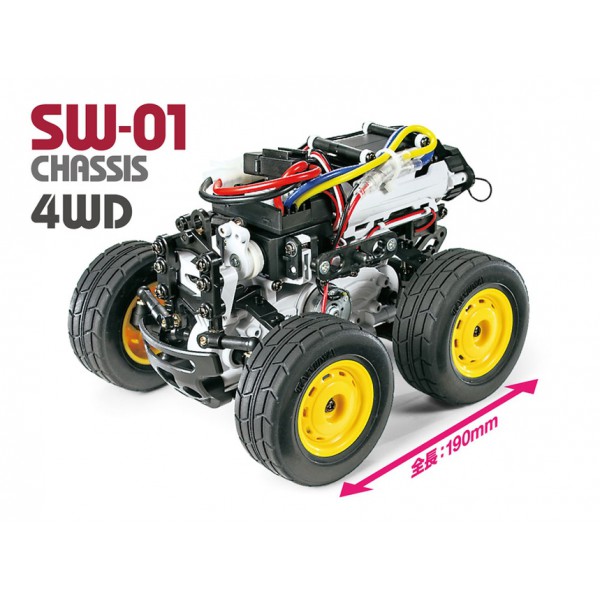

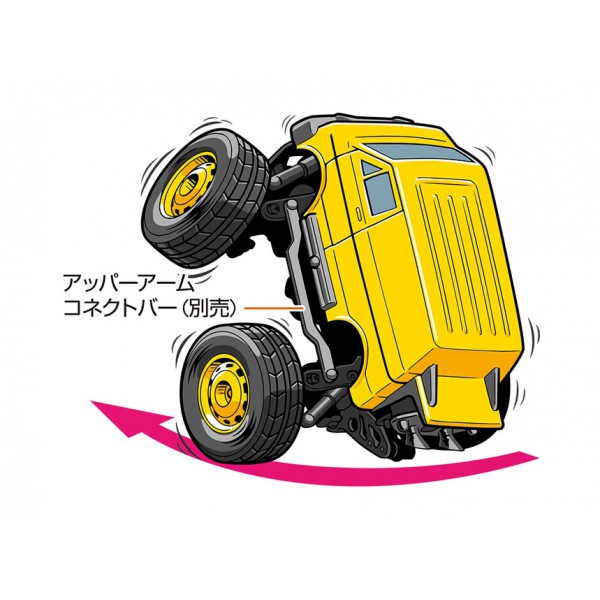

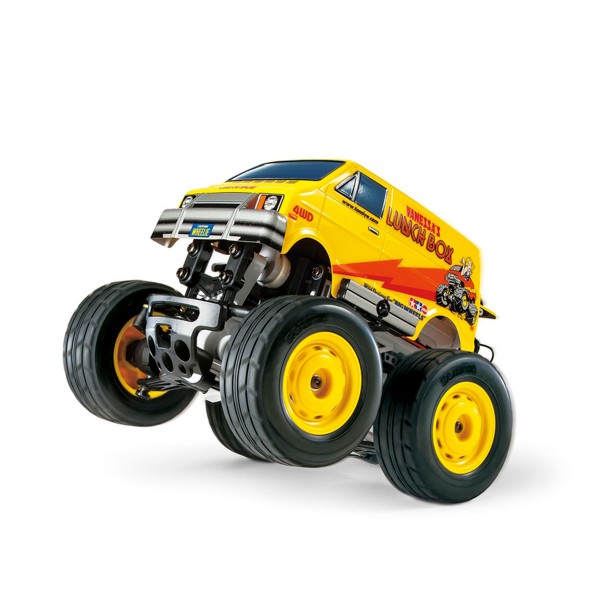

The classic shrunken Lunch Box body sits on top of the 4WD SW-01 chassis. It is capable of 4-wheel steering using separately sold Upper Arm Connectors that not only allows you to steer with all four wheels on the ground, but it also allows the vehicle to steer while doing wheelies!

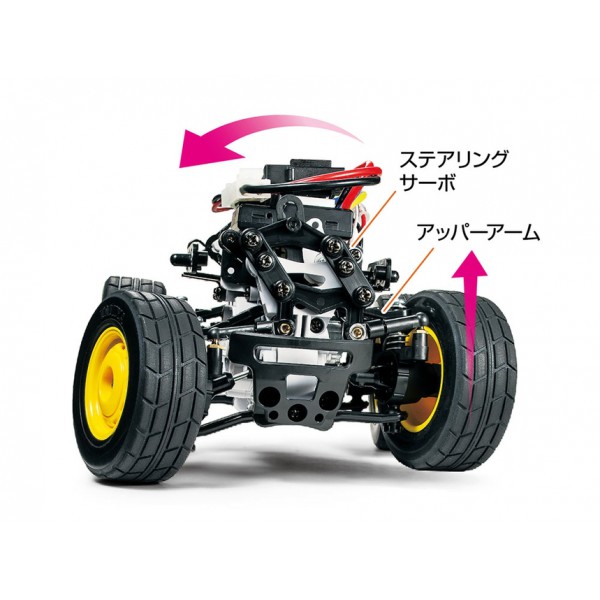

• The steering uses 1-piece upper arms for a tight turning circle and the body leans to help suppress tumbles. It can be converted into a 4-wheel steering setup with separately sold Item 54898 SW-01 Upper Arm Connectors.
• The body is attached to the body mounts using magnets for quick attachment.
• The Type 370 motor is located right in the center of the SW-01 chassis, in a gear-driven 4WD setup with a gear ratio of 21.875:1.
• 1/24 scale R/C model assembly kit.

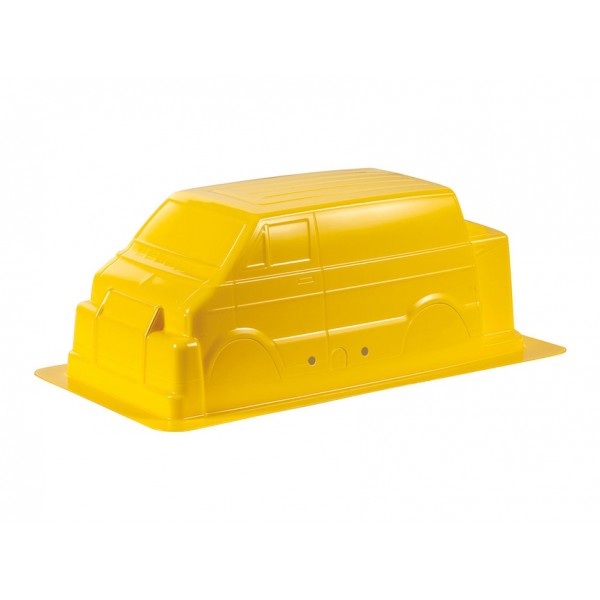

• The famous Lunch Box body is molded in lightweight and durable polycarbonate and is pre-painted.
• The body leans in the direction in which the model steers, achieving remarkably tight turning circles.
• Responsive 4WD.
• Strut style suspension.
• Can be used with standard size servos and R/C equipment despite its compact nature.
• Big, tread patterned tires give superb traction and add to the overall cartoonish look of the Lunchbox Mini.
• Dish type wheels.

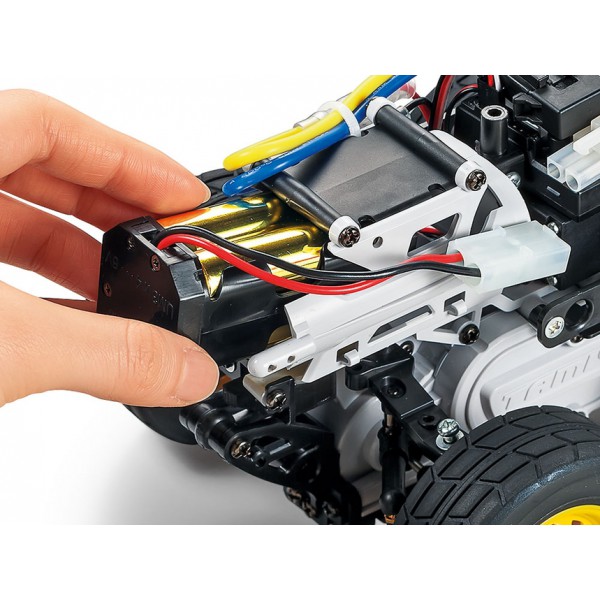

• Compatible with Tamiya LF Battery LF1100-6.6V Racing Pack (M-Size) as a power source.
• Aftermarket battery note: Battery pack size must be under 66x36x15mm in size.
• 370-type size motor included.

• Adjustable Gear Ratio Fixed
• Bearings Plastic bushing
• Body Material Polycarbonate
• Body Stickers Included
• Chassis Material ABS Plastic
• Chassis Type SW-01
• Construction Type Assembly Kit
• Differential Type Gear
• Drive Type 4WD
• Electronic Speed Control (esc) Not Included
• Motor 370 size
• Scale 1/24
• Shock Damper Friction type
• Suspension Fully Independent Double Wishbone
• Terrain Use On-Road

• Length : 190 mm
• Width : 146 mm
• Height : 140 mm

2-Channel Radio, standard size servo, 7.2-7.4volt battery pack & compatible charger.
Compatible with: item 51610 RC T301 Battery Case for use with 4 AA batteries if desired.
