Servo HS-7985MG digi

High-torque high-performance servo of 20 mm Class

The HS-7985MG High Torque digital servo with the G2 chip is fully programmable and provides unparalleled durability, thanks to its exclusive metal gears with two ball bearings on the output shaft, which is particularly well suited when low game and high positional accuracy are important.
The long life and the uniquely designed gearbox make it a most reliable and efficient standard servos on the market.

• Programmable
• Digital MOS FET amplifier
• High speed adjusting
• High torque
• High holding power
• metal gears
• 2 ball bearings

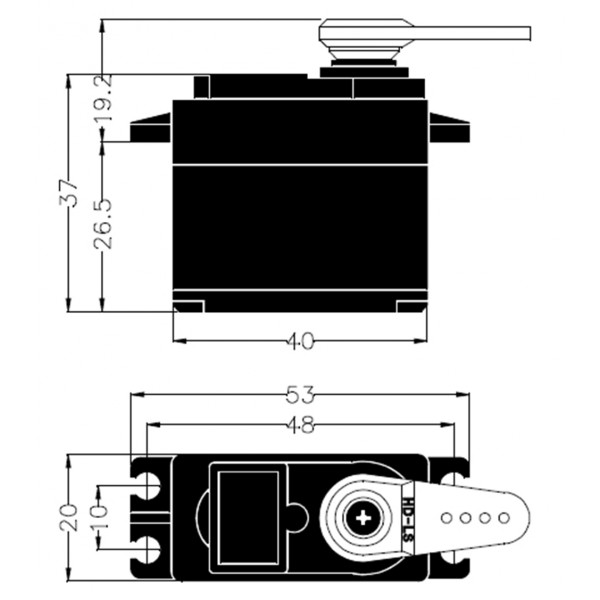

• Width : 20 mm
• height : 37 mm
• length : 40 mm
• Weight : 0.062 Kg
• servo Type: Standard
• Features: Digital
• Engine type servos: brushed
• Transmission: metal
• operating voltage in V: 4.8 to 6.0 V
• operating time s / 60 ° at 4 , 8 volts: 12:16
• positioning time s / 60 ° at 6.0 volts: 12:13
• torque in kg cm at 4.8 volts: 11
• torque in kg cm at 6.0 volts: 13
• teeth: 24T
• bearings: Yes
• Waterproof: No
• flight Yes
• Recommendation Heli: No
• recommendation Car: Yes
• Recommended boat: No
