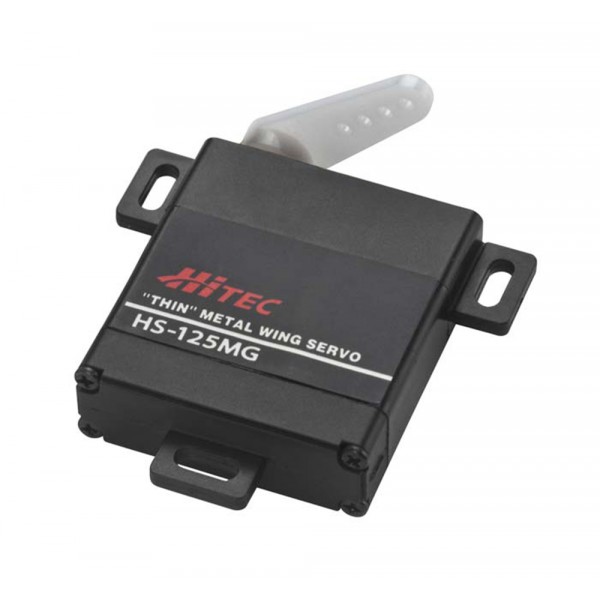

Servo HS-125MG

Small, rugged surface servo of the 10 mm class

Considered one of robustesten servos in the class. The HS-125mg surface servo offers unprecedented durability thanks to its exclusive metal gearbox and two ball bearings on the output shaft, which are particularly suitable when low clearance and high positional accuracy are important.
The HITEC Servo HS-125mg provides maximum performance with minimal weight and is using this information is also a favorite for industrial applications. The long life and the uniquely designed gearbox making it one of the most reliable and efficient mini servos on the market.

The HS-125mg is ideal for applications as special surface servo for competition models with thin profiles.

• Longlife Poti
• High holding force
• Two ball bearing
• metal gears

• Width : 10 mm
• height : 34 mm
• length : 30 mm
• Weight : 0.025 Kg
• servo Type: Area
• Special features: Analog
• motor type servos: brushed
• Transmission: metal
• operating voltage in V: 4.8 to 6.0 V
• operating time s / 60 ° at 4 , 8 volts: 12:17
• positioning time s / 60 ° at 6.0 volts: 12:13
• torque in kg cm at 4.8 volts: 3
• torque in kg cm at 6.0 volts: 4
• gearing: Micro
• bearings: Yes
• Waterproof: No
• flight Yes
• Recommendation Heli: No
• recommendation Car: Yes
• Recommended boat: Yes
