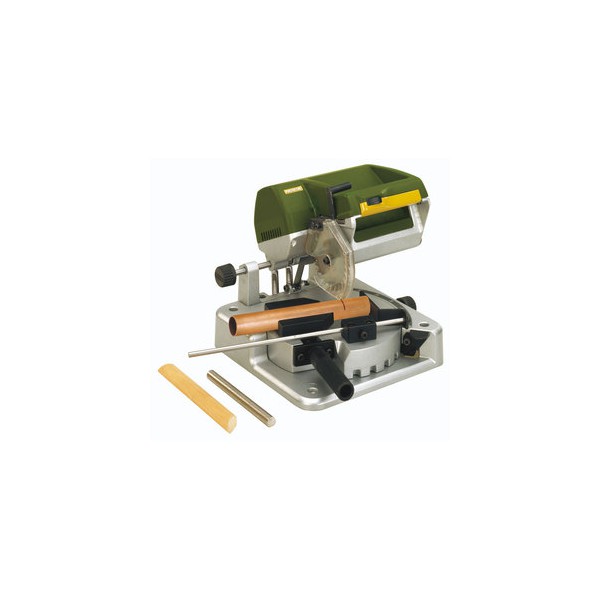

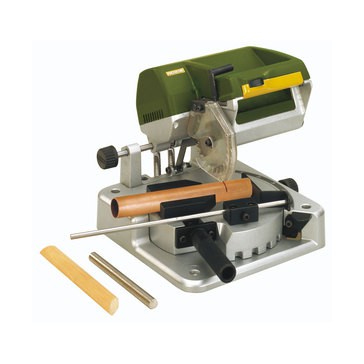

Afkortzaag KGS 80

For safe and safe cutting of non-ferrous metal, plastic and wood parts.


This miter saw, already combined with a circular saw, is designed to cut precise lengths of cleats, slats, profiles, angles and panels of panels, cladding elements and planks. In addition, you can saw plastic and aluminum. For miter cuts: it is not the clamping head (firmly fixed in the clamping device), but the round table with the workpiece that is set

The advantage for miter cuts: the adjustment is not done on the sawhead but at the level of the round table (with fixed part)!

The longitudinal stop allows, by opposite rotation of the table of 2 x 45 °, to make the contra-angle for a second element of the same length by simple tilting.

Powerful and very quiet DC motor.
Transmission of the power by anti-vibrating toothed belt.
With hard metal saw blade for non-ferrous metals, wood and plastics (80 x 1.6 x 10 mm, 24 d).

-Side adjustment of the saw head for positioning the blade closer to the vice, allowing a vibration-free cutting and a clean cut!
- Ergonomic handle with integrated switch and unlocking control of the saw head.
- Adjustable table in cast aluminum. Bilateral clamping, gradually adjustable up to 45 °. Blocking with 15 ° angles.
- Integrated clamping device with central vice. V-groove (for round parts). Front groove for fixing small parts.
- With longitudinal stop (max length 300 mm).

• Input : 220 - 240 V/50 Hz/200 W.

• No charge RPM : 4000 tr/min.

• Table size  : 300 x 300 mm.

• Weight : 6 kg.

• Comes with 24T hard metal saw blade (80 x 1,6 x 10 mm).
