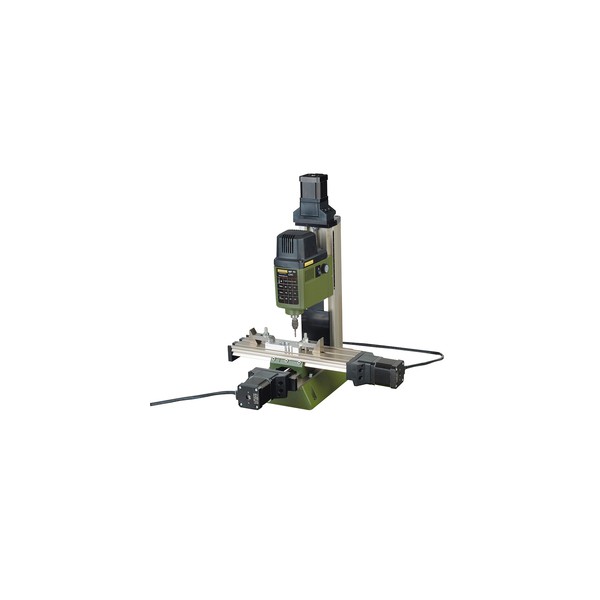

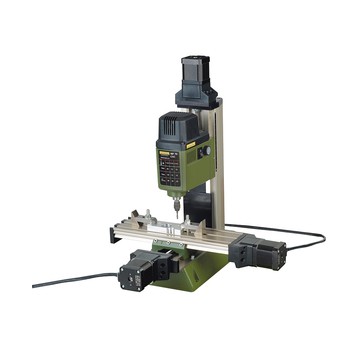

MICRO-frees MF 70/CNC-ready

With stepping motors for the X axis (transverse), Y (longitudinal) and Z (height) instead of flywheels.
Useful for users who already have the order unit or want to buy it from one of the sellers in the market.
Stepper motors and reference switch with 2.2 m connection cable and a standard socket (9-pole SUB-D) for X, Y and Z axes.
Supplied without CNC control unit and without CNC software.
The other technical structures are identical to the MF 70 milling machine.
With the exception of a larger table and slightly longer runs X (transverse) and Y (longitudinal).
Including MICROMOT collets (hardened steel, 3 slotted), 1 - 1,5 - 2 - 2,4 - 3 and 3,2 mm.
Steel clips are included too.

230 V.100 W.50 / 60Hz.
Spindle rotations: 5000/20000 rpm.
Table 250 x 70 mm.
Stroke X (transverse) 150 mm, Y (longitudinal) 70 mm, Z (vertical) 70 mm.
Step motor resolution 0.005 mm.
Total height: 370 mm.
Weight approx. 7 kg.
