DISC.. Brushless Motors set (4pcs) F20 - 3200kv

Maximize

Motors Electronics & Motors Brushless motors for Drone

DISC.. Brushless Motors set (4pcs) F20 - 3200kv

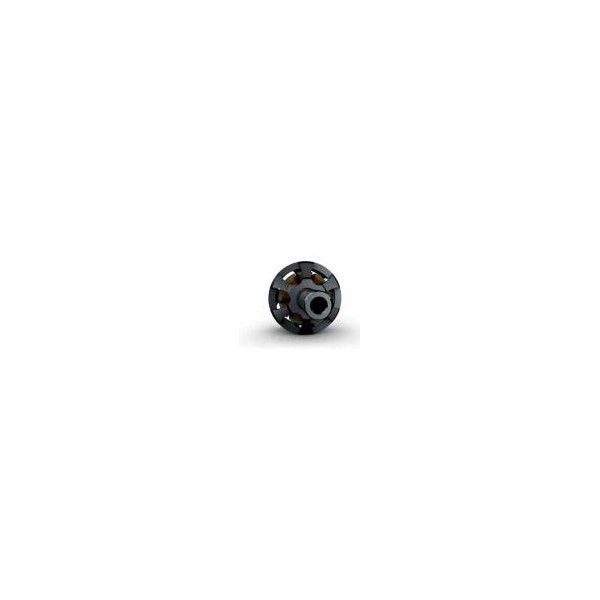

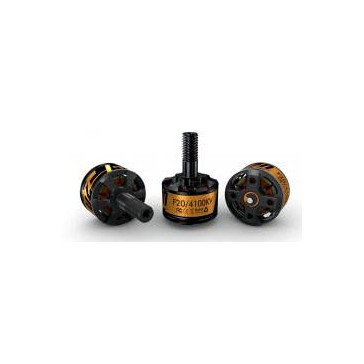

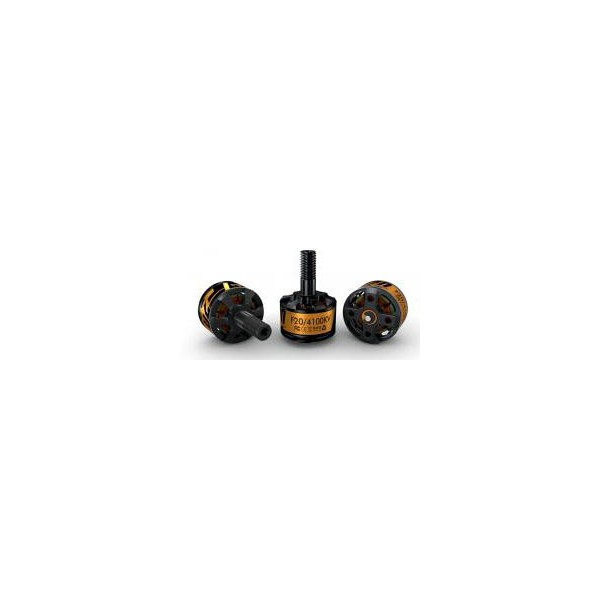

Set of four T-Motor F20-Kv3200 brushless motors.

More details

Manufacturer: T-Motor

Reference: TMOF20-3200

Stock status: Limited stock at our supplier. Shipment in 2 days, without warranty.

Shippingcosts from 6.99€
or collect for free at the shop. .

MCM Price : 61,44 €

76,80 €

-20%

Quantity Maximum quantity reached.

Notify me when available

More info
Specifications
Data sheet

More info

Ultra light : 12 g
Large thrust : 350 g+
Super cooling
Perfect for 3" 3-blade props on 130-150 size frame

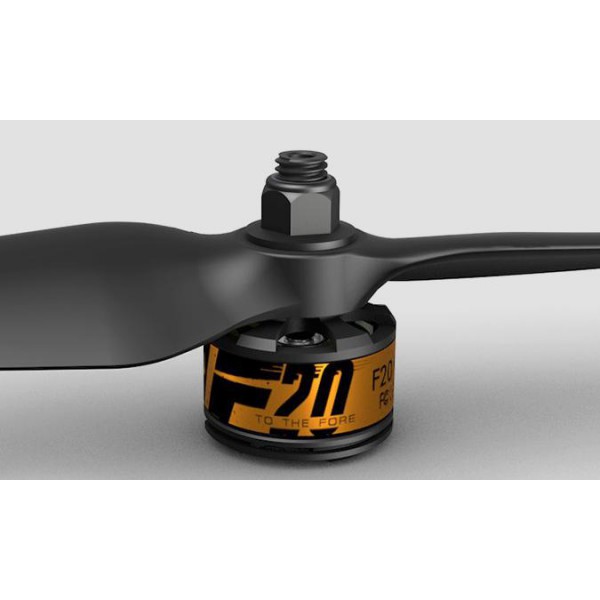

Hollow aluminum propeller adapter
CW thread and locking aluminum nut are adopted to avoid come-off of propellers.
Extended steel shaft further enhances intensity of the aluminum adapter.
Lower structural height. Only 14mm

Specifications

KV...................................................................................................3200
Configuration....................................................................................9N12P
Stator Diameter................................................................................14mm
Stator Length...................................................................................6mm
Shaft Diameter................................................................................2mm
Motor Dimension (Dia.*Len)...............................................................Φ18.8×26mm
Weight (g)....................................................................................12g(Excluding Cable）
ldle current@10v(A)..........................................................................0.5A
No.of Cells(Lipo)...............................................................................2-4S
Cable length......................................................................................80mm

Data sheet

Manufacturer : T-Motor
