>Products to liquidate>DISC.. Brushless Motor MT3506-25 - 650KV
T-Motor

DISC.. Brushless Motor MT3506-25 - 650KV

Brushless outrunner motor for multi-rotors. For 3-4S LiPo battery. Max thrust : 1053 g.

More details

T-Motor

TMOMT3506-25

In stock at the supplier In stock at our supplier. Shipment in 2 days, without warranty.

 Shippingcosts from 6.99€
or collect for free at the shop. .

40,00 €

50,00 €

-20%


Notify me when available

More info

Brushless outrunner motor for multi-rotors.

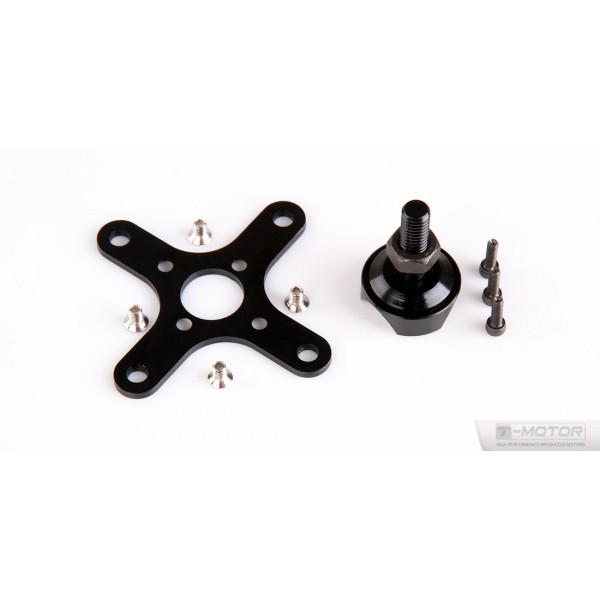

Motor X mount and M5 prop adapter included.

Specifications

  • KV : 650
  • Configuration : 12N14P
  • Stator Diameter : 35 mm
  • Stator Length : 6 mm
  • Shaft diameter : 4 mm
  • Dimensions : diam 41.5 x 23.2 mm
  • Weight (g) : 70 g
  • ldle current(10)@10v(A) : 0.2 A
  • No.of Cells(Lipo) : 3-4S
  • Max Continuous current(A)180S : 14.5 A
  • Max Continuous Power(W)180S : 260 W
  • Max. efficiency current : (4-9A)>84%
  • Internal resistance : 155 mΩ

Data sheet

  • Manufacturer : T-Motor

What you need to complete

  • ESC
  • Propeller
  • Battery

Composition Kit

  • Motor
  • Prop adapter M6
  • X mount
  • Screws

Accessories

DISC.. Carbon fiber prop 13x4.4 (2pc)

TMOCFP13X44

 T-Motor In stock at the supplier In stock at the supplier 54,08 €

DISC.. Carbon fiber prop 14x4.8 (2pc)

TMOCFP14X48

 T-Motor In stock at the supplier In stock at the supplier 62,80 €
