>Products to liquidate>DISC.. Brushless Motor MN4120 - 400KV
T-Motor

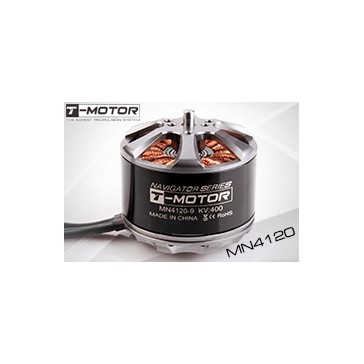

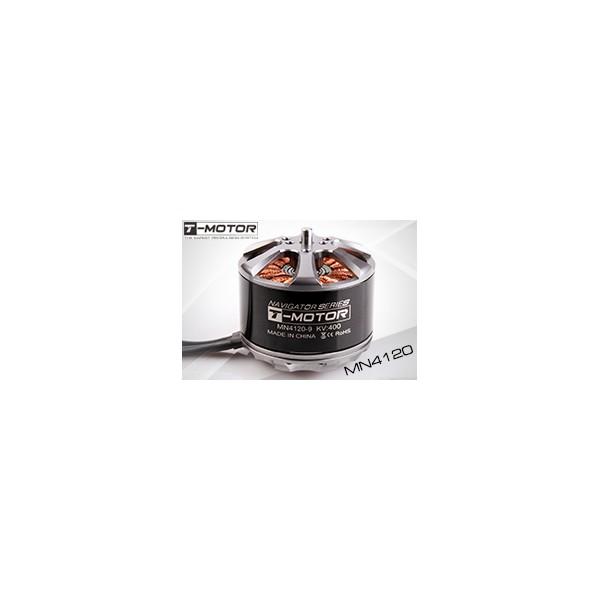

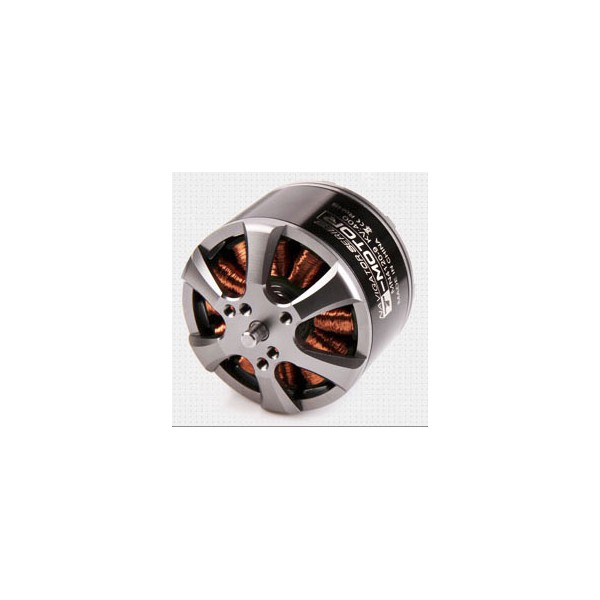

DISC.. Brushless Motor MN4120 - 400KV

Brushless outrunner motor for multi-rotors. Work with 4-8S LiPo battery. Max thrust : 4250 g.

More details

T-Motor

TMOMN4120-400

In stock at the supplier In stock at our supplier. Shipment in 2 days, without warranty.

 Shippingcosts from 6.99€
or collect for free at the shop. .

88,64 €

110,80 €

-20%


Notify me when available

More info

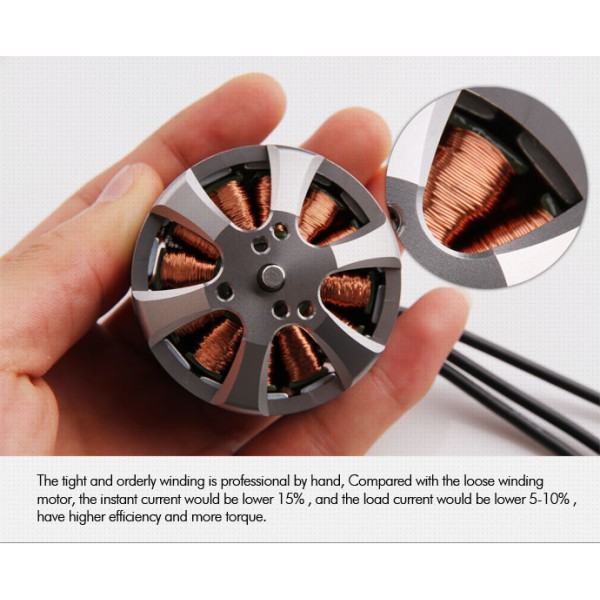

  • High efficency motor
  • Short shaft
  • Prop adapter included
  • Work with standad props and with carbon prop attached with 2 screws.
  • Long wires
  • Low Kv

Specifications

  • KV : 400
  • Configuration : 12N14P
  • Stator Diameter : 41 mm
  • Stator Length : 20 mm
  • Shaft Diameter : 4 mm

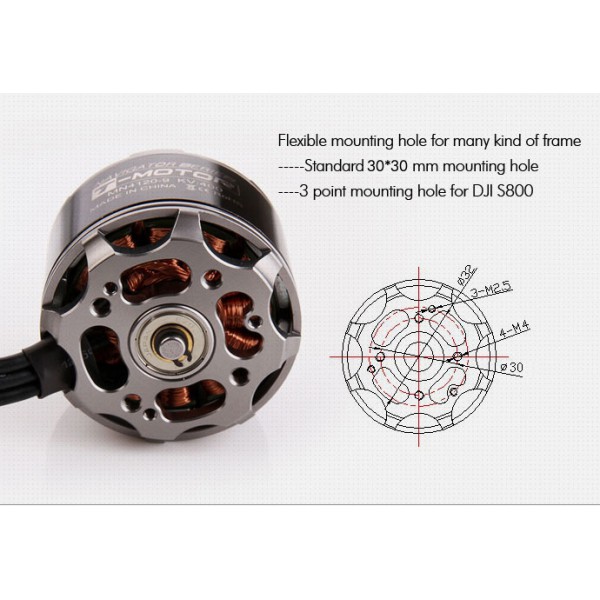

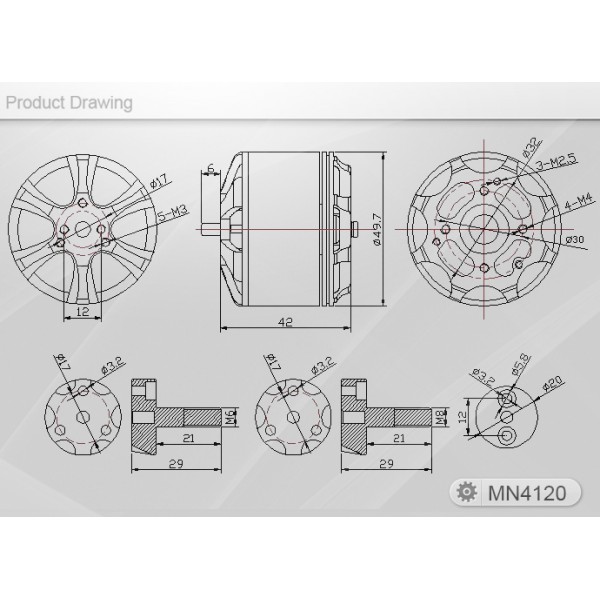

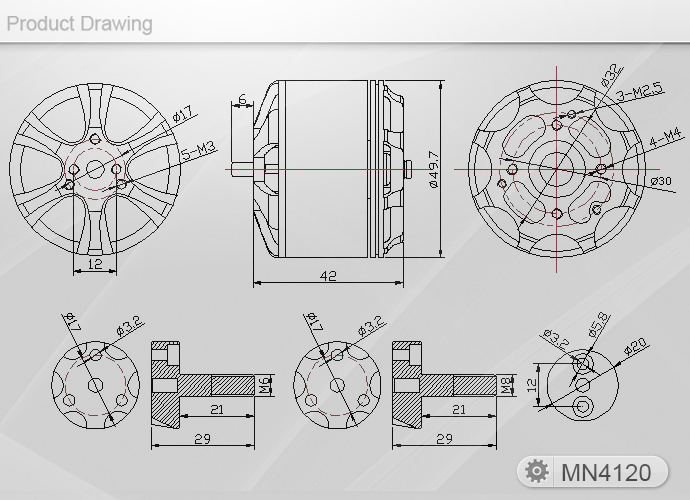

  • Motor Dimensions (Dia.*Len) : Φ49.7 x 42 mm
  • Weight (g) : 253 g
  • ldle current(10)@10v(A) : 1.2 A
  • No.of Cells(Lipo) : 4-8S
  • Max Continuous current(A)180 s : 47 A
  • Max Continuous Power(W)180 s : 1050 W
  • Max. efficiency current : (10-30A)>84%
  • Internal resistance : 30 mΩ

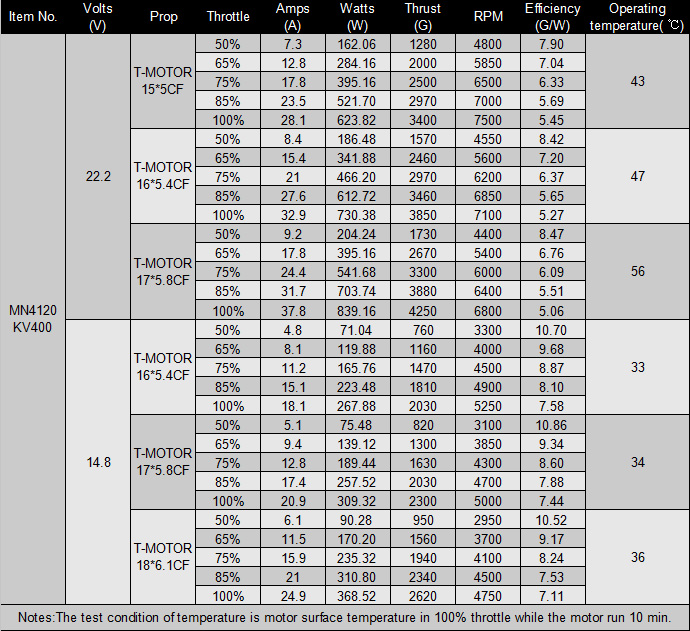

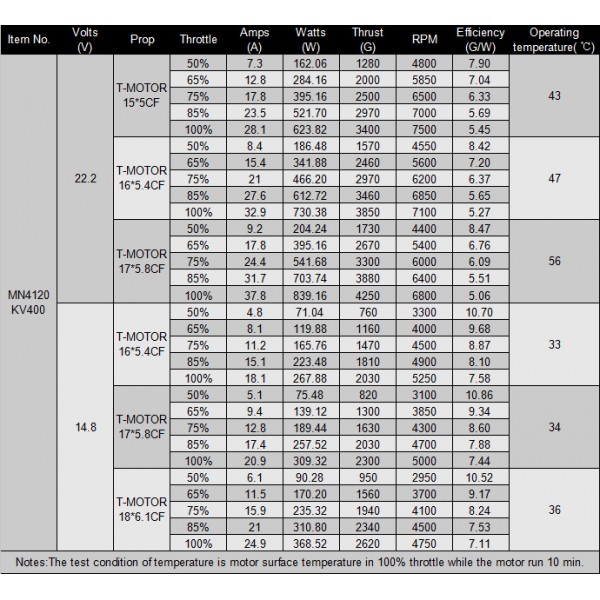

Data sheet

  • Manufacturer : T-Motor

What you need to complete

  • Propeller
  • ESC
  • 4-8S Lipo battery

Composition Kit

  • Motor

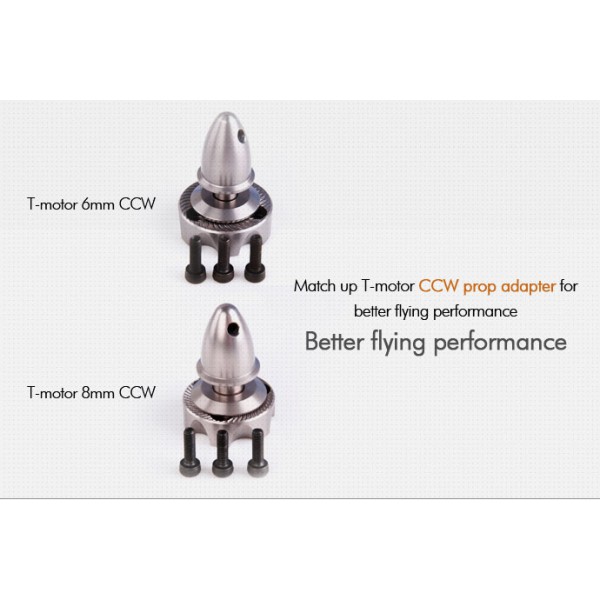

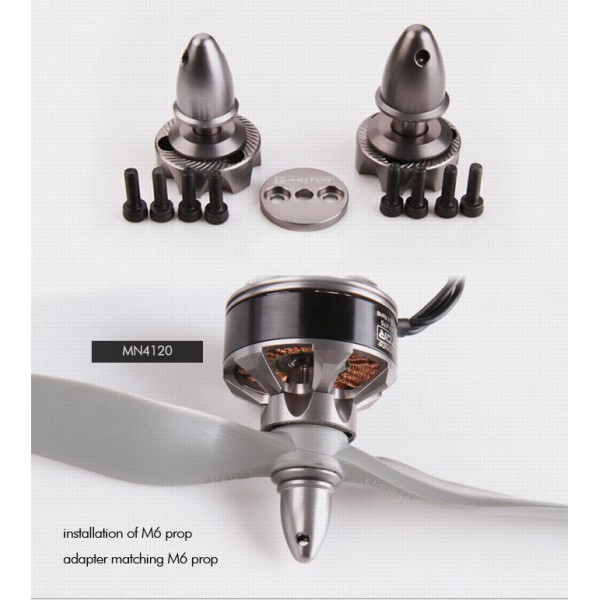

  • M6 and M8 Prop adapters

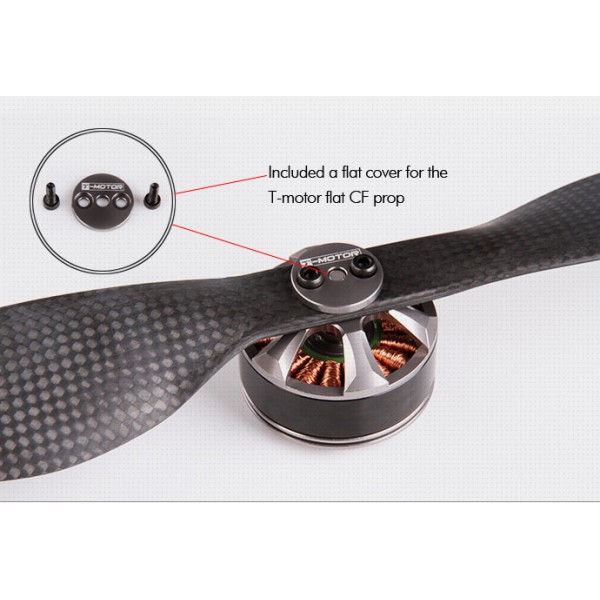

  • Cover and screw for T-Motor CF prop attachment
