Power Switch with remaining battery capacity function

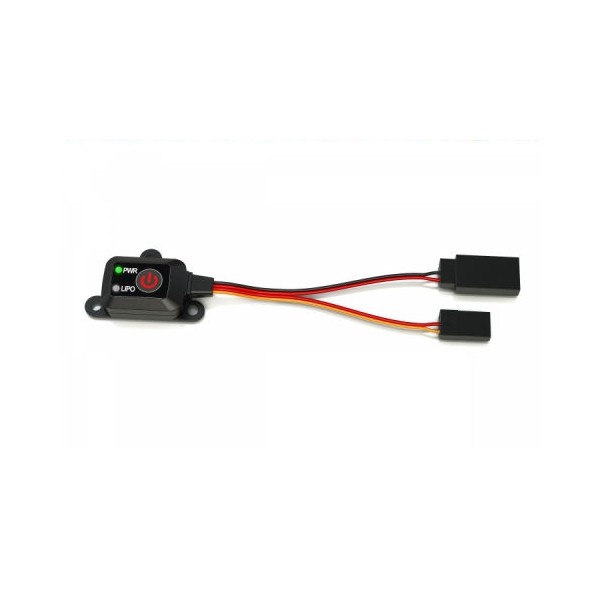

SKYRC introduces the POWER SWITCH, a tiny MCU controlled on/off switch for your radio controlled model

More details

Manufacturer: SkyRC

Reference: SKY600054

Stock status: In stock at our shop Processing within 24/48 working hours.

Shippingcosts from 6.99€
or collect for free at the shop. .

MCM Price : 15,99 €

Quantity Maximum quantity reached.

More info
Key features
Specifications
Data sheet

More info

SKYRC introduces the POWER SWITCH, a tiny MCU controlled on/off switch for your radio controlled model. A simple push button operates the switch meaning to eliminate theproblems associated with intermittent contact of an ordinary mechanical switch.The sealed unit is plastic and can easily be mounted to the transponder mount of your model or anywhere else you can mount it using double side tape. (Two kinds of bottom covers are included, user can change the bottom cover.) The switch also features a LiPo mode, by turning this on the switch unit will auto detect low LiPo voltage and cut off power to protect your LiPo from over dis-charging. This of course can be turn off if you have other safeguards in place or using NiMH/NiCad battery. Beside that the power switch informs you about the remaining capacity and conditions of your battery pack.

Key features

1. NiMH/NiCad Battery Pack

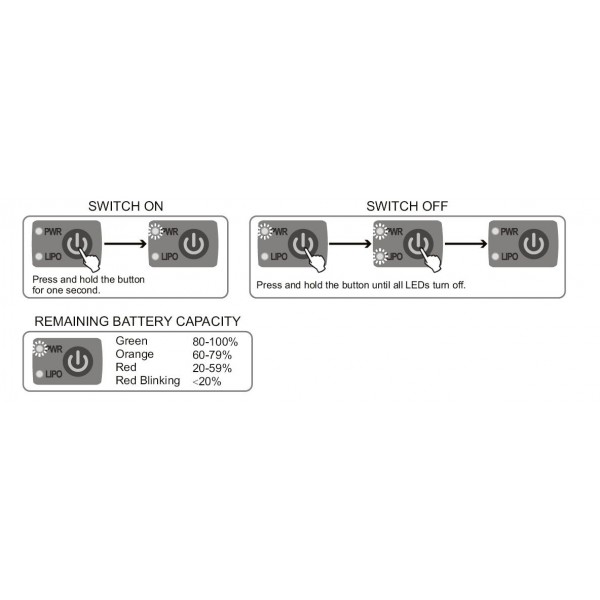

For switching on please press and hold the button for one second. The PWR LED will turn on. For switching off please press and hold the button until all LEDs turn off. The PWR LED also shows you the remaining battery capacity when switched on
2. LiPo Battery Pack
For switching on please press and hold the button for more than three second. The PWR LED and LIPO LED will turn on. For switching off please press and hold the button until all LEDs turn off. The PWR LED also shows you the remaining battery capacity when switched on.

Specifications

Input Voltage: 4-12V
Max. Current: 10 Amp
Battery Mode: 1. NiHM / NiCad
2. LiPo
Low Voltage Protection: 6.2V(LiPo)
Operating temperature: 0-50℃
Weight: ≤7g

Data sheet

Manufacturer : SkyRC
