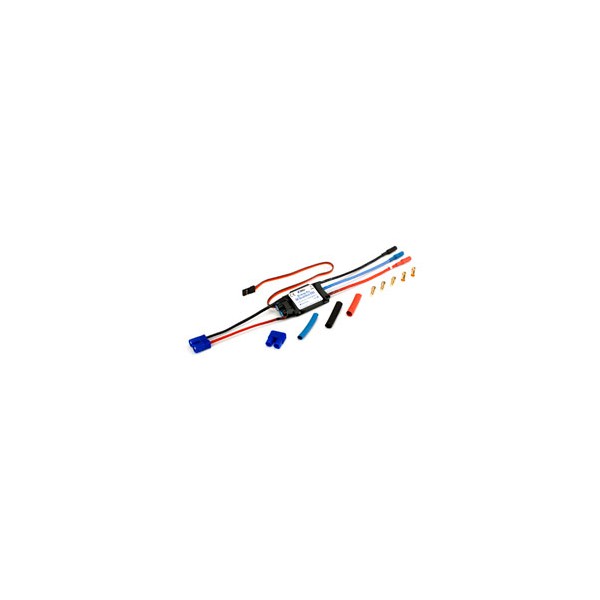

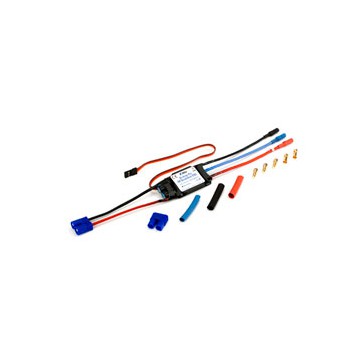

30A Pro SB Brushless ESC (coated) (V2)

E-Flite 30-Amp Pro SB Brushless ESC (Coated) (V2)

Manufacturer: E-Flite

Reference: EFLA1030BC

Stock status: Can not be ordered because not in stock at our supplier. Delivery time unknown

Shippingcosts from 6.99€
or collect for free at the shop. .

MCM Price : 59,99 €

Notify me when available

Key features
Specifications
Data sheet

Key features

Up to 30 amps continuous current with proper air flow and 35 amps burst current (15 seconds)
3.5A* continuous current, 5V Switch-Mode BEC Circuit
Stronger BEC for support of most 3-axis stabilization systems
Drive up to 7 analog or 6 digital standard-size servos with the BEC on any recommended input voltage
3- to 4-cell Li-Po, 9- to 12-cell Ni-MH/Ni-Cd input voltage
Programmable motor braking
Safe power-arm mode prevents accidental starts
Programmable low voltage cutoff with settings for 3-cell Li-Po (9.2V), 4-cell Li-Po (12V) or 74% of battery starting voltage
Programmable throttle input range (1.1 ms-1.9ms or 1.2ms-1.8ms)
Programmable soft start for helis and airplanes
Auto motor shut down if signal is lost or there is interference
Programmable timing—5 user-selectable ranges for use with a large variety of brushless motors
Pre-wired connectors—E-flite EC3™ connector on battery input and 3.5mm gold bullet connectors on motor output leads
Proper cooling and airflow required
Continuous Current Max Burst Current

Specifications

Continuous Current: 30 A
Max Burst Current : 35 A (15 s)
Length : 51.0 mm
Width : 28.0 mm
Height : 8.7 mm
Weight : 31 g
Cells : 3-4S LiPo / 9-12 NiMH or NiCd
Battery Input Leads : 16 AWG with E-Flite EC3 connectors
Motor Output Leads : 16 AWG with 3.5 mm Gold Bullet Connectors

Data sheet

Manufacturer : E-Flite
