More info

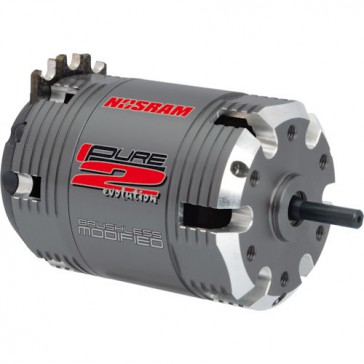

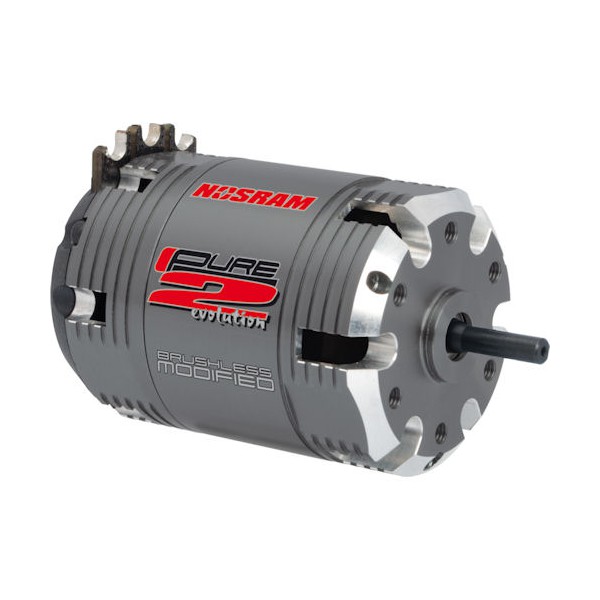

NOSRAM’s r&d team spent a lot of time in developing and testing the redefinition of brushless modified motors for toughest competition! The more than impressing result is the all new NOSRAM pure 2 brushless modified motor.
The all new NOSRAM pure 2 brushless modified has been designed completely from scratch. It’s THE new high-technology motor line ready for any future challenge. The NOSRAM r&d team put the main focus in the development process of the new heavy-duty motor on highest possible efficiency and a power output never seen before. We can proudly state already now that this mission has been completed. The pure 2 features a higher power rating at improved temperature characteristics and lowest friction.
One of the innovations is the dual axis balanced 12.5mm sintered worksteam rotor. The rotor guarantees an absolutely precise running and a significantly improved efficiency. NOSRAM’s preciSensorTM system and the x-tra large ball bearings further boost the motor performance. The ultra lightweight, precision machined 7075-T6 aluminum housing features optimized cooling cut-outs for lowest running temperatures at full power output.
Pure 2 – just brushless modified redefined!
Key features
- XTEC X20 coolmax housing: machined 7075-T6 aluminum can with maximum cooling for lowest running temperatures
- dynamic balanced worksteam rotor: dual axis balanced 12.5mm sintered worksteam rotor for maximum power and highest efficiency

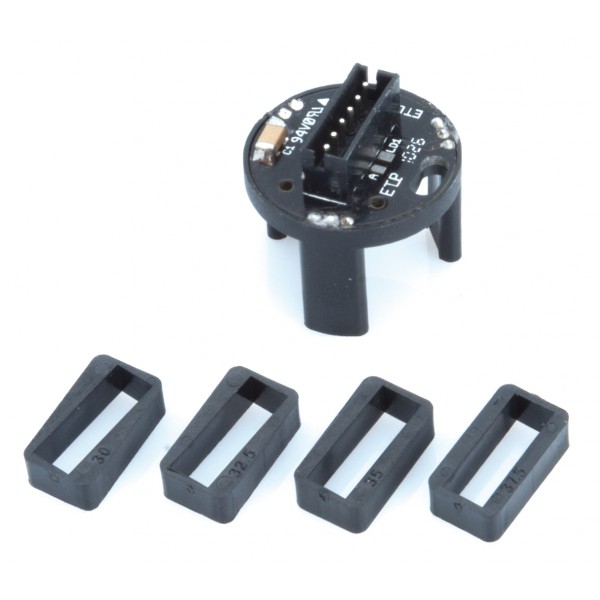

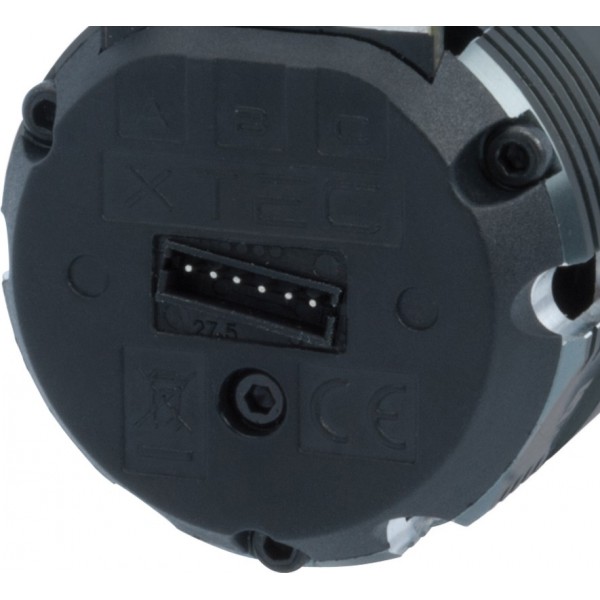

- waterproof preciSensor™ system: fully waterproof precise sensor positioning for best power, throttle feel and efficiency. Fully adjustable and replaceable
- optimized racing stack: optimized packed stack for improved drive feel and efficiency
- 5 timing inserts: finer timing adjustments, inserts now with degree markings

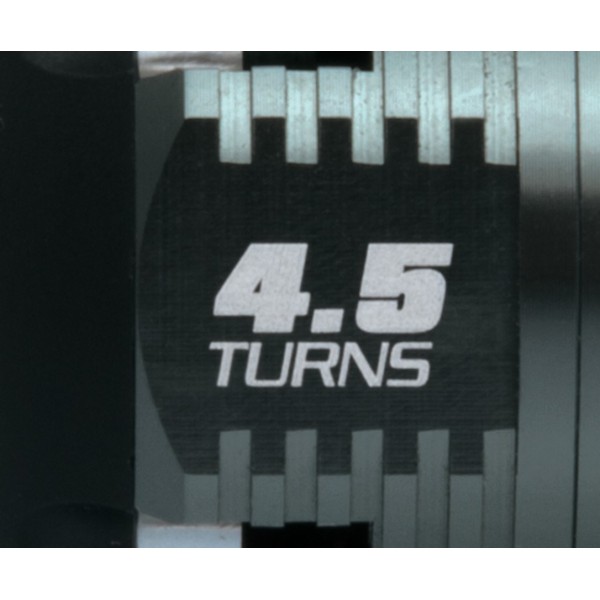

- laser engraved rotor size: externally visible indication of the rotor diameter
- oversized ABEC 5 ball bearings: larger sized ABEC 5 bearings for maximum durability
- o-ring dampening: for vibration-free operation even under highest rpm’s
- easySolder design: heavy copper, 6-layer PCB for lowest resistance
- NOSRAM World’s winning motor technology
Specifications
rpm | 56240 |
weight | 165g |
kv | 7600 |
power | 593W |
magnet material | 12.5mm sintered worksteam |
voltage input | 3.7-7.4V |
winding | star (multistrand copper winding) |
Data sheet
- Manufacturer : Nosram
DISC.. Pure 2 brushless modified - 4,5T
58,99 €
