Blade

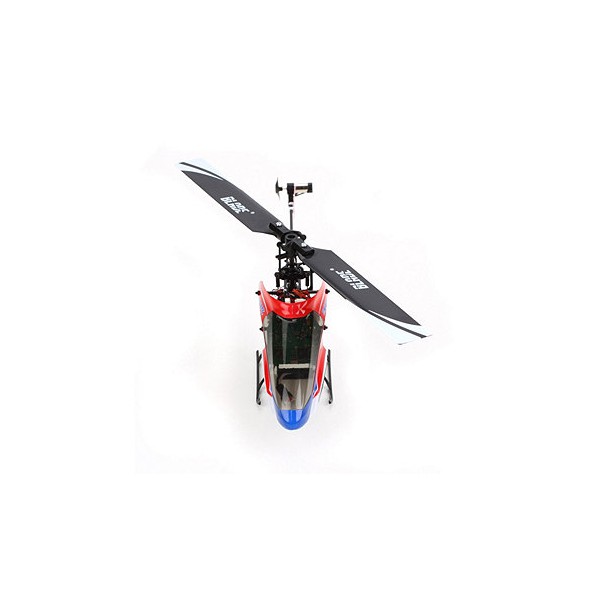

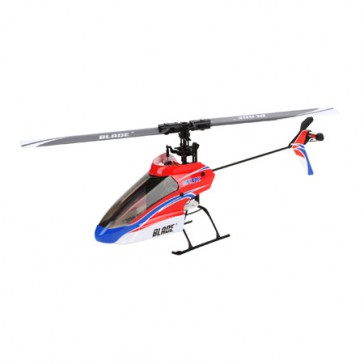

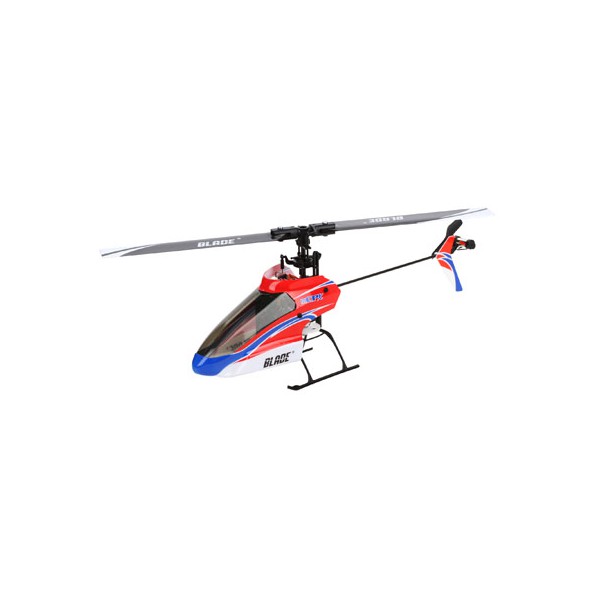

DISC.. Helicopter mCP X 2 BNF

Expert Expert

This helicopter will give transitioning pilots a more agile and capable collective pitch heli that will give them the confidence to master indoor aerobatics without the hesitance which comes with a larger outdoor only platform. Not to mention the cost makes it much more economical when learning.

More details

Blade

BLH3680

Sold out Sold out article The article is no longer available

 Shippingcosts from 6.99€
or collect for free at the shop. .


Notify me when available

More info

Version 2 Changes:
- Digital 3-Axis AS3X Sensor
- Large Diameter Tail Rotor
- Swashplate Ball Link Dampers
- 1S 200mAh 30C Battery

This helicopter will give transitioning pilots a more agile and capable collective pitch heli that will give them the confidence to master indoor aerobatics without the hesitance which comes with a larger outdoor only platform. Not to mention the cost makes it much more economical when learning.

It comes out of the box 100% factory built and equipped with a factory-installed Flybarless 3-in-1 Control Unit with Spektrum 2.4GHz DSM2 receiver, ESCs, and gyros. The Bind-N-Fly version is ready for customers who already have a compatible DSM2/DSMX aircraft transmitter. Also includes two 1S 200mAh 30C batteries, single port charger with AC adapter and a 1S High Current Ultra-Micro Battery Adapter Lead.

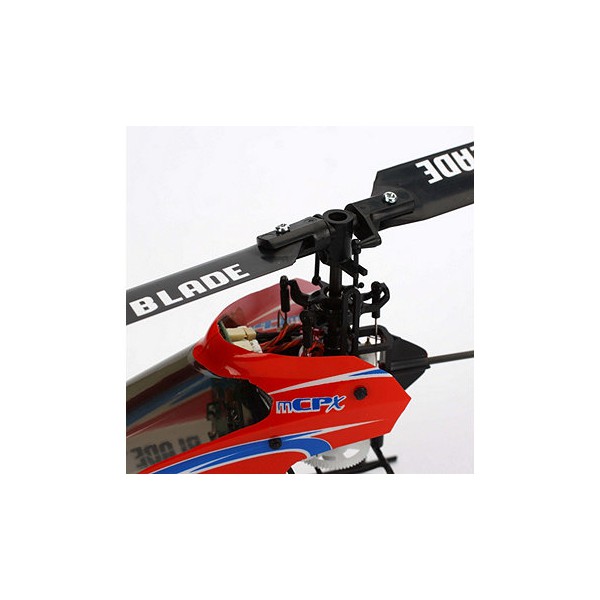

Using an integrated AS3X™ Digital Flybarless System, the heli gets up in the air without a mechanical flybar. The core of AS3X technology is a sophisticated, 3-axis digital sensor that stabilizes the rotor head and functions as a heading hold gyro. This, along with its powerful motors and high-precision cyclic servos, gives the mCP X v2 a sense of stability and responsiveness no other collective-pitch heli its size can match.

The helicopters' software has been designed to be used with the DX4e, DX5e, DX6i, DX7, DX7s and DX8 transmitters, while allowing commonly used collective pitch functionality such as throttle hold or stunt mode.

Key features

AS3X™ Digital Flybarless System
Integrated flybarless unit increases stability, control and power, providing the user the ultimate ultra-micro heli experience for indoor and outdoor use
Capable of maneuvers such as inverted hover, loops, flips, rolls, funnels, and hurricanes
Very low disc loading results in high maneuverability and good collective response
Lightest heli in its class
Robust, long-lasting dual-ball bearing supported linear cyclic servos
Two sets of blades included, fast-flight and high-performance
Two high-performance flight batteries included

Specifications

Size/Scale: Ultra Micro
Experience Level: Intermediate
Recommended Environment: Indoor/Outdoor
Rotor Type: Collective Pitch Single Rotor
Completion Level: Bind-N-Fly
Length: 9.25 in (235mm)
Gross Weight: 1.60 oz (45.5g)
Tail Rotor Diameter: 1.50 in (38.1mm)
Main Rotor Diameter: 9.65 in (245mm)

Data sheet

  • Manufacturer : Blade
  • Level of difficulty (1 to 3) : 3

What you need to complete

You will need a Spektrum DX4e, DX5e, or any programmable DSM2 or DSMX transmitter

Videos

Spare parts for DISC.. Helicopter mCP X 2 BNF

Main Motor w/Pinion: mCP X

BLH3503

Blade In stock at the supplier In stock at the supplier 19,99 €

Landing Skid and Battery Mount: mCP X

BLH3504

Blade In stock at the supplier In stock at the supplier 7,99 €

DISC.. Main Frame w/Hardware: mCP X

BLH3505

Blade Last item in stock at our store Last item in stock at our store 12,99 €

Main Gear: BMSR, mCP X, mSRX

BLH3506

Blade Limited stock at our supplier Limited stock at our supplier 5,99 €

DISC.. Carbon Fiber Main Shaft w/Collar & Hardware: mCP X

BLH3507

Blade In stock at our store In stock at our store 17,99 €
