Add the realism of functioning retracts to your 15- to 25-sized airplanes. E-flite's completely self-contained retract systems require no air tanks, complex linkages, or even extra servos. They simply need to be bolted into place and plugged into the receiver. A specially designed Y-harness is also included, allowing pilots to use a single receiver channel to control all retract units.
Key features
- Robust landing gear strut and mounting bracket
- Integrated electric motor with a micro PCB
- Built-in overcurrent protection

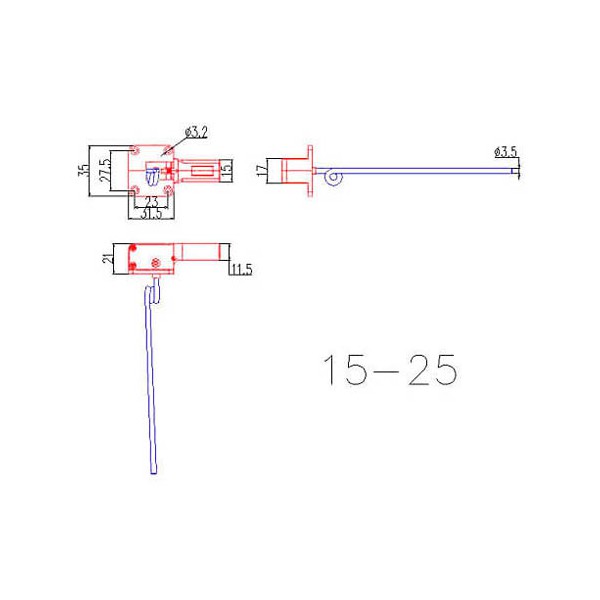

- Strut Diameter: 0.137 in (3.5mm)
- Aircraft Weight: 4.00 - 7.00 lb (1.80 - 3.10kg)
Specifications
Application: | Aircraft 15-25 size |
Speed: | 1.25 sec @4.8V; 1.00 sec @ 6.0V; 0.75 sec @ 7.4V |
Weight: | Main gear: 1.4 oz (39.5g) each; Nose gear: 1.7 oz (48.0g) |
Motor Type: | Electric brushed can |
Connector Type: | JR, universal |
Gear Type: | Metal |
Current Draw Idle: | 5mA |
Current Draw Stall: | 200mA |
Voltage: | 4.8V-7.4V |
Data sheet
- Manufacturer : E-Flite
15 - 25 Tricycle Electric Retracts
