More info

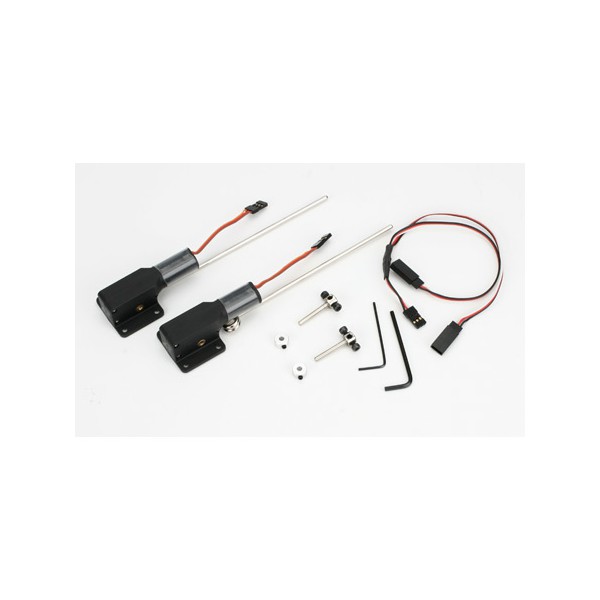

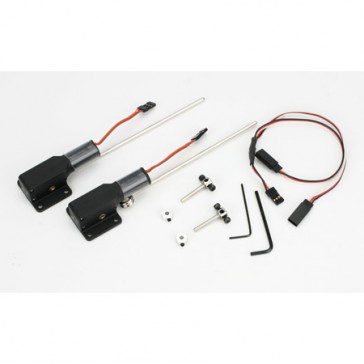

You don’t have to be a master modeler to add the realism of functioning retracts to your airplane. The completely self-contained E-flite® retract system requires no air tank, complex linkages or extra servo. It can simply be bolted into place and plugged into the receiver. A specially-designed Y-harness is included that allows for the use of a single receiver channel to control all retract units.
Key features
- Integrated electric motor with a micro PCB
- Built-in over-current protection
- Aircraft weight: 2.00–4.50 lb (0.90–2.00 kg)
- Strut diameter: 0.118 in (3mm)
- Strut length: .866 in (22mm)
Specifications
Application: | Aircraft 10–15 size |
Speed: | 4.8V (1.25 sec), 6.0V (1.0 sec), 7.4V (.80 sec) |
Weight: | Complete Set: 4.2 oz (119 g); Nose Gear: 1.6 oz (45 g); Main gear 1.3 oz (37 g) each |
Motor Type: | Electric brushed can |
Connector Type: | Universal |
Gear Type: | Metal |
Current Draw Idle: | 5mA |
Current Draw Stall: | 200mA |
Voltage: | 4.8–7.4V |
Data sheet
- Manufacturer : E-Flite
10 to 15 - Size Electric Retracts
89,99 €
