TRX 3.3 Engine Ips Shaft W/ Re

Extreme Power!
Fueled by Passion.
Where Power Meets Technology®

Traxxas TRX® Racing Engines are fueled by a passion for performance, innovation and quality. Traxxas engineers are dedicated to redefining the state of the art in engine technology. This includes listening to our customers, and developing the highest standards and conventions that would meet the performance challenge.

The TRX 3.3 Racing Engine draws from a legacy of precision Traxxas engine design and manufacturing. Traxxas has always been at the forefront of innovation, beginning with the powerful and reliable TRX® Pro.15. Next, the Traxxas EZ-Start® system ushered in a new era of convenience and ease of use with true, push-button electric starting. EZ-Start later evolved to incorporate built-in diagnostic functions, LED indicators, a constant-voltage glow plug circuit, and more powerful starter motors. Then came the TRX 2.5, a marvel of award-winning power and technology that set the bar for Ready-To-Race® performance to unimaginable new heights.

Fast forward to the present (2006) and 14-years of nitro engine development have culminated into the most powerful TRX engine ever made, the TRX 3.3 Racing Engine. It embodies everything we've learned from over a decade of making engines more powerful, more reliable, and easier to use. The TRX 3.3 Racing Engine is so powerful it establishes a whole new classification of power…. Extreme Power!

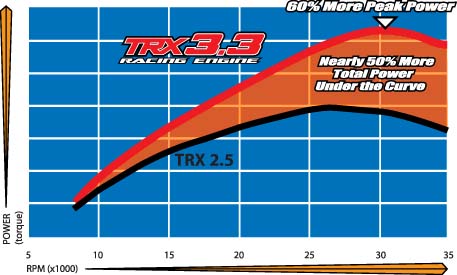

The TRX 3.3 produces an extreme 60% more peak horsepower compared to the TRX 2.5! The overall power under the curve is nearly 50% greater to deliver the smooth, linear power output TRX engines are famous for. The TRX 3.3 Racing Engine offers thoroughbred race engine performance that's absolutely second to none. There's no penalty to pay for having more power either. The TRX 3.3 Racing Engine is equipped with EZ-Start push-button electric starting and simple, reliable tuning from the two-needle composite slide carburetor. Plus it's backed by the support and reliability you expect from Traxxas including the Exclusive Lifetime Engine Replacement Plan.

The TRX 3.3 Racing Engine is truly the pinnacle of power and reliability and represents the commitment to total performance Traxxas carries to the customer.

• Extreme Power
• Reliability
• Ease of Use
• Unmatched Support

Traxxas Lifetime Engine Replacement Plan
Years ago we saw a need for our customers to have an easy and affordable way to keep the performance in their nitro models factory fresh. Our solution is our Lifetime Engine Replacement Plan, developed exclusively for our customers. Engines wear out over time and need to be rebuilt. Rebuilding engines from parts can be costly and time consuming, let alone outside the mechanical skills of many enthusiasts. With the Traxxas Lifetime Engine Replacement plan, a worn out or damaged engine can be traded in for a brand-new, factory-fresh TRX Racing Engine right away by simply exchanging your worn engine at your local hobby store. The cost is 1?2 of the retail price of the new replacement engine. It's less expensive than rebuilding the engine yourself and you get the peace of mind knowing your engine is brand new (not refurbished), and ready to deliver the power and reliability you expect.

Extreme Upgrades
The Lifetime Engine Replacement Plan is the extreme power upgrade path for any model equipped with a TRX 2.5 or 2.5R Racing Engine. When you're ready, you can use the plan to trade up to the TRX 3.3 Racing Engine and watch your speed and acceleration soar. The TRX 3.3 is 100% "drop-in" compatible with TRX 2.5 and 2.5R equipped models. For less than the price of a poorly supported aftermarket engine, you can have extreme TRX 3.3 power with 100% drop-in installation, EZ-Start electric starting, full Traxxas reliability and support, and power that is absolutely second to none. Ask your hobby dealer for all the details.

Piston and Sleeve
The lightweight reciprocating assembly allows higher revving performance and reduced parts stress. The piston is composed of proprietary material resulting in less wear and extended engine life. The material for both the piston and sleeve (true ABC construction) were selected for their consistent fit throughout the engine's operating temperature range. The sleeve ports are larger offering more efficiency and better scavenging for increased power.

IPS Crankshaft
The innovative crankshaft design has dyno-proven timing and port flow to optimize fuel delivery into the engine. The crank is surface hardened, precision ground and micro-polished for superior life and durability. Traxxas IPS crankshaft design makes the TRX 3.3 compatible with any model equipped with a TRX 2.5 or TRX 2.5R Racing Engine.

Connecting Rod
Knife-edged connecting rod reduces internal drag and turbulence designed to handle the power of the TRX 3.3. The channeled design directs oil flow down to the crankshaft.

TRX Composite Slide Carburetor

The TRX 3.3 is equipped with same high-performance slide carburetor that has reliably powered a generation of TRX Racing Engines. The slide type carburetor provides less restrictive, straight through airflow for more power and improved throttle response. Because it is molded, Traxxas engineers incorporated superior internal design enhancements and precision not possible with traditional machined carburetor. The composite material does not transfer heat like aluminum for more consistent tuning.

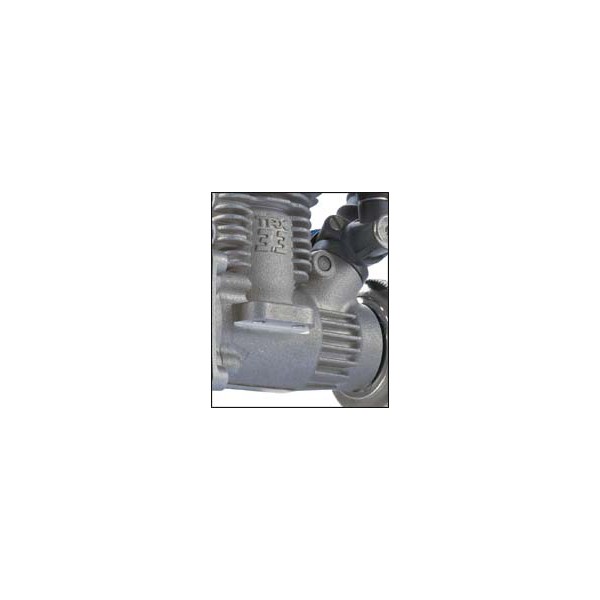

Crankcase

The TRX 3.3 uses a sophisticated crankcase engineered with high-tech porting, and cooling refinements to boost power output. Precision casting provides the strength needed for the TRX 3.3's high power output. The external dimensions allow the TRX 3.3 to fit anywhere a TRX 2.5 or TRX 2.5R was installed.

Ball Bearings
The quality and smoothness of an engine's ball bearings contribute to the life and performance of the engine. The TRX 3.3 uses only top-grade, ultra-high performance, large diameter ball bearings. Top quality bearings improve power by reducing parasitic friction. The rear engine bearing uses a high-tech composite cage for reliable operation at engine speeds that approach 50,000rpm

Straight-through Exhaust Flow

The rear facing round exhaust port provides unrestricted "straight-through" exhaust flow. There are other rear exhaust engines, but the innovative shape of the TRX 3.3's exhaust port was carefully engineered to provide unrestricted exhaust flow while at the same time, maintaining a low exhaust port height. The low exhaust port height provides a longer duration power stroke for increased efficiency and total power output.

O-Ring Exhaust Gasket
The exhaust header features an extra-tough, finned mounting base that dissipates heat and is sealed with a reliable O-ring gasket. This virtually eliminates troublesome, messy exhaust leaks that steal engine power and efficiency.

PowerTune™ Head

The giant Powertune machined aluminum cooling head promotes even heat distribution for stable engine temps and rock-solid tuning consistency. The uniquely designed molded head protector is securely fastened to the top of the head with precision hex screws.

Head Protector
The impact resistant head protector is secured to cylinder head with screws so it won't fall off. It's designed to absorb harsh impacts and to protect your cylinder head from rollovers.

High-Volume Air Filter
The air filter is often overlooked as being a key to engine performance and life. Not so with the TRX Racing Engines! It's ultra low-restriction air filter provides superior air-flow and filtration for more power and long engine life. The inside of the filter mates perfectly to the carburetor to eliminate turbulence as air passes through the carburetor. The two-stage design features a reusable oiled foam element that's easy to maintain, and a built-in fine-mesh pre-filter.
