E-Flite

4-Site 3D FF (Flat Foamy) 800mm PNP

L'E-flite® 4-Site 3D FF est une alternative biplan au très populaire Eratix 3D FF qui offre des performances de voltige agressive, ainsi que l'aptitude au vol lent et sportif des modèles de classe similaire

More details

E-Flite

EFL02975

In pre-order New item in pre-order The announced products is not available yet

 Shippingcosts from 6.99€
or collect for free at the shop. .

269,99 €
*


Notify me when available

More info

The E-flite® 4-Site 3D FF (Flat Foamy) 800mm offers the aggressive aerobatic plus smooth sport and slow-flying performance of similar class models – without all the hassles of buying components for and building one! It bolts and snaps together so it can be ready to fly in less time than it takes to charge a battery compared to the glue, tape, and many hours it usually takes to assemble other "flat foamy" aircraft. It's a biplane alternative to the best-selling Eratix 3D FF with a shorter wingspan but more wing area for lower wing loading overall. Its lightweight yet extremely durable EPP airframe is mostly factory-assembled and includes three durable and precise metal-geared servos on all the control surfaces. The factory-installed power system features a 3S-compatible brushless motor matched to a Spektrum Avian Smart ESC compatible with Smart and non-Smart 850–1000mAh batteries. The BNF Basic version is also equipped with an AR630+ receiver to deliver real-time telemetry data, enhanced AS3X+, and optional-use SAFE Select technologies. It's small enough and light enough to be flown indoors in gymnasiums and other similar spaces or outdoors in yards, parks, and sports fields, making it a versatile addition to the hangar for a wide range of pilots!

Skill Level 3 – Experience required

Skill Level 3 aircraft, like this one, are suitable for more experienced RC pilots with the skills to assemble, set up, and fly similar class models. This PNP version requires more experience and skills to assemble and fly than the BNF Basic version because you must install a receiver that does not already include properly tuned AS3X+ and SAFE Select technologies. It's not a suitable first-ever RC aircraft for new pilots or first-ever aerobatic/3D model for low-time RC pilots. You should have the experience and skills necessary to assemble and successfully fly models like the E-flite UMX Ultrix, UMX Timber X, T-28 Trojan 1.1m, Sportix 1.1m, Timber X 1.2m, or other similar class models before attempting to fly the 4-Site 3D FF PNP version.

Plug-N-Play® Completion Level

This Plug-N-Play (PNP) version comes out of the box with a factory-installed power system and servos that are ready to connect to the compatible receiver of your choice (sold separately), plus the transmitter and battery you provide (also sold separately). Simply install the receiver, finish any final assembly, and fly!

High Performance

The factory-installed brushless power system features a specially tuned Spektrum outrunner motor. This power system delivers plenty of thrust for unlimited vertical and 3D performance with 3S 850–1000mAh batteries!

Uniquely Capable

Like other flat foamy models, the 4-Site 3D FF is capable of slow cruising, smooth sport flying, basic aerobatics, and even aggressive 3D flying—all in the same flight! It offers a truly “mild to wild” flight experience that intermediate to experienced pilots will appreciate, whether indoors in gymnasiums or outdoors in yards, parks, sports fields, and beyond.

Durable Design

Three factory-installed digital servos with metal gears on all the control surfaces, plus construction with carbon fiber and composite-reinforced, high-density EPP, deliver a lightweight yet stiff and durable airframe. In the unfortunate event you damage any airframe parts or components and can't repair them, a full line of replacement/spare parts is readily available.

Smart Technology

The 4-Site 3D FF is equipped with an exclusive Spektrum Avian Smart Lite ESC that can provide a variety of real-time power system-related telemetry data including motor RPM, current, overall battery voltage, and more – with Smart and non-Smart batteries – via compatible receivers (including the AR630+) and Spektrum AirWare equipped transmitters (including the DX6e and DX8e, DX6 G2/3 and DX8 G2, the DX9, NX6 to 20, iX12 to 20 and others) while you fly.

Key features

  • Extremely durable yet lightweight, high-density EPP airframe with carbon fiber and composite reinforcements
  • Factory-finished in a high-contrast, high-visibility trim scheme for excellent orientation
  • Landing gear snaps into place for easy installation, removal and replacement

Specifications

Approximate Assembly Time Less than 1 hour
Battery Sold Separately
CG (Center of Gravity) 87mm (80-91mm Range)
Charger Sold Separately
Completion Level Plug-N-Play
Connector Type IC2
LiPo Compatibility 3S
Material EPP
Minimum Required Radio Full-range 4+ channel transmitter and receiver
Minimum Speed Control 30A Avian Smart Lite
Motor Size 2408-1300Kv
Motor Type Brushless
Power Type Electric

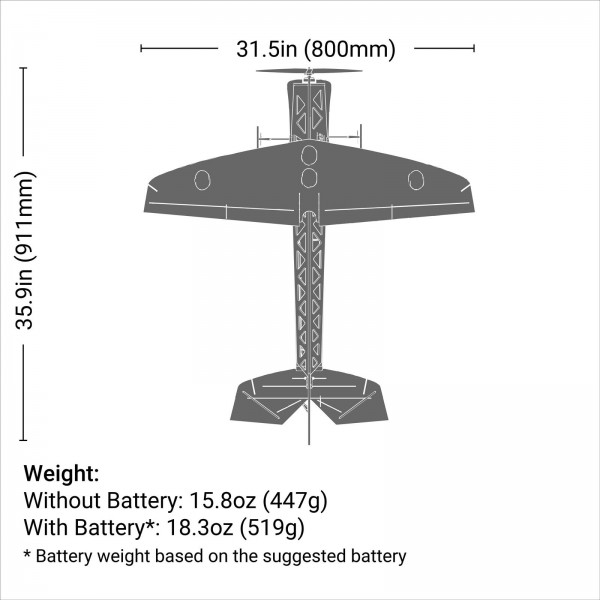

Product Length 36.1" (917 mm)
Product Weight Without Battery: 15.8oz (447g) / With Recommended 3S 850mAh Flight Battery: 18.3oz (519g)
Propeller Size 9 x 4.6
Radio Sold Separately
Receiver Sold Separately
Recommended Motor Battery 3S 11.1V 850–1000mAh LiPo battery with IC2 connector
Servos Included
Skill Level Level 3
Speed Control Included
Technology Smart
Wingspan 31.5" (800 mm)

Data sheet

  • Manufacturer : E-Flite
  • Matter : EPP / EPO Foam
  • Kits : Indoor
  • Type : Plug 'n Play
  • Drive : Electric

What you need to complete

  • (1) Full-range 4+ channel transmitter and receiver
  • (1) 3S 11.1V 850–1000mAh LiPo battery with IC2 connector (or use a suitable IC2 adapter, sold separately)
  • (1) Compatible LiPo charger (plus a suitable IC2 adapter/charge lead, including SPMXCA320, sold separately)

Composition Kit

  • (1) E-flite 4-Site 3D FF 800mm with:
  • (1) Spektrum Brushless Outrunner Motor (installed)
  • (1) Spektrum Avian 30-Amp Smart Lite Brushless ESC (installed)
  • (3) Spektrum Sub-Micro Digital, Metal-Geared Servos (installed)
  • (1) Product Manual
