Quicrun Fusion 8IGHT for Rock Crawler 2300kV

Maximize

Electronics Crawler Combos Electronics & Motors

Quicrun Fusion 8IGHT for Rock Crawler 2300kV

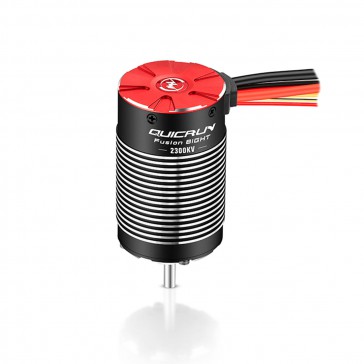

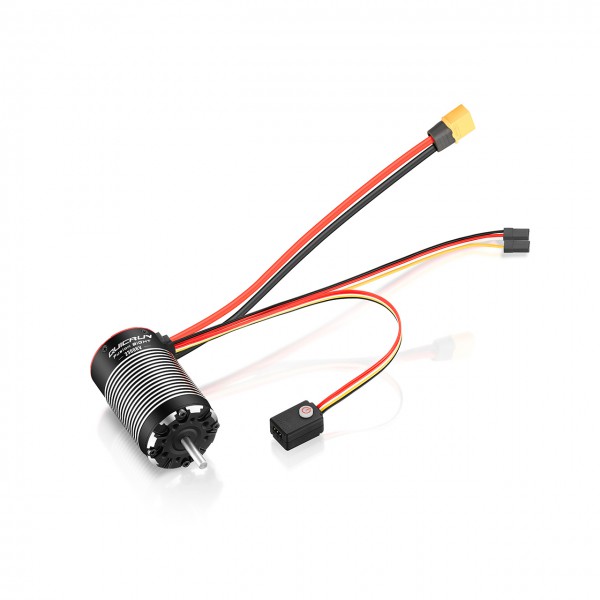

Hobbywing Quicrun Fusion 8IGHT brushless motor/ESC for Rock Crawler 2300kV

More details

Manufacturer: Hobbywing

Reference: HW30120404

Stock status: Limited stock at our supplier. Shipment in 2 days, without warranty.

Shippingcosts from 6.99€
or collect for free at the shop. .

MCM Price : 154,99 €

Quantity Maximum quantity reached.

Notify me when available

More info
Specifications
Data sheet

More info

QuicRun Fusion 8IGHT

Crawler integrated power system

Integrated Design

The Fusion 8IGHT is the industry’s first Field-Oriented Control (FOC) integrated power system, specifically designed for1/8^thscale models. Its compact frame layout measures 42×69mm, making it a powerful yet space-efficient solution for builders. The integrated design creates an ultra easy to install system, that makes for an extremely clean setup.

4S High Power Crawling ESC

The ESC is designed to support up to

4S LiPo batteries
Delivering a maximum output current of up to 80A
The Fusion 8IGHT is based on an 1/8^th scale sized motor, but packs the performance to power large scale trucks and builds that require more than average crawling power.

Adjust Drag Brake Force in Real Time

Connect the yellow signal wire to an available channel on the receiver to enable real-time adjustments of the drag brake from your radio.
This feature allows on-the-fly drag brake tuning, providing adaptability to various application environments for optimal performance.

FOC Drive, Throttle Linearity, High Torque, Nearly Silent

The Fusion 8IGHT is a FOC brushless system. Hobbywing’s unique Field-Oriented-Control (FOC) provides ultra smooth control, while providing response and feel that is 2nd to none. Not only is the Hobbywing FOC tech extremely smooth and powerful, it provides nearly silent operation and an amazing overall driving experience.

Smart Torque - Easy to Drive - Amazingly Smooth

Ascents, and climbs : The ESC intelligently adjusts torque output to match driving conditions, automatically increasing torque to overcome resistance and accelerate uphill.

Decents : Reducing torque to stabilise vehicle speed when descending. This smart torque management ensures precise speed control and smooth performance, delivering a consistently responsive driving experience.

Note: When operating in normal mode, the ESC does not have a fixed speed function, providing a driving experience similar to that of a traditional brushed motor.

Applicable to All Weather & Track Conditions

The entire power system is rated IP67, offering outstanding waterproof and dust-proof performance.

This robust protection allows it to tackle challenging terrains such as sand, ice, snow, and water, ensuring reliable operation in diverse climatic conditions.
Note: The IP67 protection level mentioned above provides splash-proof, water-resistant, and dust-proof capabilities under normal use. However, it is not permanently effective, as protective performance may diminish over time due to regular wear and aging. Avoid prolonged immersion in water, as it may result in product damage.

Super Internal BEC

The Fusion 8IGHT features a built-in high-performance BEC with a maximum output current of 13A
Adjustable output voltages of 6V/7.4V/8.4V
This flexibility allows it to effortlessly power a wide range of standard and high-voltage servos, as well as peripheral electronic devices such as light sets and winches.

Supports Three Operating Modes

The system supports multiple operating modes to meet various application needs.

Fixed Speed Mode (direct forward and reverse)
Normal Mode (forward and reverse with brake)
Normal Mode without fixed speed functionality

Supports Various LED / LCD Programming Boxes

Offering a more comprehensive display and enhanced programming capabilities.

A Vast Variety of Parameters

The Fusion 8IGHT offers a wide range of customisable parameters, with a total of 13 adjustable settings to accommodate diverse application requirements and fine-tune performance.

Specifications

Product Name		QuicRun Fusion 8IGHT
Product Number		30120404
Type	Scale	1/8^th
	Brushed/Brushless	Brushless
	Sensored/Sensorless	Sensored
	Waterproof	Waterproof
Specifications	Cont./Peak Current	80A/240A
	Input Voltage	2-4S LiPo,6-12 Cells NiMH
	BEC BEC Output	6V/7.4V/8.4V adjustable,continuous current 6A (Switch mode)
	KV	2300KV
	Motor Poles	4
Wires & Connectors	Input Wires	Black-13AWG-250mm1 Red13AWG-250mm1
Wires & Connectors	Input Connectors	XT60
ESC Programing via	SET Button on ESC	Not Supported
	LED Program Box	Supported
	LCD G2 Program Box/LCD PRO	Supported
	OTA Programmer	Not Supported
	Program Port	Independent programming port(switch position)
Firmware	Firmware Upgrade	Not Supported
Size & Weight	Diameter / Length of motor	42mm/69mm
	Shaft diameter / exposed shaft length	5mm/18.5mm
	Weight	338（including wires&connectors）
Applications	Vehicles	1/8^th Rock Crawler

Data sheet

Manufacturer : Hobbywing
