Electronics Brushless Speed controller Electronics & Motors

Xerun XR14 Brushless Regler 70A 2s LiPo

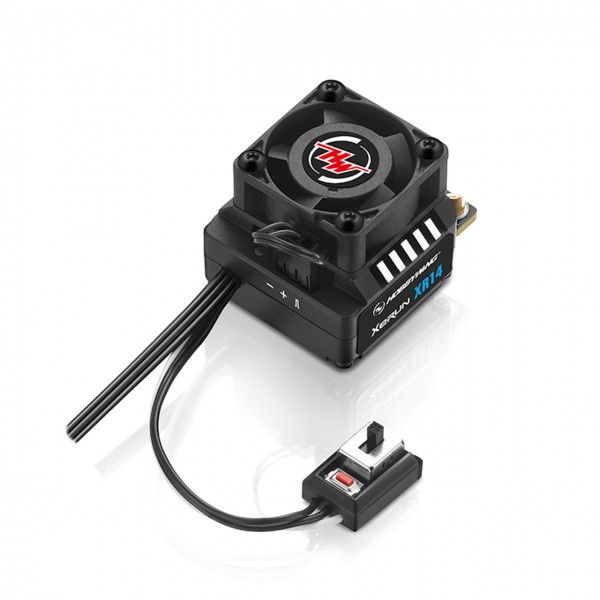

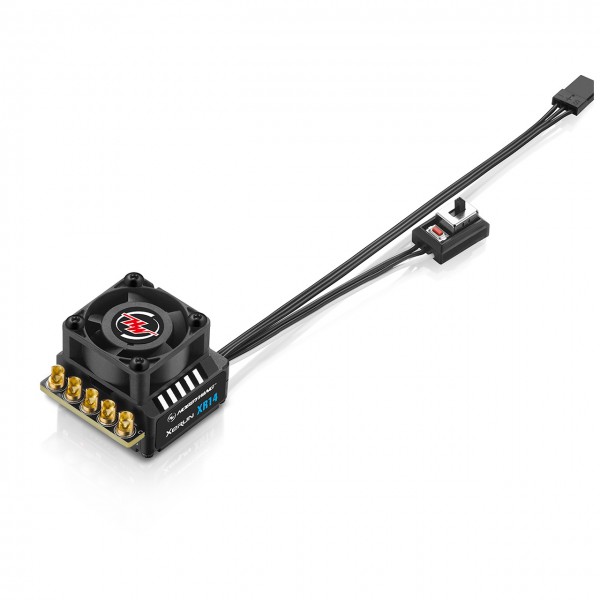

Hobbywing Xerun XR14 Brushless ESC 70A 2s LiPo

More details

Manufacturer: Hobbywing

Reference: HW30112622

Stock status: Limited stock at our supplier. Shipment in 2 days, without warranty.

Shippingcosts from 6.99€
or collect for free at the shop. .

MCM Price : 96,99 €

Quantity Maximum quantity reached.

Notify me when available

More info
Specifications
Data sheet

More info

XeRun XR14

Built for Competition

An all-round competition-grade ESC, meticulously designed with advanced software to deliver peak performance for both 1/14^th on-road and off-road vehicles.

High power output, excellent cooling

The maximum continuous output current of the ESC is as high as 70A
The full-metal heat sink top ensures efficient heat dissipation, keeping the ESC within safe operating temperature, even during intense use.

Built-in reverse polarity protection circuit

Built-in reverse polarity protection prevents damage from incorrect battery connection, safeguarding your ESC from potential issues caused by reverse battery polarity.

Note: The reverse polarity protection of the entire power system can be achieved only by using the non-polarity capacitor sold as an option.
The standard capacitor of the ESC does not have this protection. Reverse connection of the battery will damage the capacitor, but the ESC should not be damaged. Replacement of the capacitor is needed immediately.

High-Voltage Servo Support with Built-in BEC

Equipped with a built-in switch mode BEC.
A maximum continuous current of 4A
A peak of 8A
Switchable output voltages of 6V/7.4V
This ensures ample power supply to high-torque, high-voltage servos.

Data Logging for Performance Monitoring

The ESC features a built-in data logging function that tracks critical data such as minimum voltage, maximum current, RPM, ESC temperature, and motor temperature.
By connecting the ESC to the OTA Bluetooth module and the HW Link mobile app, users can monitor real-time data including throttle position, voltage, current, temperature, and RPM. The built-in memory in the OTA module allows data storage for post-race analysis through the app, enabling fine-tuning and detailed insights.

Note: Bluetooth effective range is approximately 5 meters.

Extensive Parameter Adjustments

The ESC offers 26 adjustable parameters, including PWM frequency, softening, initial throttle response, and Boost/Turbo timing. This provides precise control over power delivery, enhancing the driving experience with fine-tuned customization.

Dual application modes

Designed with two pre-set modes, 1/14^th On-Road and 1/14^th Off-Road, this ESC is ready to race out of the box.

Versatile Compatibility

While optimized for 1/14^th Blinky and Boost racing, this ESC is also compatible with 1/10^th Blinky competitions, offering flexibility across different racing formatsWhile optimized for 1/14^th Blinky and Boost racing, this ESC is also compatible with 1/10^th Blinky competitions, offering flexibility across different racing formats

Specifications

Product Name	XERUN XR14
Product Number	30112622
Type	Scale	1/14^th、1/12^th、 1/10^th
	Brushed/Brushless	Brushless
	Sensored/Sensorless	Sensored
	Waterproof	NO
Specifications	Cont./Peak Current	70A/300A
	Input Voltage	2S Lipo
	BEC BEC Output	Switch Mode 6V/7.4V @4A
Wires & Connectors	Input Wires	Black-10AWG-200mm1 Black-14AWG-175mm2
	Output Wires	Black-14AWG-175mm*3
	Input Connectors	No
	Output Connectors	No
ESC Programing via	SET Button on ESC	Not Supported
	LED Program Box	Not Supported
	LCD G2 Program Box	Supported
	LCD PRO	Supported
	OTA Programmer	Supported
	Program Port	Shared with Fan port
Data Recording	Extreme value	Supported
	Real-time Data	Supported
	Historical data (Graph)	Supported
Firmware	Firmware Upgrade	Supported
Size & Weight	Size	35.231.328.5mm
Size & Weight	Weight	66g (Included wires)
Applications	Motors	Sensored/Sensorless Brushless Motors
	Vehicles	1/14 Scale Racing, 1/12&1/10 Light load vehicles with zero-timing(blinky) mode
	KV Rating/T Count	XERUN 2848

Data sheet

Manufacturer : Hobbywing
