Whether it's 1/10 On-Road or 1/10 Off-Road, the action starts with the Razerten G2 Combo. The Razerten G2 60A ESC is always the top choice when reliability, efficiency, and durability are paramount. With extensive adjustment and programming options, it leaves nothing to be desired. All cables are pre-wired and ready to connect, no soldering required. Paired with the 3000kV Razerten motor, it delivers a sensorless experience with immense power. The motor's disassemblable CNC machined aluminum housing and precision-balanced rotor with high-quality ball bearings are top-class features.
Key features
Features (ESC):
- More compact and modern than its predecessor
- Fully water and dustproof ESC (not applicable to the motor)
- ON/OFF switch with setup button
- S-BEC with 6V and 3A peak current
- Plug and Play, battery and motor connectors pre-soldered
- Multiple protection features: low voltage cutoff, thermal protection, and signal loss protection
- Easy programming via setup button
- Separate programming port, easy connection for optional LED programming card
Features (Motor):
- 4-pole rotor design for high torque and quick response
- CNC machined high-strength aluminum housing for optimal heat dissipation
- Motor winding made of pure, double-insulated copper wire
- Precision ball bearings for smooth operation and longevity
- Highly flexible silicone connection cables with pre-soldered 4mm connectors
- High-strength, polished 3.17mm steel rotor shaft
Specifications
ESC | |
Item No.: | R01225 |
Current: | 60A |
Type: | Sensorless |
Cells: | 2-3S LiPo / 6-9 cells NiMH |
Motor Limit: | 2S: 3652/3660 motor, kV = 6000 3S: 3652/3660 motor, kV = 3500 |
BEC: | 6V @ 3A |
Fan: | Yes, powered by BEC |
Programming Port: | Yes |
Battery Connection: | T-Plug |
Motor Connection: | 4mm |
Dimensions: | 46 x 36.5 x 35.5mm |
Weight (incl. Cables): | 98.2g |
Application: | 1/10 On-Road, Buggy, Short Course Truck (2WD) |
Motor | |
Item No.: | R01230 |
kV Rating: | 3000kV |
Cells: | 2-3S |
Poles: | 4 |
Outer Diameter: | 35mm |
Length: | 52mm |
Shaft Diameter: | 3.17mm |
Shaft Length: | 15mm |
Weight (incl. Cables): | 198g |
Application: | 1/10 Onroad, Buggy, light SCT/Truck/MT |
Data sheet
- Manufacturer : Robitronic
Composition Kit
- 1x Razer ten G2 ESC with 60A, pre-wired with battery connector and motor connection
- 1x Razer ten Motor with 3000kV, pre-wired with 4mm connectos
- 1x Manual

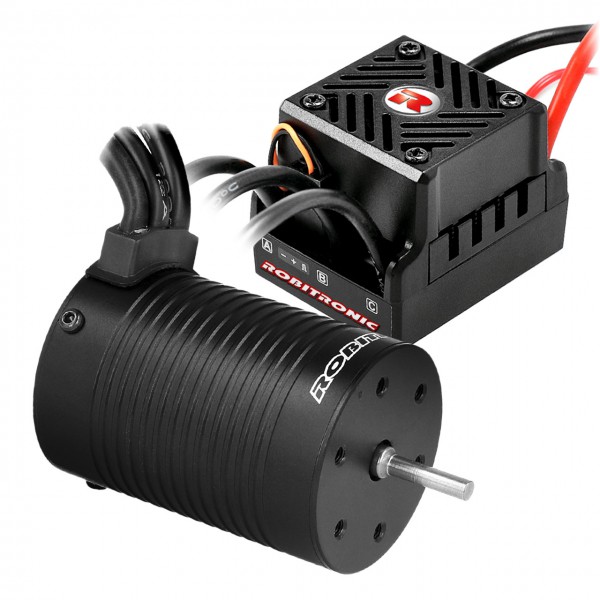

Razer ten G2 Brushless Combo 50A 3652 3000kV
78,89 €
