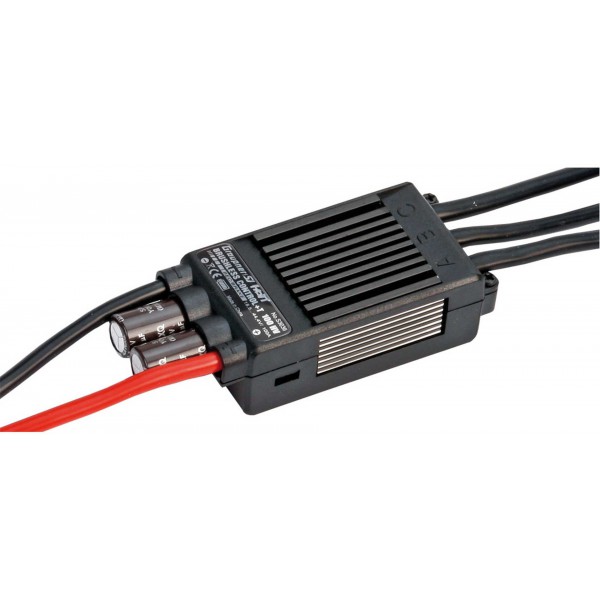

BRUSHLESS CONTROL+ T100 HV TELEMETRIE BEC

Graupner - Brushless ESC +100 HV G6

More details

Manufacturer: Graupner

Reference: GRAS3036

Stock status: In stock at our supplier. Shipment in 2 days, without warranty.

Shippingcosts from 6.99€
or collect for free at the shop. .

MCM Price : 299,00 €

Quantity Maximum quantity reached.

Notify me when available

More info
Specifications
Data sheet

More info

"Brushless Control+" programmable from the Hott transmitter.....

speed controller for brushless motors with internal HoTT telemetry functions:

Functions:

Opto Coupler
Easy programming of the transmitter paths
Graupner HoTT-Telemetry for easy programming of the controller
Graupner HoTT telemetry data and warnings for voltage, current, temperature, speed and capacity
Programming and telemetry options:
Battery type NiCd/NiMH/LiIo/LiPo/LiFe
Down control voltage
control type soft/hard
direction of rotation
Motor Timing
startup time
start torque
Brake on/off
Reverse mode for boot/auto on/off
RPM control mode for helicopter on/off
adjustment velocity in speed control mode
number of poles of the motor
gear reduction

telemetry warnings:

Undervoltage limit
maximum current
minimum speed
max. Temperature
max. Capacity

telemetry display:

current voltage
current and maximum current
current and maximum speed
current and maximum temperature
capacity

Specifications

Cells:	12-30NiXX/5-12 Lipo
Current duration (A):	100
Max current (A):	120
Weight (g):	126
BEC:	5-8V/5A
Length (mm):	87
Type:	Brushless
Wide (mm):	36
Height (mm):	21
BEC or OPTO:	BEC

Data sheet

Manufacturer : Graupner
