Graupner

BRUSHLESS CONTROL+ T100 BEC

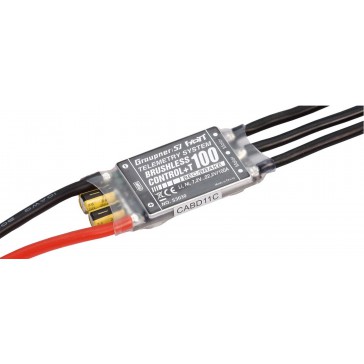

Graupner - Brushless ESC +T 100 BEC G6 2-6S

More details

Graupner

GRAS3030

Out of stock Can not be ordered because not in stock at our supplier. Delivery time unknown

 Shippingcosts from 6.99€
or collect for free at the shop. .

156,90 €
52,30 € *

Notify me when available

More info

"Brushless Control+" programmable from the Hott transmitter.....

speed controller for brushless motors with internal HoTT telemetry functions:

Functions:

  • Opto Coupler
  • Easy programming of the transmitter paths
  • Graupner HoTT-Telemetry for easy programming of the controller
  • Graupner HoTT telemetry data and warnings for voltage, current, temperature, speed and capacity
  • Programming and telemetry options:
  • Battery type NiCd/NiMH/LiIo/LiPo/LiFe
  • Down control voltage
  • control type soft/hard
  • direction of rotation
  • Motor Timing
  • startup time
  • start torque
  • Brake on/off
  • Reverse mode for boot/auto on/off
  • RPM control mode for helicopter on/off
  • adjustment velocity in speed control mode
  • number of poles of the motor
  • gear reduction



telemetry warnings:

  • Undervoltage limit
  • maximum current
  • minimum speed
  • max. Temperature
  • max. Capacity



telemetry display:

  • current voltage
  • current and maximum current
  • current and maximum speed
  • current and maximum temperature
  • capacity

Specifications

Cells: 6-18NiXX/2-6 Lipo
Current duration (A): 100
Max current (A): 110
Weight (g): 75
BEC: 5-8V/3A
Length (mm): 55
Type: Brushless
Wide (mm): 30
Height (mm): 10
BEC or OPTO: BEC

Data sheet

  • Manufacturer : Graupner

BRUSHLESS CONTROL+ T100 BEC

156,90 €
