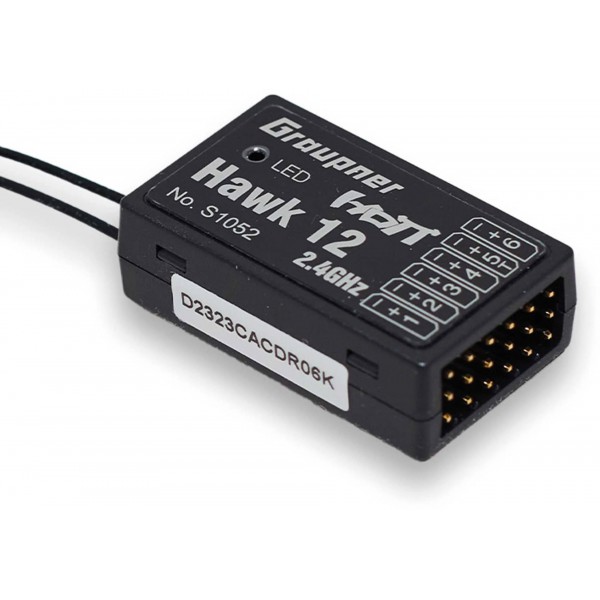

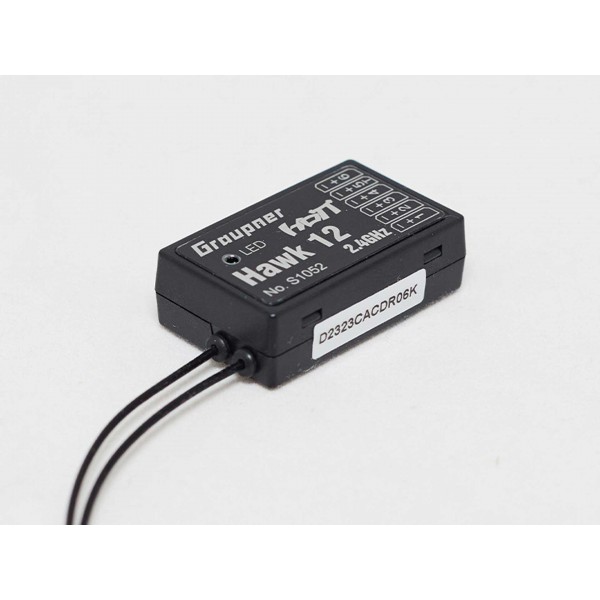

Hawk 12 HoTT - 2.4 GHz receiver

With the Hawk 12, Graupner presents a powerful 6-channel receiver with integrated 3-axis gyro and particularly vibration-insensitive 3-axis acceleration sensor, diversity antennas, vario and attitude mode for fixed-wing models or rescue mode and attitude mode for helicopters.

With GRAUPNER HoTT 2.4GHz technology, the receiver has a secure hopping telemetry transmission high-frequency section with high-quality components and state-of-the-art software. The receiver transmits the parameters "receiver voltage", "receiver temperature", "signal strength", "altitude", "altitude difference (vario)" to the transmitter without additional sensors. It is also possible to transmit the Euler angles to the transmitter and display them there.

The antenna amplifier together with the antenna diversity ensures an enormous range. The faster 32-bit L4 processor guarantees energy-saving operation and the higher performance ensures that the Hawk 12 can also be used as a flybarless system for helicopters and as a flight controller for copters. Of course, the integrated Hawk gyro system can also be used perfectly for fixed-wing models. There are 4 different gyro modes: OFF, normal stabilization, heading lock, gyro rate mode and attitude mode. When set correctly, the gyro rate mode enables knife-edge flight and torquing without control corrections. Extremely quick, easy and convenient to set via the Hott transmitter telemetry menu.

Just like its namesake, the falcon, the Hawk 12 embodies determination, power and precision. Go on the hunt for the perfect flight with the Hawk.

Wing models

•     Stabilization of the flight model in difficult wind conditions for up to 3 axes
•     Natural flight behavior due to proportional gyro suppression
•     The 3-axis gyro means that even difficult-to-control aerobatic models can be flown very smoothly and aerobatics are extremely simplified
•     Flight figures can be flown much more cleanly
•     4 different gyro modes: OFF, normal stabilization, heading lock, turn rate mode for particularly easy knife-edge flight and simple torquing as well as attitude mode
•     Simple setting of the gyro assignment
•     Parameter setting via HoTT telemetry
•     Software with attitude mode enables easy landings even in difficult wind conditions
•     5 free mixers
•     SUMD output for connection to flybarless systems, flight controllers or a power box.
•     SUMDIN input for redundant receiver operation.

Flybarless system for helicopters

•     Rescue mode and attitude mode for helicopters
•     Basic setting completed in just a few minutes via HoTT telemetry
•     Fast and innovative axis assignment for flexible installation direction
•     Extremely space-saving due to size, weight and elimination of cables, making it easy to store
•     Special vibration-resistant 3-axis sensors of the latest generation
•     Swashplate pirouette optimization and direction of tail torque compensation are detected automatically
•     All common heli swashplates 90/120/135/140 degrees and 90 degrees 4 servos
•     Adjustable swashplate rotation up to 90 degrees for multi-blade heads
•     Clear standard menu and selectable expert menu if required
•     Sensitivity parameters can also be adjusted during flight to speed and style depending on flight phase via encoder
•     Super-fast due to elimination of transmission time from receiver to flybarless system
•     Very direct control feel

Programming for helicopters

•     Simple programming of the basic settings via telemetry.
•     Pirouette optimization is determined automatically from the parameters and works extremely well.
•     Extreme flight stability with full 3D capability even with the basic settings.
•     The effect for the tail and swashplate can be easily set via the telemetry menu or via selectable encoders.
•     Further optimization options in expert mode for personal flying style and personal requirements.
•     Extremely simple adjustment of the basic settings via telemetry:
•     Rotor rotation direction
•     Swashplate type
•     Swashplate frequency 50...200 Hz
•     Swashplate direction
•     Swashplate servo centers Servo 1...3 (4)
•     Set swashplate cycl. travel to 8°
•     Swashplate pitch travel A/B
•     Swashplate limit
•     Swashplate rotation
•     Tail servo center pulse 760µs, 960µs, 1.5 ms
•     Tail servo frequency 50...333 Hz
•     Tail servo center position
•     Rescue pitch
•     Expo yes/no
•     Logging for service purposes or for the Euler angle display
•     Expert mode yes/no
•     Simple gyro axis assignment
•     Gyro effect for tail and swashplate via telemetry or adjustable encoders.
•     Additional parameters can be set in expert mode.

Flight control for copters

•     Copter software Q07 with Dshot controller protocol can be loaded via software update
•     Basic setup completed in just a few minutes via the telemetry menu
•     Fast and innovative axis assignment for flexible installation direction
•     Special vibration-resistant 3-axis sensors of the latest generation
•     The housing protects the electronics in the event of a crash. The special double-sided adhesive tape additionally dampens vibrations.
•     8kHz gyro frequency, multishot and fast PID control routines as well as new software filters ensure a perfect flying experience.
•     D-Shot with turtle mode.
•     Quadrotype XI (Quadrocopter X with reverse prop rotation direction), which has proven itself especially in FPV races, so that the lens remains clear and the props turn away from the obstacle.
•     When the S8437 GPS sensor is connected to K5/Telemetry and K5 is set to SENSOR, the functions are also available: Hold GPS with altitude hold, Come home and Fly waypoints (with HoTT Viewer app and USB OTG cable) are available.
•     Telemetry support for own Hott sensors and Hott sensors from other providers
•     SUMD output for other flybarless receivers.
•     SUMDIN input for redundant receiver operation.
•     Voltage input for external voltage divider, e.g. already included in the S3082 and S3083 controllers.
•     Suitable for HV. Input voltage range 3.6...8.4 V
•     Can be programmed and operated with all previously available HoTT transmitters with telemetry

• Channels: 6
• Zise approx.: 36 x 22 x 12 mm
• Weight approx.: 10 g
• Frequency: 2400 ... 2483,5 MHz
• Modulation: 2,4 GHz FHSS
• Range: ~ 4000 m
• Current: 70 mA
• Working voltage: 3,7 V à 8,4 V
• Antenna length : 2 x wires 145 mm (antenne 30 mm)
• Working temperature: -15 to +70 °C
