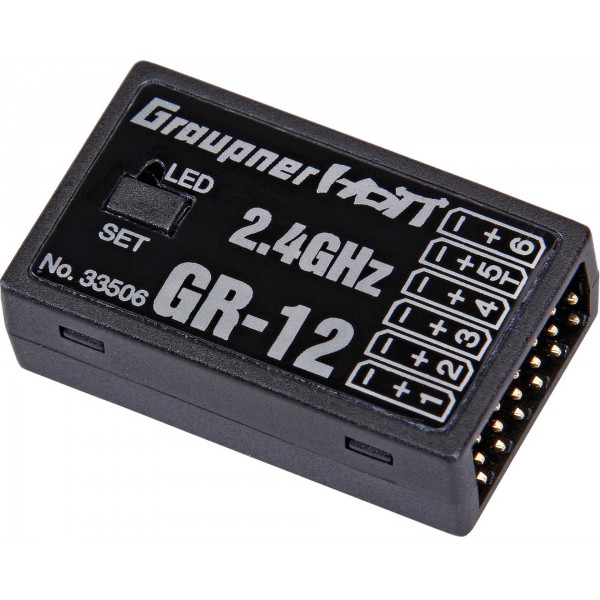

GR-12 HoTT - 2.4 GHz receiver

The GR-12 provides real-time bi-directional data transmission of critical system health data like temperatures, receiver voltage and signal strength using the Graupner HoTT protocol providing you with telemetry information you need for a safe and secure flight. The built-in program mixers allow increased flexibility in flight precision and function.

Features:

• Up to 75 channel hopping for extreme operating reliability and immunity to external interference
• Compact and lightweight
• Front-load servo connections for easier installation in small airframes
• Digital output for SUMD, SUMDV3, SUMO, SUMI, SBUS signal providing connectivity to other vendors flight controllers and secondary satellite for other Graupner HoTT receivers
• Selectable frame rate of 10ms or 20ms for digital or analog servos
• Fail Safe and Hold function
• Low power consumption
• Wide voltage ranges from 3.6V to 8.4V
• Built-in telemetry for temperatures, receiver voltage and receiver strength monitoring
• 5 built-in program mixers

HoTT- is the synthesis of know-how, engineering and worldwide tests by professional pilots. A 2.4 GHz system that points the way for the future of RC model making.
HoTT- Hopping Telemetry Transmission is safety with up to 75 channels
HoTT- uses frequency hopping spread spectrum technology. (FHSS)
HoTT- offers integrated telemetry in real time (expandable).
HoTT- is fully programmable with the help of the Smartbox.

System Features:
- Simple and extremely fast binding
- Range test and undervoltage warning function
- Extremely wide receiver operating voltage range from 3.6 V to 8.4 V (functional up to 2.5 V)
- Failsafe, free channel mapping
- Binding of any number of receivers for channel expansion (max. 32 channels)
- Up to 4 servos can be controlled simultaneously in blocks with a servo cycle time of 10 ms (Digital servos only!)
- Maximum noise immunity due to optimized frequency hopping and wide channel spread
- Extremely fast rebinding, even at maximum distance
- Telemetry evaluation in real time
- Future-proof due to update capability via USB interface

•     Channels: 6
•     Sum signal Output: yes
•     Dimensions approx.: 36 x 21 x 10 mm
•     Weight approx.: 7 g
•     Frequency: 2400 ...2483.5 MHz
•     Modulation: 2.4 GHz FHSS
•     Range: approx. 2000 m
•     Power consumption: 70 mA
•     Operating voltage: (2.5 V) 3.6 V to 8.4 V
•     Antenna length: 1x wire 145 (antenna 30) mm
•     Temperature range: -15 to +70 °C
