Hobbywing brushless combo WP16BL30 ESC & 2435SL-6500KV-G3 motor

More details

Manufacturer: Hobbywing

Reference: HW38030001

Stock status: Limited stock at our supplier. Shipment in 2 days, without warranty.

Shippingcosts from 6.99€
or collect for free at the shop. .

MCM Price : 57,99 €

Quantity Maximum quantity reached.

Notify me when available

More info
Key features
Specifications
Data sheet

More info

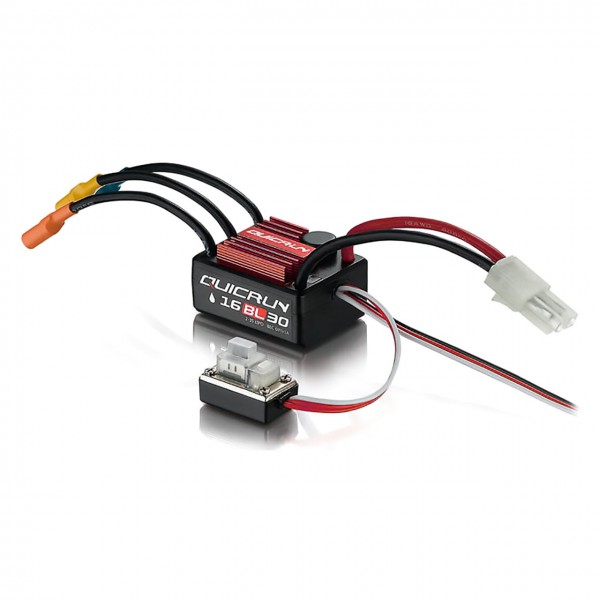

About the WP16BL30 ESC

Easy Operation

This ESC is specially designed for new beginners and intermediate modelers; it not only carries forward the outstanding quality of HOBBYWING products but simplifies the operation.

Applicable to All Weather Conditions

The waterproof and dust-proof design allows the QUICRUN WP-16BL30 to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.

High Reliability & Durability

Reliable hardware combined with advanced software technology allows the QUICRUN WP- 16BL30 to not only provide high power output but also overload protection of the ESC circuit.

Single-button Programming & Factory Reset

The SET button on the ESC allows the user to easily program or factory reset the ESC with ease.

Wide Application

This ESC is applicable to all-weather sport of 1/18^th, 1/16^th scale touring cars, buggies, trucks, and monster trucks.

About the QuicRun 2435 SL G3 motor

Stronger power, upgraded to 4-pole rotor

The G3 motor adopts a four-pole rotor design with stronger torque and stronger explosive power.

Better performance

Compared with the same specification of products under the same load conditions, the maximum output power is 60% higher, the maximum efficiency is 5% higher, and the temperature is reduced by approximately 30 degrees.

Upgraded materials, durable

0.2mm thick silicon steel, high-strength explosion-proof rotor, 200°C high-temperature-resistant enameled wire, and first-line brand high-precision and high-quality bearings make the motor durable.

Excellentprotection

The output of the motor is sealed with a silicone rubber on the housing. It is dust-proof for off-road vehicles/trucks. Users will now enjoy bashing without having to worry in harsh operating environments such as outdoor sand, stones, and dust

Plug and play, flexible play

The motor output line has been welded with high-quality gold-plated plugs. Plug and play without worrying about soldering.

One "machine" with multiple functions, compatible with a wide range of models

The product is applicable to 1:16 and 1:18 vehicles, from on-road to buggy, short course truck, and monster truck.

Key features

QuicRun 2435SL-6500KV-G3 motor
WP16BL30 ESC

Specifications

WP16BL30 ESC

Type	Scale	1/16^th,1/18^th

	Brushed/Brushless	BL

	Sensored/Sensorless	SL

	Waterproof	WP
Specifications	Cont./Peak Current	30A/180A

	Input	2-3S LiPo/6-9 Cells NiMH

	BEC Output	Linear Mode:6V/1A
Wires & Connectors	Input Wires	Red-16AWG-75mm1/Black-16AWG-75mm1

	Output Wires	Black-16AWG-75mm*3

	Input Connectors	Small-sized TAMIYA Connector

		3.5 Gold Connector (Female)



ESC Programing via	SET Button on ESC	Supported

	LED Program Box	Supported

	LCD Program Box	Not Supported

	WiFi Module	Not Supported

	OTA Programmer	Not Supported

	Program Port	Program/Throttle Wire
Fan	Size	No

	Voltage Range	No

	Powered by	No
Firmware	Firmware Upgrade	Not Supported
Size & Weight	Size	36.0x28.0x18.0mm

	Weight	38g
Applications	Motors	SL BL Motors/SD BL Motors(only in SL mode)

	Vehicles	1/16^th,1/18^th Touring Cars/Buggies/Trucks/Monster Trucks

	KV Rating/T Count	2S LiPo: 1/10^th Touring Cars KV≤8000, 1/10th Buggies KV≤5000

		3S LiPo: 1/10^th Touring Cars KV≤5500, 1/10^th Buggies KV≤3500

		(2435 Motors)

QuicRun 2435SL KV 6500 G3 motor

Type	Scale	1/16^th ,1/18^th

	Brushed/Brushless	BL

	Sensored/Sensorless	SL

	Pole Count	4
Relevant Parameters	KV Rating	6500

	LiPo Cells	2S

	No-load Current(A)	3.4
Size & Weight	O.D.(mm)	24

	Length (mm)	36

	Shaft Diameter (mm)	2

	Connectors (mm)	3.5(male)

	Weight (g)	61.2g

Other Parameters	Front Bearing	D8D3t4

	Rear Bearing	D8D3t4

	Applications	1/16^th ,1/18^th On-road,Off-road
