Hobbywing

Combo 10BL120 G2 Sensor 3650SD 13.5T

Hobbywing Brushless Sensored Combo 10BL120 G2 ESC & 3650SD 13.5T motor

More details

Hobbywing

HW38020382

Limited stock at the supplier Limited stock at our supplier. Shipment in 2 days, without warranty.

 Shippingcosts from 6.99€
or collect for free at the shop. .

115,99 €
*


Notify me when available

More info

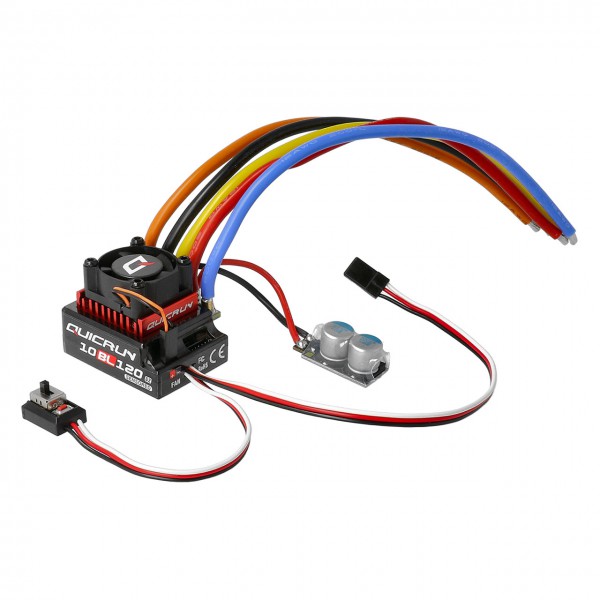

About 10BL120 G2 sensored ESC

Best value for money, Easy to use
The new 10BL120 G2, takes the outstanding quality and durability of proven HOBBYWING platforms and makes it even easier to use and setup.
The perfect choice for 10th scale setups.

BEC upgrade, stronger driver
The BEC's continuous output current has been upgraded from 3A to 4A.
The maximum current is at 7A, and the output voltage is now 6V/7.4V adjustable.
Hobbyist will be able to use high-voltage and powerful servos available on the market with greater control.

Boost/Turbo timing technology
The 10BL120 G2 features adjustable electronic timing.
Turbo and Boost can be used to fine tune power delivery and get the most out of your setup.
Up to 32 degrees of electronic timing is available.

Combining software and hardware to provide comprehensive protection
The ESC is built using top of the line hardware, and proven software to provide a robust and reliable platform.

  • Low Voltage protection
  • Over-Heat protection
  • Throttle loss protection
  • Overlopad protection

Abundance programming methods
Multiple programming/tuning methods are supported.
Works with the Multifunction LCD programming Box Pro,
The Multifunction LCD Programming Box (Non pro), the LED Programming Box, and has on board button/led tuning.

Supports Motor Rotation
The motor rotation is adjustable CW (clockwise) and CCW (counterclockwise), adapting to different chassis.

About QuicRun 3550SD motor

Linear & Smooth Control
The built-in Hall sensor non-adjustable end bell combined with a high precision
and balanced rotor guarantees the user a smooth and linear power on demand.

Great Heat-dissipation
The silicon O-ring fitted between the end bell and stator helps to conduct inner
heat to the unique motor case to maximize cooling for extreme cooling conditions.

Plug-and-Play
Customized 3.5mm low impedance bullet connectors soldered to the motor wires
guarantee "plug-and-play" and stable connections between the ESC and motor.

Re-buildable Design

The end bell is easy to be removed for maintenance purposes and for the replacement
of common wearing parts such as rotor and sensor module (Ex bearings).

Compatible (with QuicRun-10BL60-Sensored ESC)
When pairing the QuicRun3650 G2 motor with the Hobbwing QuicRun-10BL60-Sensored ESC,
the excellent match between ESC and motor will give you a very smooth and
linear power band.




Specifications

QUICRUN WP 10BL120 G2 ESC

Type Scale 1/10th
Brushed/Brushless BL
Sensored/Sensorless SD
Waterproof No
Specifications Cont./Peak Current 120A/760A
Input Voltage 2-3S Lipo
BEC Output Switch Mode 6V/7.4V @4A
Wires & Connectors Input Wires Black-12AWG-200MMmm*1 / Red--12AWG-200MMmm*1
Output Connectors Blue-12AWG-200mm*1 Yellow-12AWG-200mm*1 Orange-12AWG-200mm*1
Input Connectors No
Output Connecotors No
ESC Programing via SET Button on ESC Supported
LED Program Box Supported
LCD Pro Program Box Supported
OTA Programmer Not Supported
Program Port Separate Program Port
Fan Size 25x25x10mm
Output Wires 5-8.4V
Input Connectors Powered by BEC
Firmware Firmware Upgrade Not Supported
Size & Weight Size 43*36.8*32.3mm
Weight 101.5g (Included wires&connectors)
Applications Motors Sensorless / Sensored Brushless Motor
Vehicles 1/10th Touring Cars/Buggies/Drift Cars
KV Rating/T Count 2SLipo≥4.5T 3SLipo≥10.5T 3650 Size Motor

QuicRun-3650SD-13.5T G2 Motor

Type Scale 1/10th
Brushed/Brushless BL
Sensored/Sensorless SD
Pole Count 2
Specifications KV Rating 2850
LiPo Cells 2-3S
No-load Current(A) 2.4
Size & Weight O.D.(mm) 36(1.417in)
Length (mm) 52.8(2.079in)
Shaft Diameter (mm) 3.17(0.125in)
Weight (g) 186(6.561oz)
Front Bearing D9.525*D3.175*t3.967
Rear Bearing D9.525*D3.175*t3.967
Other Parameters Timing Fixed
Applications 1/10th, 1/12th On-
road (Race or drift Touring cars, F1, M
vehicles and etc.) & Off-road (Buggies/2WD
SCTs & Trucks) STOCK/SPORT Calss
Competitions (About Motors' T counts, please
refer to rules regulated by race organizors),
Beginners for practice, and Rock Crawlers
(applicable to 21.5T,25.5Tmotors)

Data sheet

  • Manufacturer : Hobbywing

Composition Kit

  • QuicRun-3650SD-13.5T G2 Motor
  • QUICRUN WP 10BL120 G2 ESC
