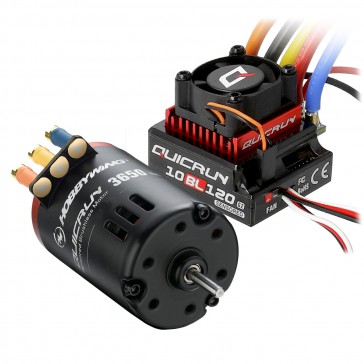

Hobbywing Brushless Sensored Combo 10BL120 G2 ESC & 3650SD 10.5T motor
Best value for money, Easy to use
The new 10BL120 G2, takes the outstanding quality and durability of proven HOBBYWING platforms and makes it even easier to use and setup.
The perfect choice for 10th scale setups.
BEC upgrade, stronger driver
The BEC's continuous output current has been upgraded from 3A to 4A.
The maximum current is at 7A, and the output voltage is now 6V/7.4V adjustable.
Hobbyist will be able to use high-voltage and powerful servos available on the market with greater control.
Boost/Turbo timing technology
The 10BL120 G2 features adjustable electronic timing.
Turbo and Boost can be used to fine tune power delivery and get the most out of your setup.
Up to 32 degrees of electronic timing is available.
Combining software and hardware to provide comprehensive protection
The ESC is built using top of the line hardware, and proven software to provide a robust and reliable platform.
Abundance programming methods
Multiple programming/tuning methods are supported.
Works with the Multifunction LCD programming Box Pro,
The Multifunction LCD Programming Box (Non pro), the LED Programming Box, and has on board button/led tuning.
Supports Motor Rotation
The motor rotation is adjustable CW (clockwise) and CCW (counterclockwise), adapting to different chassis.
Linear & Smooth Control
The built-in Hall sensor non-adjustable end bell combined with a high precision
and balanced rotor guarantees the user a smooth and linear power on demand.
Great Heat-dissipation
The silicon O-ring fitted between the end bell and stator helps to conduct inner
heat to the unique motor case to maximize cooling for extreme cooling conditions.
Plug-and-Play
Customized 3.5mm low impedance bullet connectors soldered to the motor wires
guarantee "plug-and-play" and stable connections between the ESC and motor.
Re-buildable Design
The end bell is easy to be removed for maintenance purposes and for the replacement
of common wearing parts such as rotor and sensor module (Ex bearings).
Compatible (with QuicRun-10BL60-Sensored ESC)
When pairing the QuicRun3650 G2 motor with the Hobbwing QuicRun-10BL60-Sensored ESC,
the excellent match between ESC and motor will give you a very smooth and
linear power band.

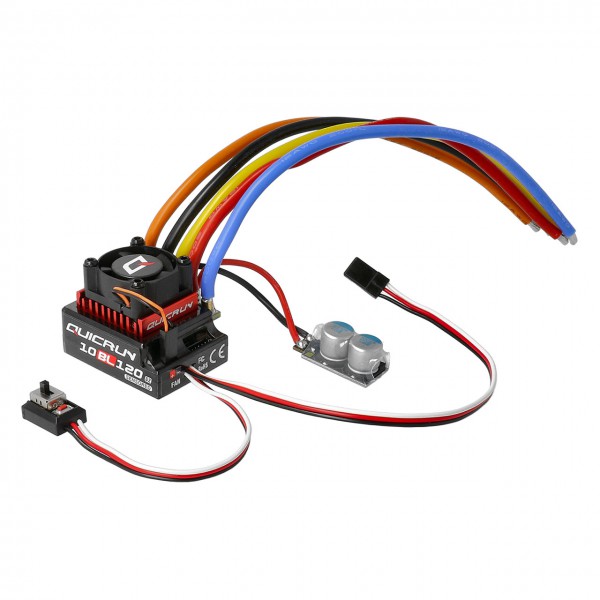

QUICRUN WP 10BL120 G2 ESC
| Type | Scale | 1/10th |
| Brushed/Brushless | BL | |
| Sensored/Sensorless | SD | |
| Waterproof | No | |
| Specifications | Cont./Peak Current | 120A/760A |
| Input Voltage | 2-3S Lipo | |
| BEC Output | Switch Mode 6V/7.4V @4A | |
| Wires & Connectors | Input Wires | Black-12AWG-200MMmm*1 / Red--12AWG-200MMmm*1 |
| Output Connectors | Blue-12AWG-200mm*1 Yellow-12AWG-200mm*1 Orange-12AWG-200mm*1 | |
| Input Connectors | No | |
| Output Connecotors | No | |
| ESC Programing via | SET Button on ESC | Supported |
| LED Program Box | Supported | |
| LCD Pro Program Box | Supported | |
| OTA Programmer | Not Supported | |
| Program Port | Separate Program Port | |
| Fan | Size | 25x25x10mm |
| Output Wires | 5-8.4V | |
| Input Connectors | Powered by BEC | |
| Firmware | Firmware Upgrade | Not Supported |
| Size & Weight | Size | 43*36.8*32.3mm |
| Weight | 101.5g (Included wires&connectors) | |
| Applications | Motors | Sensorless / Sensored Brushless Motor |
| Vehicles | 1/10th Touring Cars/Buggies/Drift Cars | |
| KV Rating/T Count | 2SLipo≥4.5T 3SLipo≥10.5T 3650 Size Motor |
QuicRun-3650SD-10.5T G2 Motor
| Type | Scale | 1/10th |
| Brushed/Brushless | BL | |
| Sensored/Sensorless | SD | |
| Pole Count | 2 | |
| Specifications | KV Rating | 3600 |
| LiPo Cells | 2-3S | |
| No-load Current(A) | 2.8 | |
| Size & Weight | O.D.(mm) | 36(1.417in) |
| Length (mm) | 52.8(2.079in) | |
| Shaft Diameter (mm) | 3.17(0.125in) | |
| Weight (g) | 186(6.561oz) | |
| Front Bearing | D9.525*D3.175*t3.967 | |
| Rear Bearing | D9.525*D3.175*t3.967 | |
| Other Parameters | Timing | Fixed |
| Applications | 1/10th, 1/12th On-road (Race or drift Touring cars, F1, Mvehicles and etc.) & Off-road (Buggies/2WD SCTs & Trucks) STOCK/SPORT Class Competitions (About Motors' T counts, please refer to rules regulated by race organizors), Beginners for practice, and Riock Crawlers. | |
| (applicable to 21.5T,25.5Tmotors) |
Beginners for practice, and Rock Crawlers
Combo 10BL120 G2 Sensor 3650SD 10.5T
115,99 €
