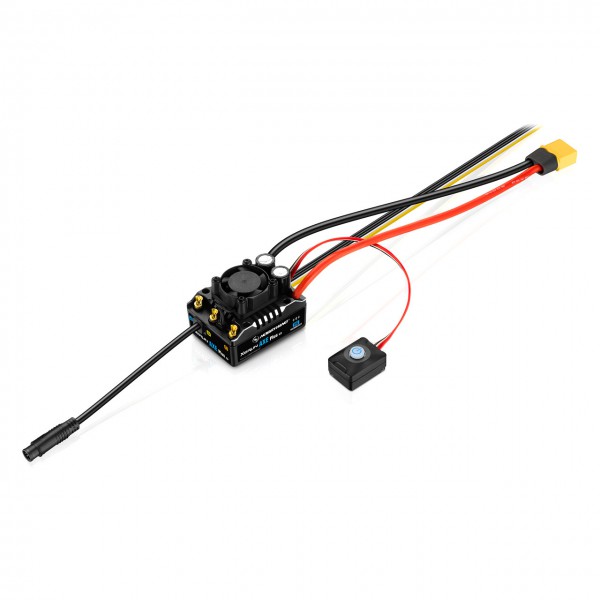

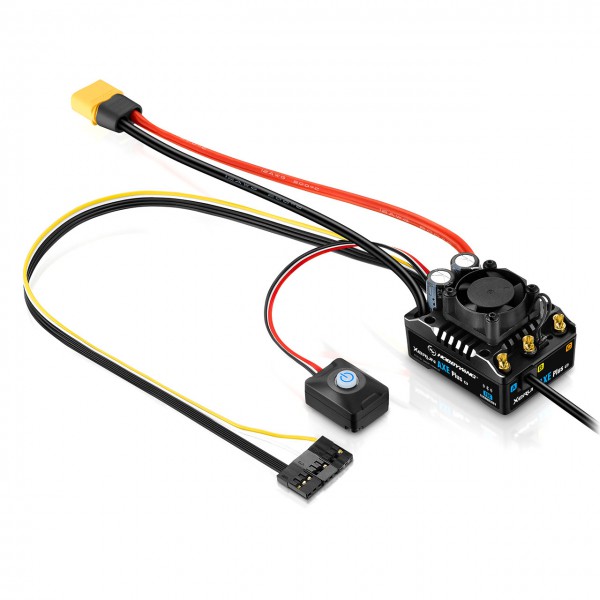

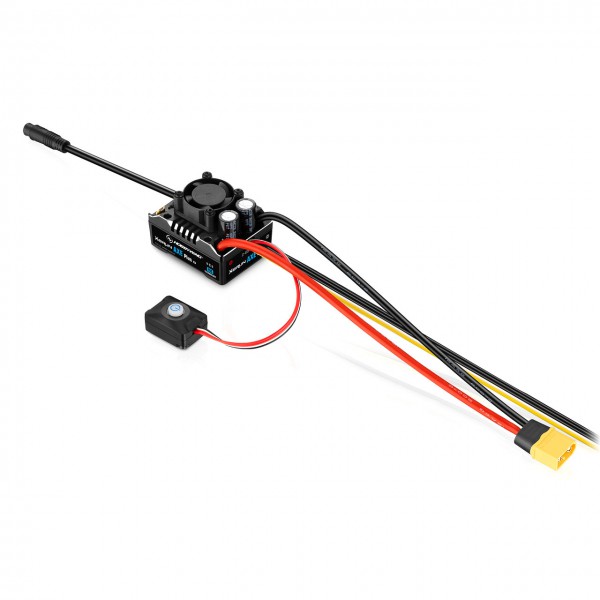

6S high-power crawler ESC
- The ESC supports up to 6S LiPo bttery.
- It has a maximum output continuous current of up to 135A.
- The AXE R3 can be used on 1/10th and 1/8th crawler, also compatible with 1/7th and 1/6th crawler.
- New compact design.
- Compatible with all Axe R2 motors.
Dual external control channels, real-time adjustment of parameters
Connect the white and yellow signal cables to open channels of the receicver to adjust parameters in real time.
FOC drive, linear, with plenty torque, and very quite
The XeRun AXE R3 is equipped with a FOC drive system.
The large torque and excellent linearity when operating at low speed further exceeds ordinary brushless power systems and out performs brushed power systems.
The XeRun AXE R3 is nearly silent, and it’s the perfect choice for crawling vehicles.
Smart torque output, easy to control
The ESC automatically increases the torque output to overcome resistance and accelerate up the hill. Vice versa, the ESC automatically reduces the torque output and stabilizes the vehicle speed when going down the hill. Provides excellent control going Up, or Down hills.
The ESC is powerful, with excellent linear control, which can meet the needs of the vehicle's low-speed climbing while also meeting the needs of violent start-up lifting, straight-line high speed, etc.
Smart fan start and stop function
The fan starts to operate automatically ONLY when the ESC temperature reaches the preset value.
The smart start and stop function of the fan helps to save power, reduce noise, and also ensures that the ESC works in a good temperature range.
High protection level
The AXE R3 brushless system is now IP67 protected.
It has excellent waterproofing and dust-proofing performance to cope with various climatic conditions.
Super Internal BECIt has a built-in powerful BEC with a maximum output current of 15A.
The voltage is switchable between 6V/7.4V/8.4V and is suitable for various standard/high-voltage servos and peripheral electrical equipment on the market (such as light sets, winches, etc.).
Built-in Bluetooth for Connecting the Mobile APP DirectlyThe ESC has a built-in Bluetooth module.
Parameter settings, data reading, firmware upgrade and other operations can be achieved by connecting the device to the mobile APP.
Obtain AXE Running Status with Real-time Data Function with ease
Connect the ESC to the HW Link mobile app and turn on the real-time data function.
You are able to view throttle, voltage, current, temperature, speed and other data in real time, and obtain the ESC and motor operating status with ease.
Built-in data logging function,ease of obtaining poweroperating status
The ESC has a built in data rcoerdind module. Store up to 10 minutes of your most recent run. Using the HW Link V2saved to the ESC. saved to the ESC. In addition,the module allows you to view Time Data from the ESC for bench top testing and viewing of the data outputs.
Note: Due to transmission distance of bluetooth, the effective distance is only about 5m!
Compatible with AXE R2 motor
AXE R3 ESC supports both AXE 4274 R3 motor and AXE 550/540L/540 R2 motor.
Note: AXE R2 motor, 2800KV/2100KV/1400KV/2300kv are recommended to use 3-4S.
Supports Flysky i-BUS2 Telemetry
Achieve real-time ESC parameter adjustments using the I-BUS2 Telemetry on the Flysky NB4 controllers.
Additionally, the data return function has been implemented to the Flysky NB4 remote controllers.
You will be able to view data such as; battery voltage, motor speed, operating current, ESC/motor temperature, etc in real time on the remote control.
A vast variety of parameters
The XeRun AXE R3 has a vast variety of parameters for adjustment.
It has a total of 21 adjustable parameters and supports 24-degree adjustable Turbo timing.
The maximum speed can be unleashed with good road conditions.
