Motors Brushless airplane motor Electronics & Motors

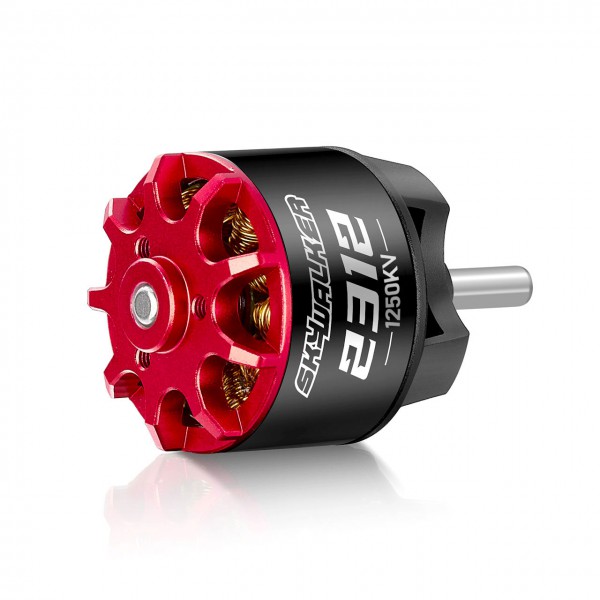

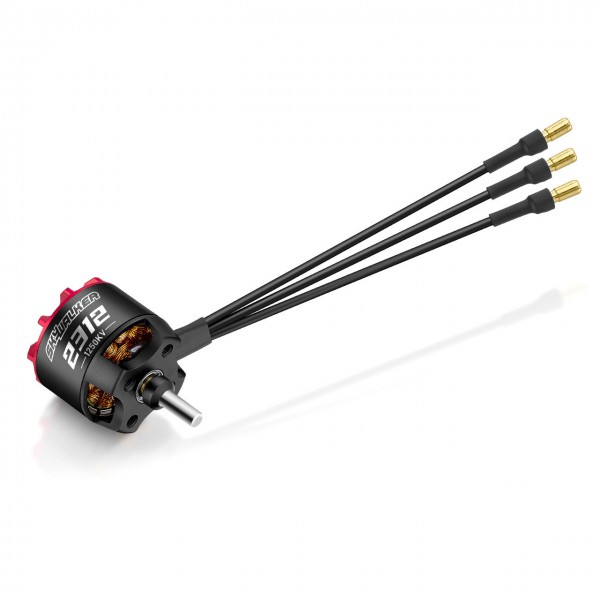

SkyWalker-2312SL-1250KV-BLACK-G1-HW

The first generation of the 23-series Skywalker motors brings RC hobby pilots with fixed-wing models a whole new flying experience. They are also a suitable complement to the already established Skywalker ESCs and achieve around 10% more output power than comparable motors with similar specifications.

More details

Manufacturer: Hobbywing

Reference: HW30415003

Stock status: Limited stock at our supplier. Shipment in 2 days, without warranty.

Shippingcosts from 6.99€
or collect for free at the shop. .

MCM Price : 29,99 €

Quantity Maximum quantity reached.

Notify me when available

More info
Key features
Specifications
Data sheet
Composition Kit

More info

The Skywalker aircraft motors have a special propeller attachment that ensures an overall higher torque. And the motor, equipped with N48 magnets, takes advantage of exactly that to ensure maximum torque output. Incidentally, no problems due to excessive heating are to be expected. After all, there is a generous cavity in the motor, which, together with the self-draining structure of the top cover, increases the cooling performance. And together with other high-quality components such as the 0.2mm JNEH1200 silicon steel sheet and the high-temperature-resistant enameled wire, these engines are ready to travel the skies for a long time.

The rotor itself has been designed to noticeably reduce potential motor vibrations and ensure smoother operation overall. The rotor is also secured through the interaction of the various components in order to further increase the reliability of the Skywalker motors.

Key features

Powerful motor
Ideal as a complement to the Skywalker ESCs
Optimized rotor running
Designed for effective cooling and heat dissipation
18AWG silicone cable

Specifications

Type:	Brushless
kV rating:	1250 kV
No-load current:	1.5A / 14.8V
Resistance:	51.6m Ohm
LiPo cells:	3-4S LiPo
Slots & poles:	12N14P
Max. cont. current:	38A / 35s
Max. cont. power:	563W / 35s
Phase cable:	18AWG, 100mm
Bearing:	684ZZ (D9 x d4 x 4)
Diameter:	28.8mm
Length:	46mm
Shaft diameter:	4mm
Weight:	65g
Recommended ESC:	Skywalker V2 30A-40A
Props:	3S: 8x6E, 9x4.5E, 10x6E 4S: 8x4E, 8x6E
Clip mounting hole thread:	D: 12mm-3 x M2.5
Base thread:	D: 16mm-2 x M3 D: 19mm-2 x M3

Data sheet

Manufacturer : Hobbywing

Composition Kit

(1) Skywalker motor 2320 SL 1250kV
(1) Manual
Propeller adapter (clamp)
Mounting cross with screws
