Multiplex

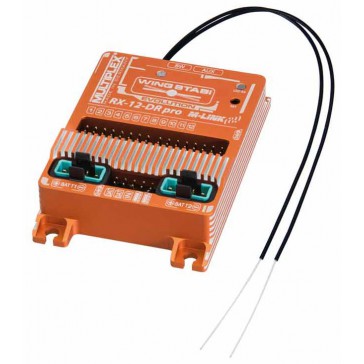

Wingstabi EVOLUTION 12ch M-LINK

Multiplex Wingstabi EVOLUTION 12-ch M-LINK

More details

Multiplex

MPX550161

To be ordered Can not be ordered because availability unknown from the supplier. New delivery in 7 to 10 days.

 Shippingcosts from 6.99€
or collect for free at the shop. .

389,00 €
*

Notify me when available

More info

The next stage of evolution in terms of flight stabilization of fixed-wing models
from Multiplex - Made in Germany
For the development of the WINGSTABI Evolution, we have been able to create an enormous database of a wide variety of flight models over the years.
The WINGSTABI Evolution is the logical consequence of this and raises the product to a new level.
The control has been fundamentally optimized in terms of performance, latency and the basic settings.
All previous WINGSTABI systems can be updated to the Evolution software free of charge and without restrictions.
The WINGSTABI Evolution can now be used directly from the pack with high performance and without any problems on almost all flight models.
A large number of new innovations and functions have also been incorporated into the
WINGSTABI Evolution software, which now leaves nothing to be desired.
Examples of this are:
• A greatly improved basic setup to fly straight away
• Introduction of the optional speed-dependent control for optimal performance in every flight condition
• Introduction of a stop function for a natural and smooth action of the flight stabilization
• Possibility of a two-receiver operation via SRXL for absolute safety every flight
• Support for 8-flap wings, canards, optimized FAIL-Safe and much more.

Compatible with all common RC systems | Compatible with all common RC systems
Jeti (EX-Bus, UDI) Graupner (SUMD) Futaba (S.BUS) FrSky (S.BUS) Spektrum (SRXL) HiTEC (MAXIMA SL, OPTIMA SL)
Weatronic (PPM) MULTIPLEX (SRXL) · CORE (S.BUS, SRXL)

Differentiation between WINGSTABI Evolution EasyControl
and WINGSTABI Evolution Classic
EasyControl
• As before, the model is completely programmed on the transmitter (deflections, flaps, expo, flight phases...)
• We need a free channel, to which we assign a free proportional control assign
• Very easy setup even without PC
Classic
• The model is almost completely programmed in the WINGSTABI (deflections, mixers, flaps...)
• We need a free 3-stage switch and at least one free proportional control
• Extensive setup on the PC or via APP

Each new Wingstabi Evolution is always delivered as “Evolution EasyControl” as standard and can be
reconfigured to “Evolution classic” free of charge via the MPX Launcher if required.
The WINGSTABI Evolution has an unbeatable price-performance ratio.
Try it out and join us in the 21st century of model flying!

(Speed ​​compensation via Pitot tube or GPS Patent: DE 10 2013 201 554 B3 PowerboxSystems)

WINGSTABI EVOLUTION -12/16-DR M-LINK
Freely programmable 3-axis gyro system with integrated MULTIPLEX receiver RX-7/9 DR per M-LINK for all RC -Area models.

• Integrated M-LINK receiver including telemetry
• Optimized high-end control behavior
• Optional speed
-dependent control • Support for receiver diversity
• Plug & Play setup possible without a PC
• Programming also possible via PC or Android app
• Up to 4 freely configurable flight/control phases
• 7/9 servo outputs
• Free channel assignment
• Individual setting for each Servo (5-point curve, frequency, expo, fail-safe, ...)
• Extensive options for flaps and mixers (delta mixer, V-tail, canards, ...)
• Diversity possible

For our MULTIPLEX users, we offer a solution here with integrated M-LINK receiver. Packed in a design housing made of anodized aircraft aluminum, it features the latest RX-DR pro receiver technology

Data sheet

  • Manufacturer : Multiplex

Wingstabi EVOLUTION 12ch M-LINK
