All-new Pro series Magnum 272R
The Magnum 272R transmission is built for hard-hitting torque. The 272R features a blue-anodized aluminium motor plate, all-metal gears, and a sealed silicone-filles 4-gear differential tuned specifically for drag racing with 500K heavy-weight diff fluid.
![](http://www.mcmracing.com/img/cms/Produits/Traxxas/94076/9495-Magnum-Housing.jpg)
TSM with drag race mode
It’s easy to drive like a pro with Traxxas Stability Management. TSM makes racing more fun by allowing the driver to experience the fastest possible straight line acceleration with incredible stability and precise control. After you cross the finish line, TSM dramatically improves braking performance and helps prevent spin outs.
![](http://www.mcmracing.com/img/cms/Produits/Traxxas/94076/intro-features-TSM.jpg)
Traxxas trans brake
Think you’re quick on the trigger? This is quicker. Hold the TQi transmitter’s Trans Brake Switch and set the throttle at the starting line – when the flag drops, release the switch for the quickest launch every time.
![](http://www.mcmracing.com/img/cms/Produits/Traxxas/94076/intro-features-Trans-Brake.jpg)
Ultimate traction and control
Scale realism meets engineered performance. Ultra-wide Mickey Thompson ET Drag Slicks feature an innovative carcass design and molded high-density foam inserts for massive traction off the line and down the track.
![](http://www.mcmracing.com/img/cms/Produits/Traxxas/94076/94076-4-MT-Wheels-n-Tires-Cutaway.jpg)
Extreme power
The Velineon VXL-3S system is paired with optimized gearing to take advantage of the maximum torque output from the Velineon 3500 motor. The VXL-3S system delivers strong, reliable muscle to lay down the quickest passes, run after run.
![](http://www.mcmracing.com/img/cms/Produits/Traxxas/94076/Overview-Power-System.jpg)
Exclusive drag race mode
Press a button on the TQi receiver to enable Traxxas' exclusive Drag Race Mode. When activated, Drag Race Mode disables TSM during acceleration to help you hone your racing skills. Once you cross the finish line, TSM dramatically improves braking performance and prevents spin outs.
Classic style

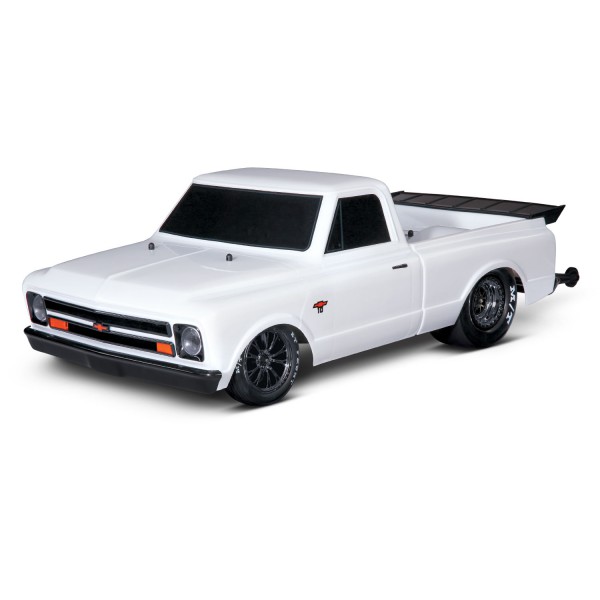

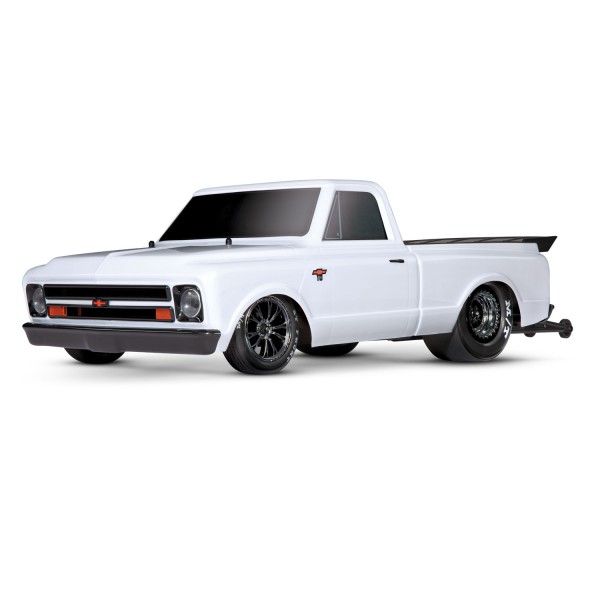

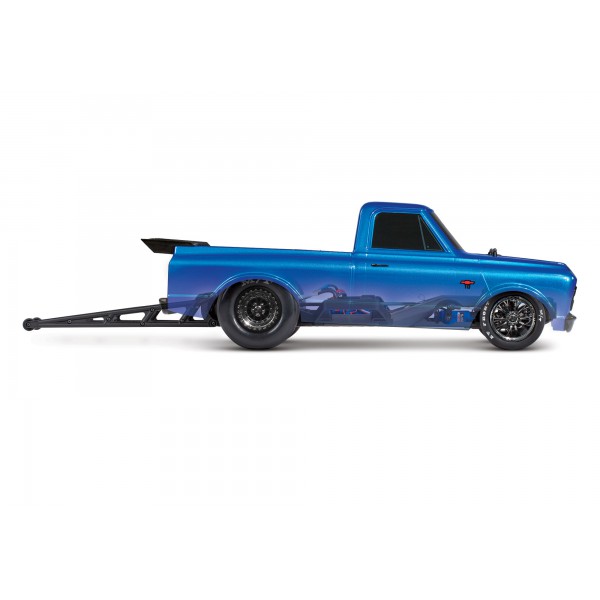

Drag Slash stuns at the strip with its perfectly-stanced '67 Chevy C10 body, available in six colors. The classic C10 shape is tubbed to accept super-wide slicks, and fully detailed with a molded grille, rear wing, and LED-ready light buckets.
![](http://www.mcmracing.com/img/cms/Produits/Traxxas/94076/94076-4-Drag-Slash-Action-Both-0816.jpg)
Wheelie bar
An extended length wheelie bar with 5 fixed levels of adjustment provides utlimate rigidity and arrow straight launches in any track condition. Two sizes of wheels are included to further refine tuning. From low and mean to wild, wheels-up action the full length of the track, Drag Slash does it all.
![](http://www.mcmracing.com/img/cms/Produits/Traxxas/94076/94076-4-Drag-Slash-Action-PRPL-GRN-6029.jpg)
Waterproof
Not every drag race takes place on a smooth prepared track; that's just the part of the "no prep" scene. The Drag Slash's waterproof electronics are ready to take on any back street gridge match, regardless of rain or water on the track.
![](http://www.mcmracing.com/img/cms/Produits/Traxxas/94076/5624_sealed_RX_box_with_6518.jpg)
Slash for the streets
Drag Slash is built on the proven low center of gravity chassis to hold the battery and electronics close to the pavement for track-hugging stability. Modular construction and premium hex hardware make Drag Slash easy to maintain for peak performance.
![](http://www.mcmracing.com/img/cms/Produits/Traxxas/94076/TRX94076-4PRPL_06.jpg)
Molded scale details
The Chevy C10 body's bi-level grille, LED-ready headlight surrounds, and Pro Street-style wing are each separately molded parts to precisely replicate the "real thing" and deliver display model detail with durability for high speed street action.
![](http://www.mcmracing.com/img/cms/Produits/Traxxas/94076/Molded-Scale-Details.jpg)
Rich metallic ProGraphix paint
Drag Slash's metallic paint shines with a deep gloss and light-catching good looks beneath the durable, polycarbonate body. Choose from six colors: Redline, Brilliant Blue, Green Machine, Ultra Violet, Diamond White and Midnight Black.
![](http://www.mcmracing.com/img/cms/Produits/Traxxas/94076/ProGraphix.jpg)
Deeply recessed and detailed bed
Drag Slash's Chevy C10 body recreates the flat-plate tinwork of full-size draggers with a recessed bed that's realistically "tubbed" to hug Mickey Thompson slicks. Functional, authentic details like this make Drag Slash the best-looking no-prep racer on the strip.
![](http://www.mcmracing.com/img/cms/Produits/Traxxas/94076/Detailed-Bed.jpg)
High performance wing
The Pro Street-style wing is a functional part of the Chevy C10's drag-prepped design. The wing is injection molded for durability and strength. At speed, the wing generates traction-enhancing downforce and reduces drag-inducing turbulence.
![](http://www.mcmracing.com/img/cms/Produits/Traxxas/94076/Wing.jpg)
Integrated bumper
If a run goes wrong, Drag Slash can take the hit with its chassis-mounted front bumper. Firm foam pads the body as the heavy-duty upper and lower bumper supports protect the front suspension.
![](http://www.mcmracing.com/img/cms/Produits/Traxxas/94076/Bumper.jpg)
Drag-tuned Ultra Shocks
Ultra Shocks are proven performers on Traxxas' hardest-hitting off-roaders. Drag Slash's Ultra Shocks are strip-ready with stiffer springs, thicker silicone oil, and custom bump stops optimized to provide smooth ride control and race-winning grip.
![](http://www.mcmracing.com/img/cms/Produits/Traxxas/94076/Ultra-Shocks.jpg)
Suspension tuning
Rugged 4mm steel turnbuckles make it easy to experiment with Drag Slash's camber and toe-in, no dissasembly required. Heavy-duty rod ends are captured, large-diameter pivot balls assure race-ready durability, and an adjustment wrench is included.
![](http://www.mcmracing.com/img/cms/Produits/Traxxas/94076/Suspension-Tuning.jpg)
Adjustable body posts
Slam the body low for smooth tracks, raise it for rougher surfaces, or set up your Drag Slash for an aftermarket body - the front body posts are fully adjustable, and adjustable rear body posts are available as an accessory.
![](http://www.mcmracing.com/img/cms/Produits/Traxxas/94076/Body-Posts.jpg)
Low CG chassis
A low center of gravity improves stability and handling precision. The low-slung chassis allows the Chevy C10 body to hug the track with an agressive, aero stance for peak drag-racing performance, and sleek, modular design simplifies maintenance.
![](http://www.mcmracing.com/img/cms/Produits/Traxxas/94076/TRX94076-4PRPL_06.jpg)
Wheelie bar
The difference between advancing and going home early boils down to traction off the line. Drag Slash gives you maximum control with a five-position wheelie bar and two choices of wheel size. The wheelie bar's reinforced dual-ladder frame provides maximum rigidity to get the holeshot - and the win!
![](http://www.mcmracing.com/img/cms/Produits/Traxxas/94076/Wheelie-Bar.jpg)
Fixed gear mesh
Drag Slash's gear mesh stays perfectly set launch after launch, even as high-power drag launches try to force the gears apart. The rigid aluminium motor plate and fixed-mesh insert prevents motor movement for macimum reliability and precise gear mesh.
![](http://www.mcmracing.com/img/cms/Produits/Traxxas/94076/Gear-Mesh.jpg)
Removable differential
Different tracks require different levels of grip, that's just part of no-prep racing. Drag Slash makes it easy to change your differential's locking action by varying the fluid viscosity inside. Disconnect the driveshafts and open the hatch; you'll be on your way to victory in minutes.
![](http://www.mcmracing.com/img/cms/Produits/Traxxas/94076/Removable-Diff.jpg)
All-metal internal gears
The race-ready transmission is built for massive torque with high-strength steel input, idler, and differential gears and large-diameter bearings. The input gear is keyed and press fit onto the top shaft for greater precision and strength than a pin-mounted gear.
![](http://www.mcmracing.com/img/cms/Produits/Traxxas/94076/94076-4-Drag-Slash-Transmission-Cutaway.jpg)
Sealed bevel-gear differential
The heavy-duty steel-gear differential is X-ring and gasket-sealed and silicone-filled to resist unloading under power. Oil viscosity is optimized for drag racing, and the diff is easy to refill with thicker or thinner fluid to suit track conditions.
![](http://www.mcmracing.com/img/cms/Produits/Traxxas/94076/Gear-Differential.jpg)
Extreme-duty driveshafts
Fortified for hard launches and superior durability, the Drag Slash's Extreme-Duty driveshafts are 20% larger than standard Slash driveshafts for outrageous power handling. The larger diameter shafts offer the same articulation and suspension travel, but are rated for even more tire-shredding torque.
![](http://www.mcmracing.com/img/cms/Produits/Traxxas/94076/Driveshafts.jpg)
Precision transmission case
The Pro Series Magnum 272R transmission is engineered for strength with its rugged, reinforced case. The case halves engage precisely to seal out dirt and debris, and create a rigid structure to support the motor, suspension arms, and wheelie bar. The thick T-6 aluminium motor plate resists flex and acts as a heatsink.
![](http://www.mcmracing.com/img/cms/Produits/Traxxas/94076/Transmission-Case.gif)
Case-supported outputs
The pro series differential is ball-bearing supported directly at the differential case, rather than mounting bearings on the differential outputs. This design better supports the differential, reduces bearing drag, and isolates differential action.
![](http://www.mcmracing.com/img/cms/Produits/Traxxas/94076/Sealed-Bearings.jpg)
