With SkyRC tools to measure the angles of your aircraft, you get even closer to the perfect flight experience!
Surface angle adjustment for a model aircraft is the top priority, including the maximum value of the rudder, mixing control surface value of relative angle, and differential angle value of the aileron.
Mechanical measuring is the typical method to get the testing data but with low efficiency and significant deviation. In this way, the relative angle's value cannot be measured. SkyRC Angle Gauge comes as a solution.

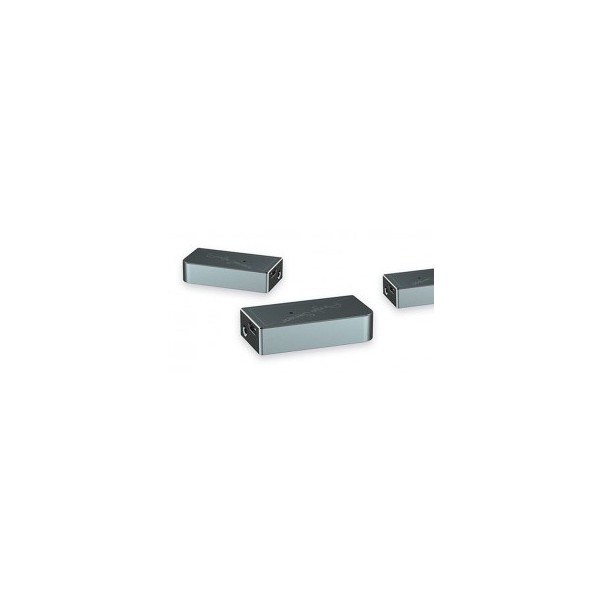

The unit consists of three sensing modules, which are wirelessly controlled via Bluetooth. With the RC Gears app, pilots can get started to measure the real-time measuring data after unboxing.
The data tested by Angle Gauge has high reliability and accuracy. The measurement is accurate to 0.1 degree with an angle difference accuracy of 0.1 mm, bringing a better flying experience to our pilots.

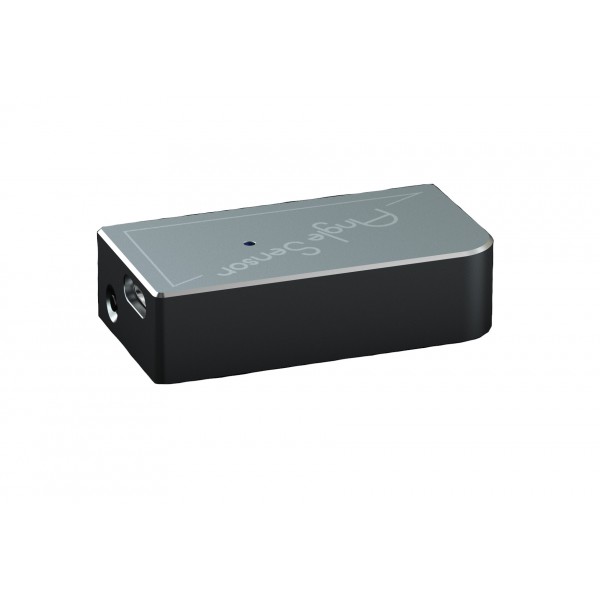

High-hardness aluminium is selected for the case, and strict CNC machining guarantees the stability and reliability that is dust-proof and has strong impact resistance.
SkyRC angle gauge is built with Bluetooth 5.0, which enables a faster and more stable connection. The app instantly displays real-time data once connected. Angular adjustment is like a breeze!
Angle gauge finally has its own app! The app receives and records the aircraft's CG data in real-time via Bluetooth! Angular adjustment is made easy!
SkyRC Angle gauge is even smaller than AirPods in size, convenient to carry around.
Thanks to the Bluetooth 5.0 ultra-low power consumption and our proprietary protocol, a single built-in 3.7V 10440 rechargable LiPo battery provides sufficient power for comfortable use.

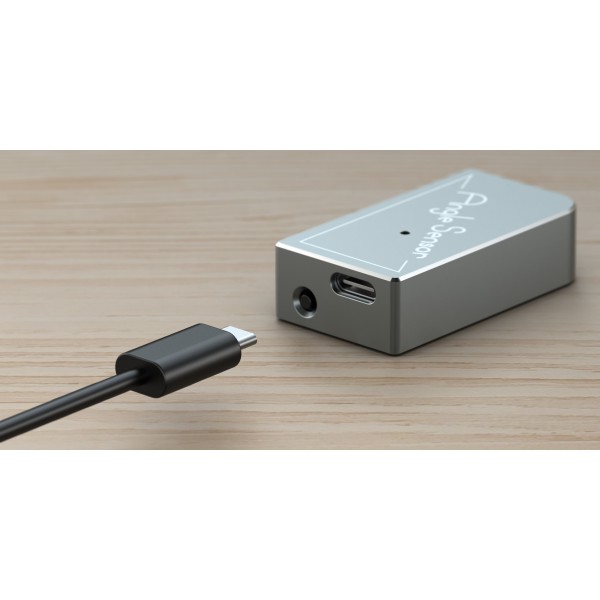

The charge port is USB Type-C which is accepted as the de facto connector today, so most mobile phone cables can easily handle the charging.
| Working voltage |
3.4 - 4.2V | Size | 48 x 26 x 13mm |
| Working current |
< 10mA | Accuracy | +/- 1mm |
| Input voltage |
5V | Low-voltage protection |
< 3.4V (red flashing light) |
| Input current |
200 - 300mA | Weight | 25g |
Angle Gauge SAM-020
97,99 €
