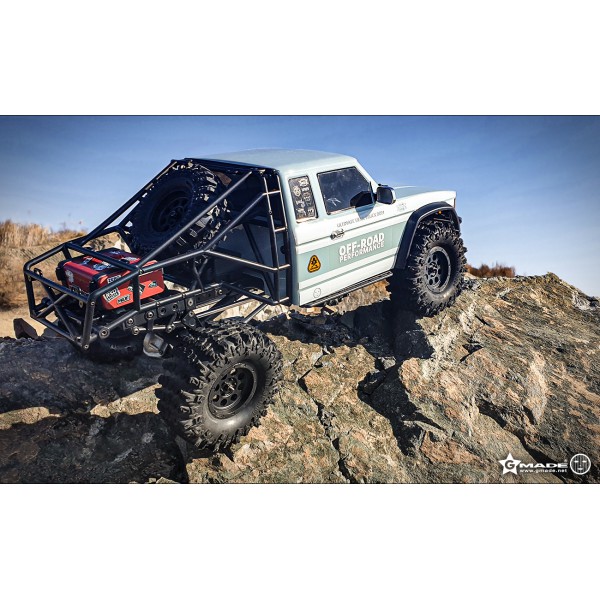

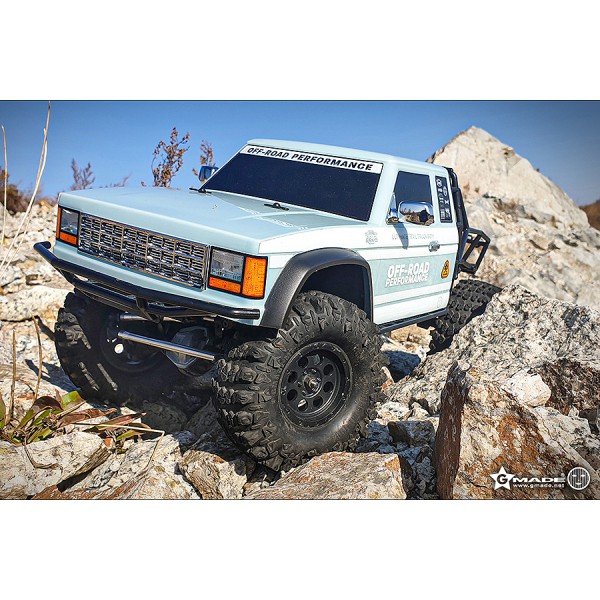

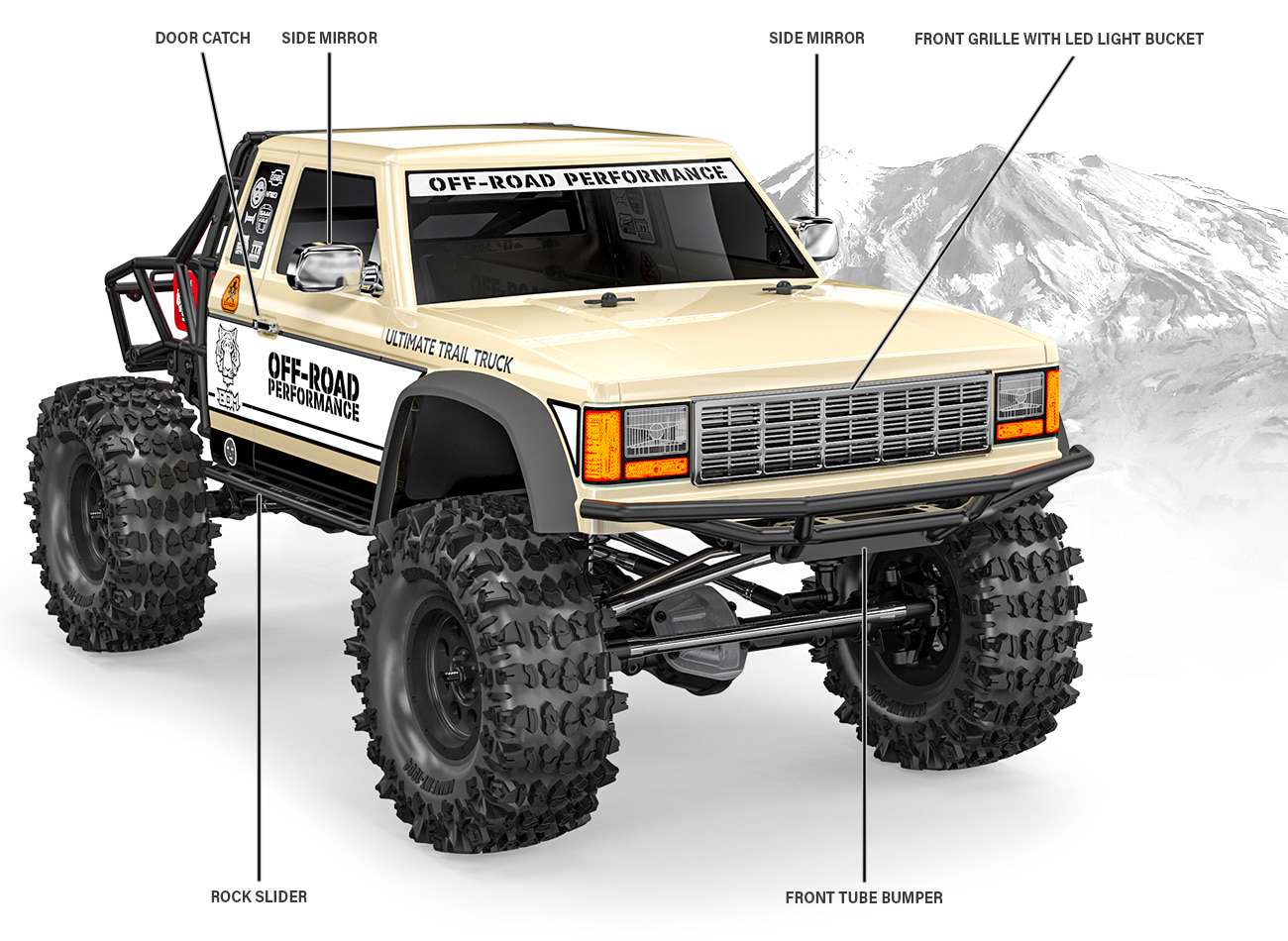

Meet the Gmade GS02F BOM! This assemble kit is designed to last in the most extreme conditions. Warning! The body shown on the pictures has been painted, a transparent body is included in the kit.

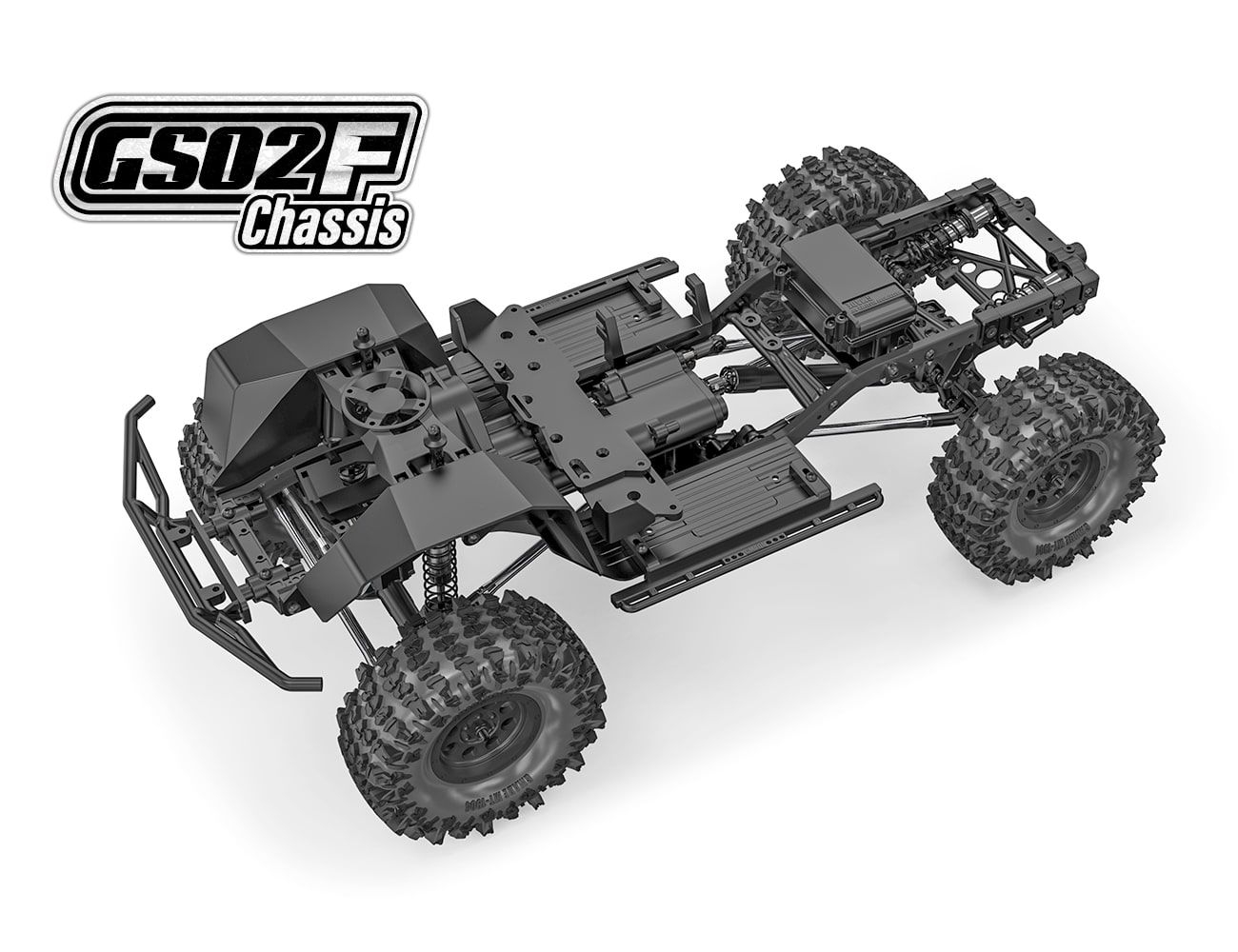

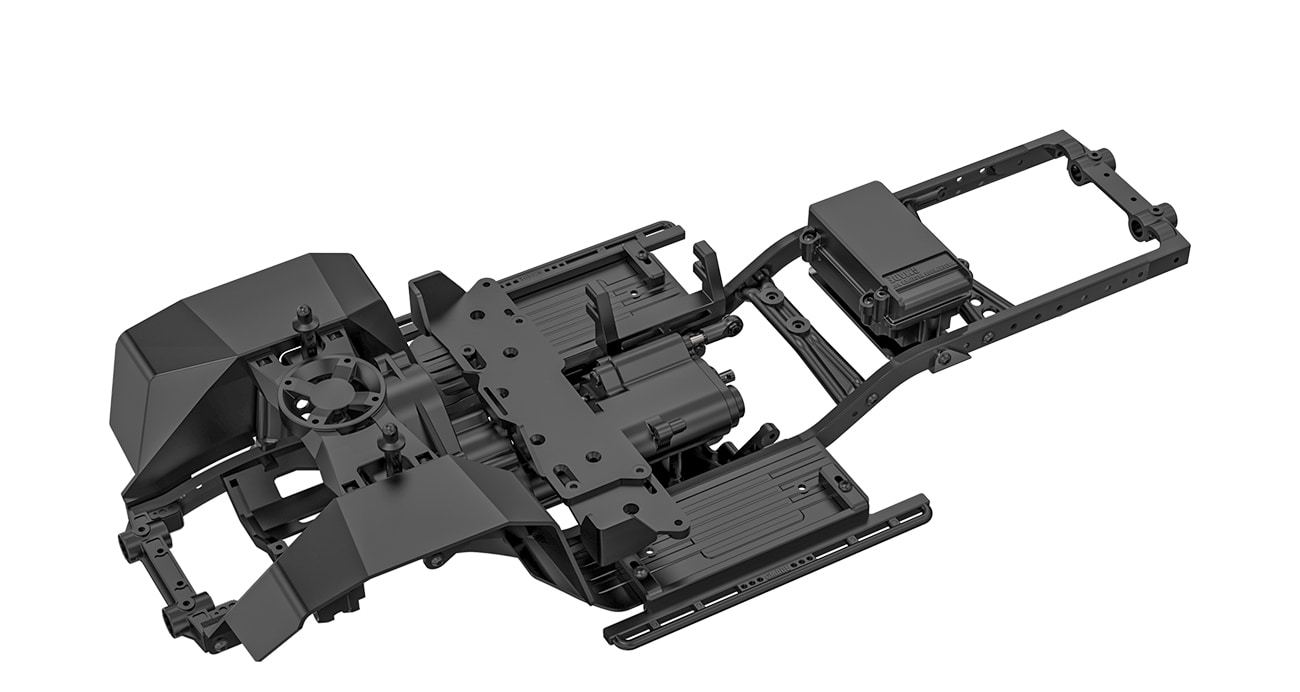

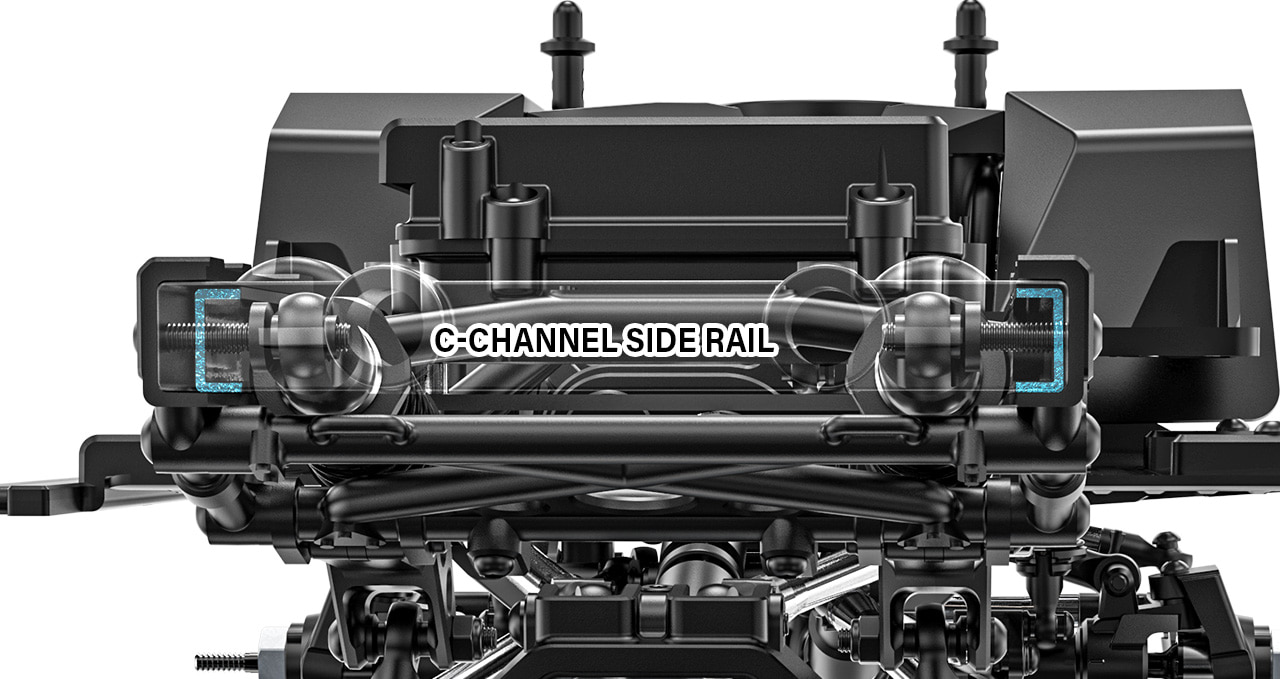

GS02F frame is designed to look as a chassis of a real car frame and the material of the frame is made of high strength steel, C-channel side rail and is with hex wrench bolted with cross members, which make it resistant to twisting or wraping.
Also, steel parts are black powder coated finish to prevent rust.

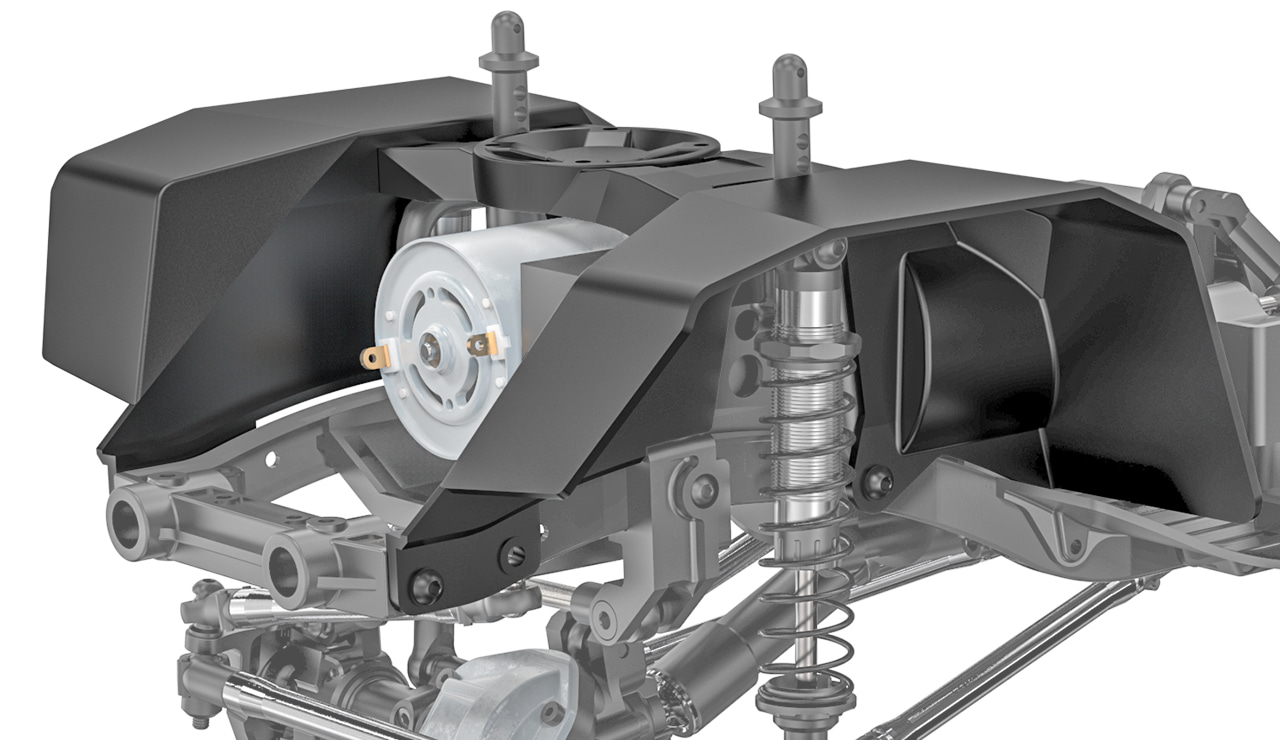

The inner fender is directly fixed to the frame to reduce the flex and bending of the chassis and parts, it also reduces external objects to entering to the chassis during driving.
The GS02F chassis allows three type of easy adjustments of the wheelbase convert kit to use any type of 313 and 324mm custom bodies. (optional link kits are sold separately)

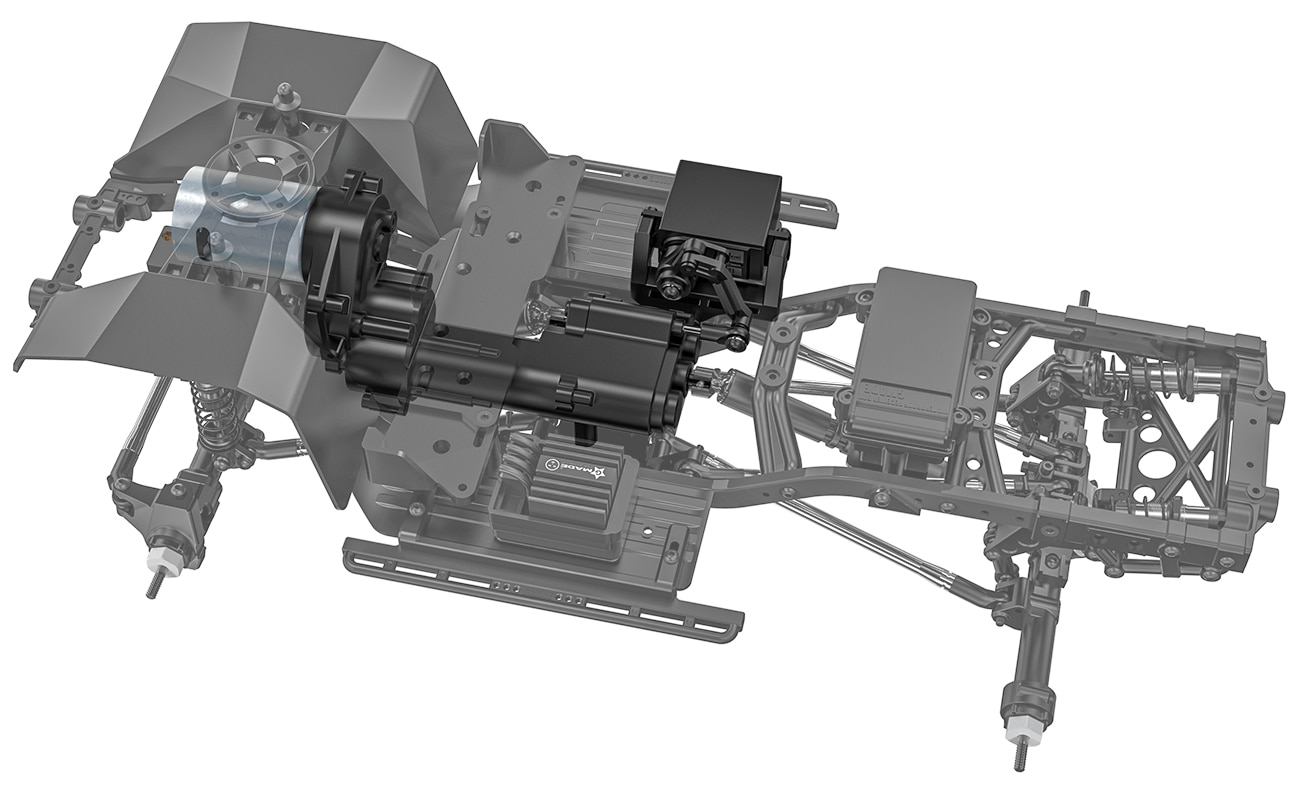

The GS02F's weight balance is designed to be placed on the forward of the chassis.
This will increase the tire traction to the front wheel to provide better crawling on high tilt angle rocks and better driving performance when hill climbing and this will help minimize the vehicle's rolling over when climbing.

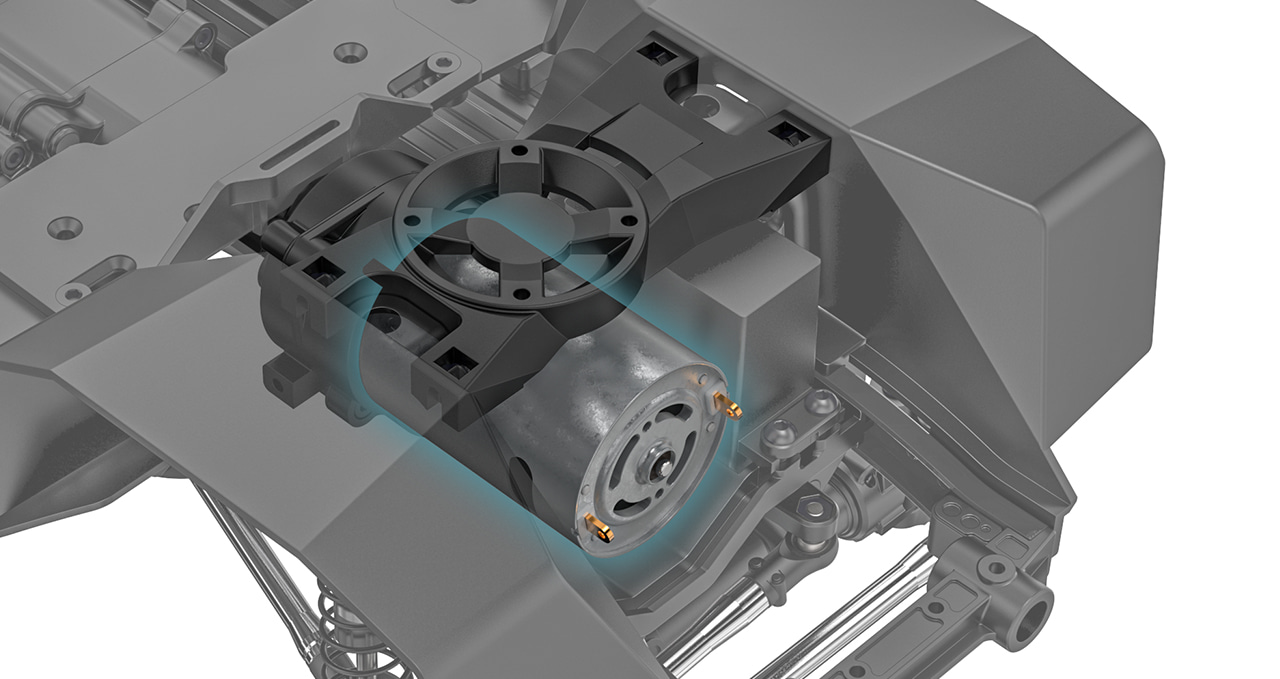

You will be able to use 540 or 550 size motor with cooling fan with option.
The motor is designed to be mounted in front of the chassis, so it can increase more tire traction to the front side.

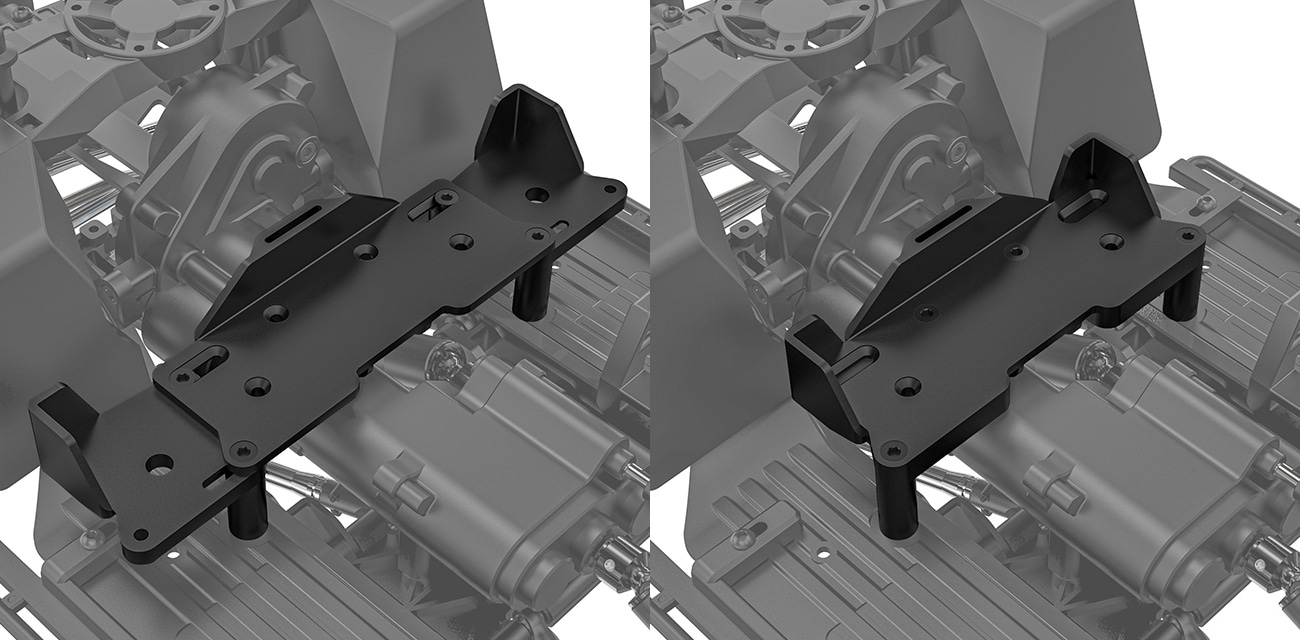

GS02F can use all sizes of lipo batteries and Ni-MH batteries.
The GS02F steering system has a steering servo on the frame just like a 1:1 real car.
It is designed to make it as closed to the zero bump steer possible, so the steer movement does not appear by front wheel suspension movements, so we ended up with maximizing the steering performance of the vehicle.

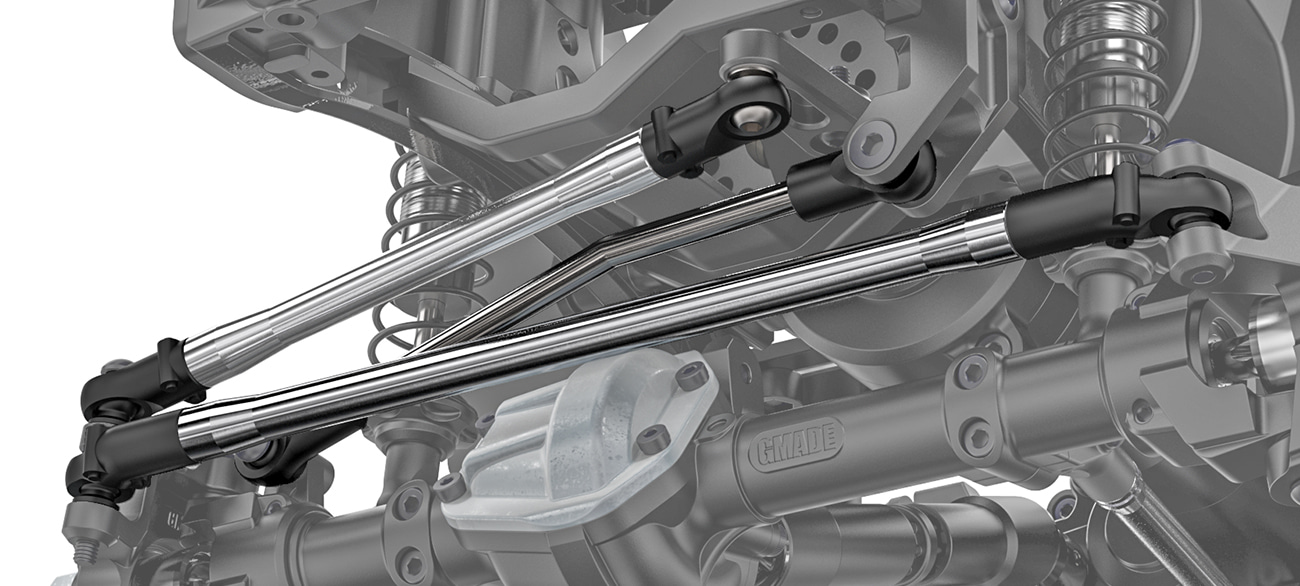

In addition, the Panhard-bar is designed to avoid interference with nearby parts, so that the front suspension and shocks can move freely without any loss.

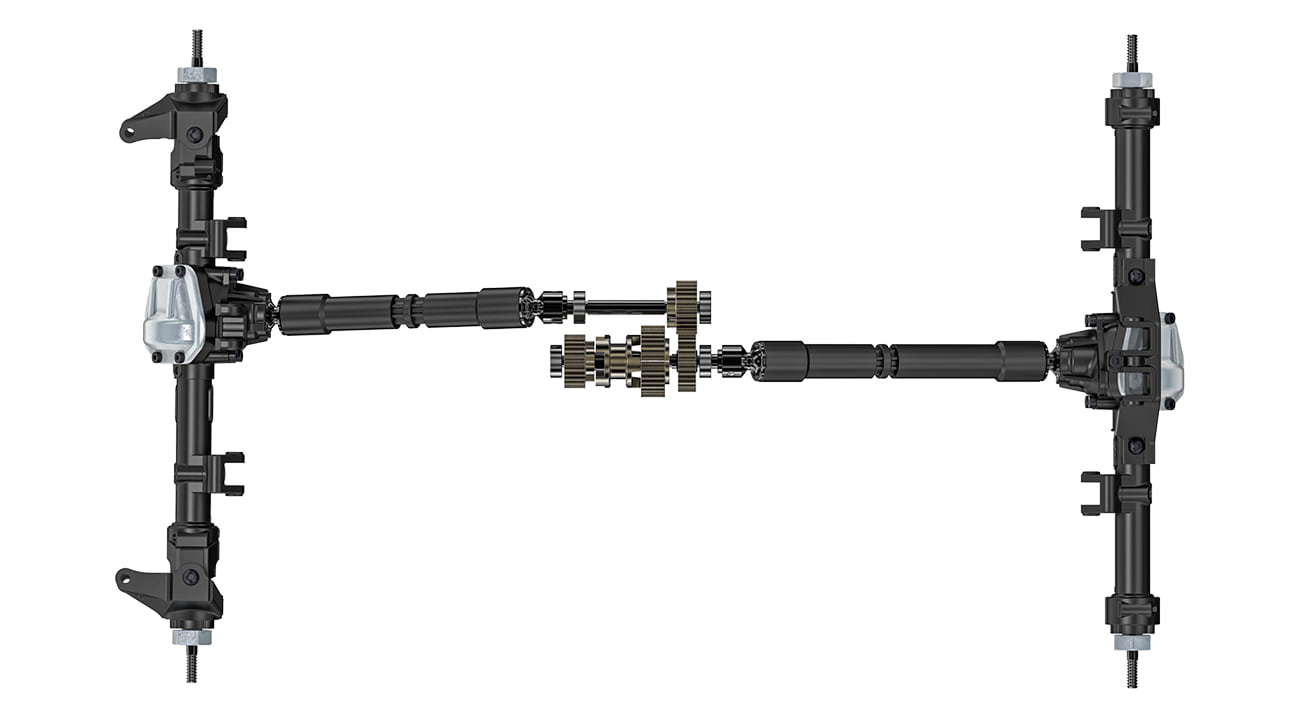

The drive lines of the front and rear axles are arranged in straight-line to reduce the fatigue stress of the universal shaft and reduce the loss of driving power by providing efficient driving lines.

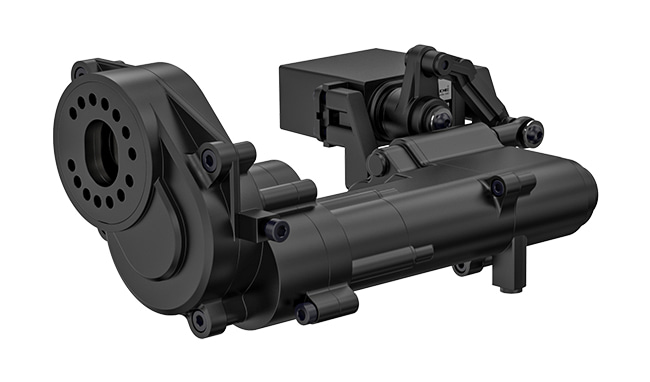

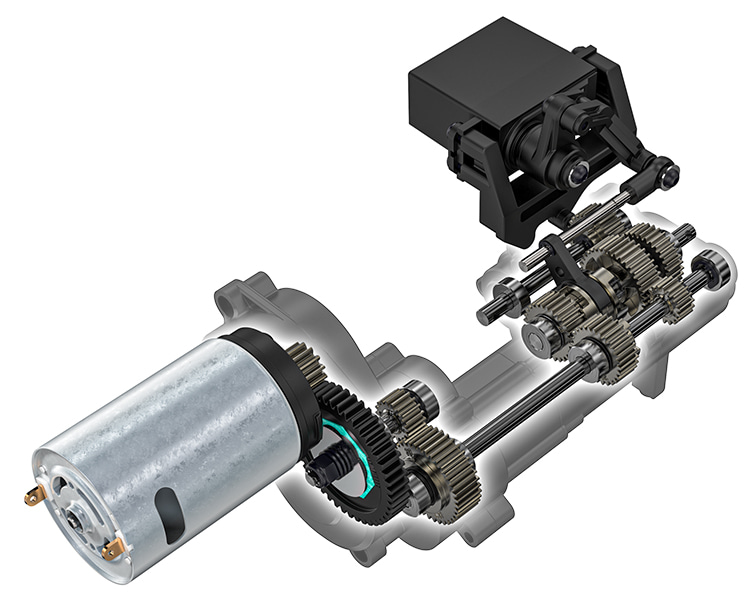

The GS02F transmission is designed to look as a real 1:1 scale vehicle, and provides the best performance according to the driving situation.

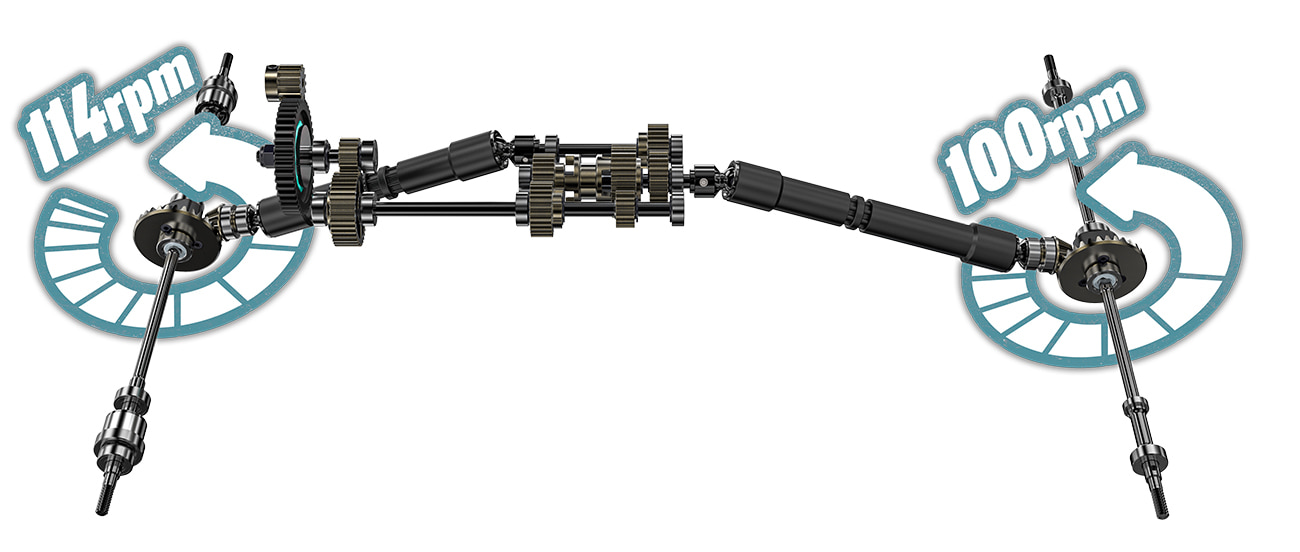

Overdrive means that front and rear wheels rotate at different speeds.
The GS02F transmission is designed to rotate the front wheel faster than the rear wheel.
Vehicles with overdrive on the front axle have an improved steering radius compared to non-overdrive vehicles, making it easier to control when driving on rough surfaces.
Increasing the tire traction allows the vehicle to pass through steep slopes and obstacles without lifting the front of the body upward.
The 1st gear is for hardcore rock crawling and the 2nd gear is for hill climb or high-speed driving.
GS02F transmission is designed to drive in a stable position without pulling the balance of power transmitted to the axle.

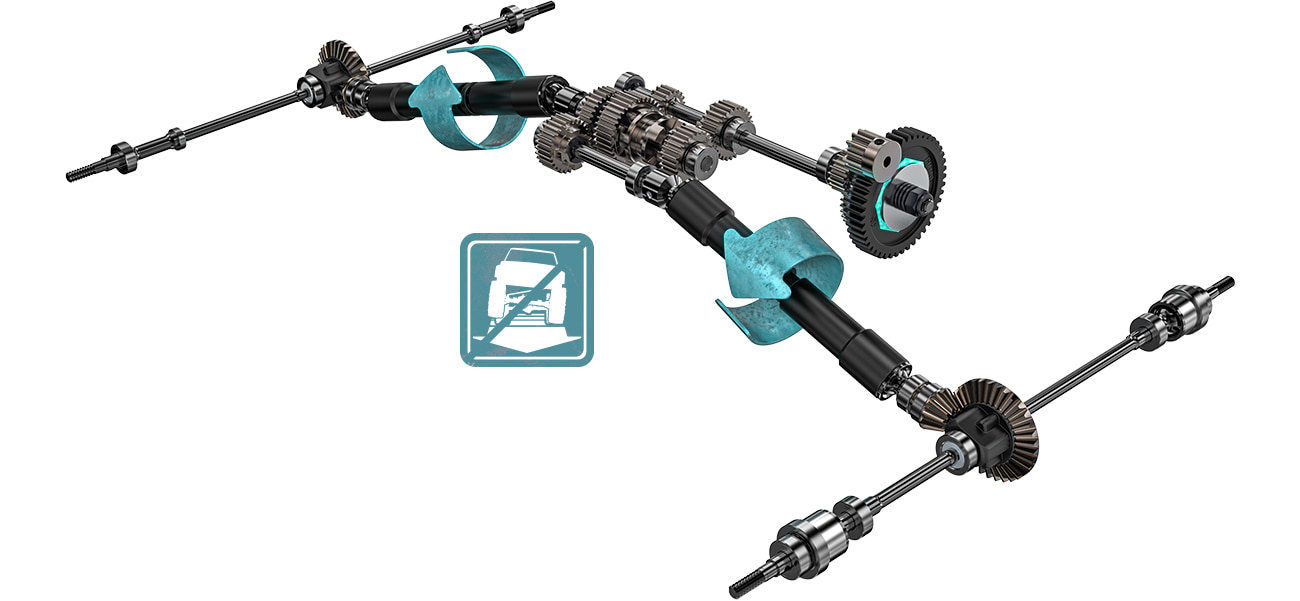

The front and rear universal shafts based on the transmitter each rotates clockwise and counterclockwise, this compensates for the forces acting on the opposite rotational forces due to the action(torque) and reaction(reverse torque) because of that this vehicle can run in a super stable conditions.

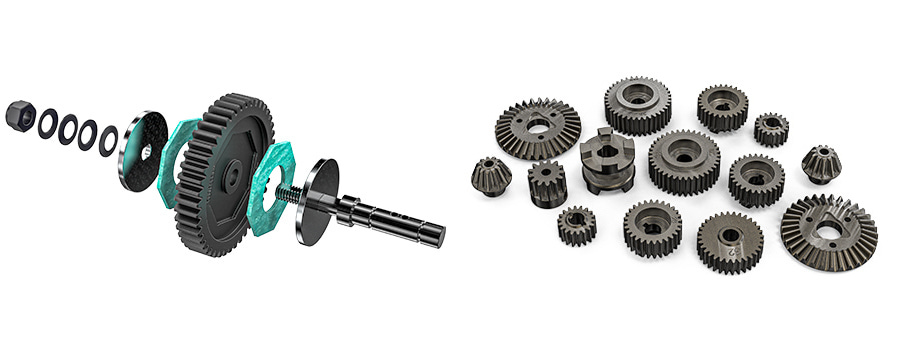

You can easily replace and install the motor pinion gear to changing the gear ratio.
The slipper pads are designed to hold the spur gears evenly to allow more precise setting.

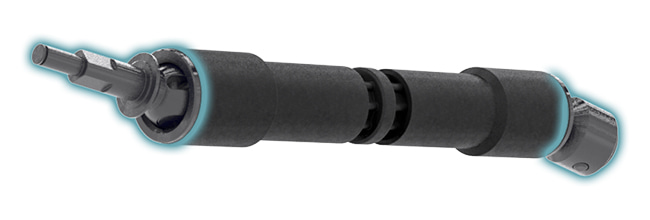

The front and rear universal shafts of the steel joints provide a smooth and stable power train.
The kit also includes the spare parts that allow you to adjust the length of the universal shaft.

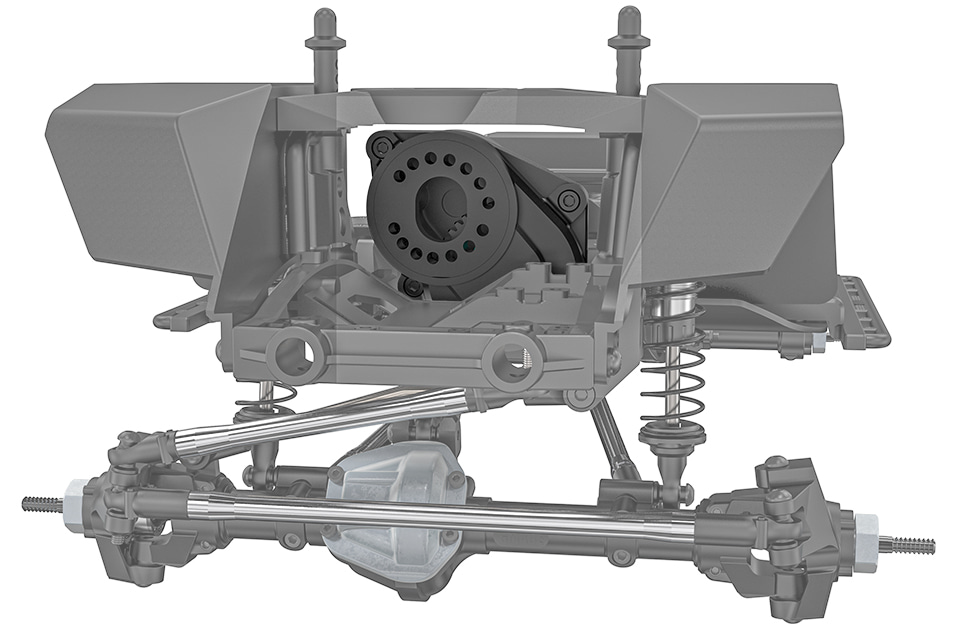

The GA44 axle is designed with the hardcore rock crawler in mind.
The axles are made of high-strength meterials, and it will look and perform optimum off-road perfermance like real 1:1 vehicle when 4-Link suspensions added.
The GA44 axle housing is a durable one-piece.
The angle of the differential cover is designed to reduce the risk of damage due to frontal impact and is therefore very suitable for off-road driving.

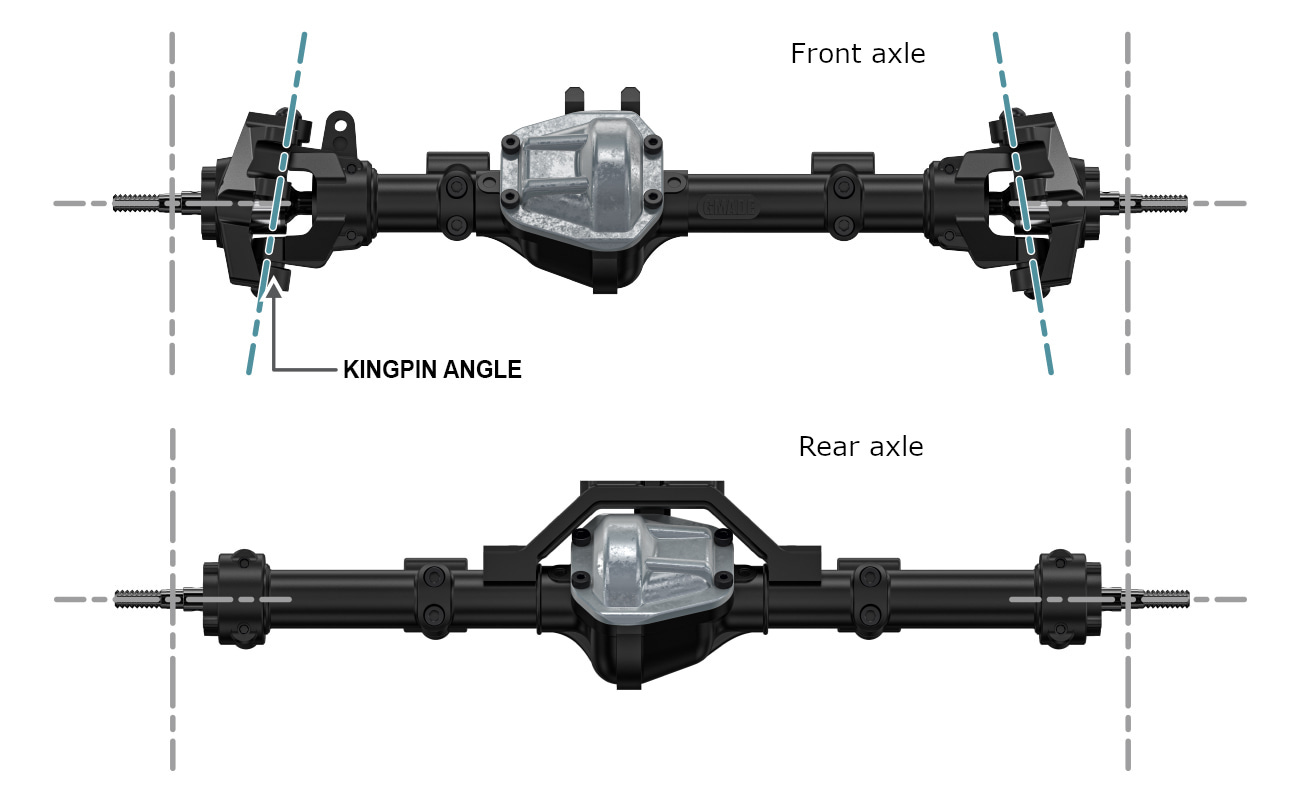

Keeping the scrub radius to a minimum to let your steering servo work at it's full potential and increases the steering efficiency.
By increasing the approach angle, you can climb the obstacles more easily than with a typical trial truck.

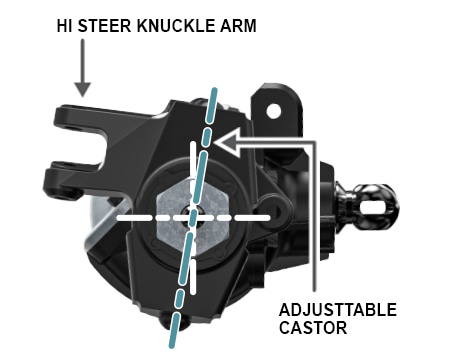

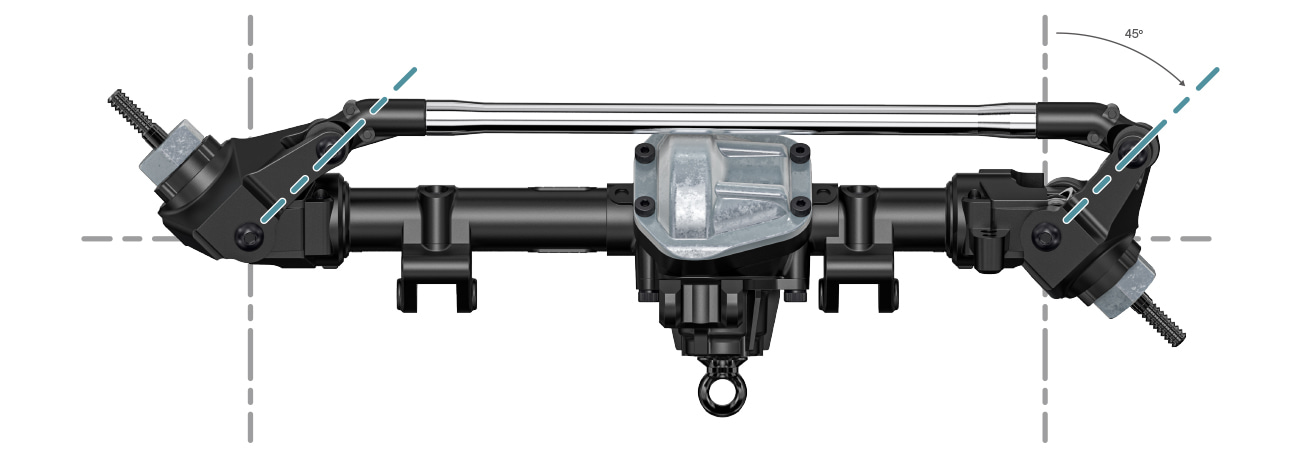

The GA44 front axle can be adjusted to the steering style to have a smooth and short turn angle depending on the driving style or to adjust to improve straight stability by changing the caster angle.
The GA44 axle uses the Zero-ackerman steering system with CVA to ensure maximum performance with a short turn radius and smooth motion even on rough off-road terrain.

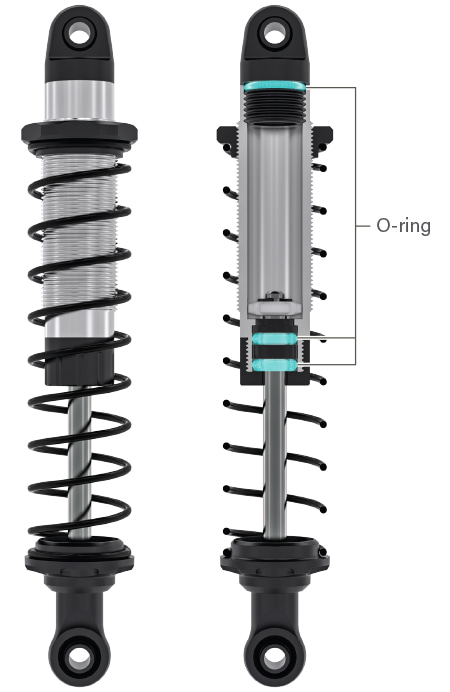

The SD Scaler Shock is a Coil-over style oil shock absorber optimized for scale trucks.
The oil inside the shocks minimizes splash when the vehicle is driven, and provides a high-durability aluminum shock body with 3.5mm heavy duty shock shafts, these will help you to drive on rough surfaces.
Beginners can easily assemble these shocks and change setups, and the adjustable nut makes it easy to adjust the ride-hight so you can quickly change your car setup even when driving condition change.

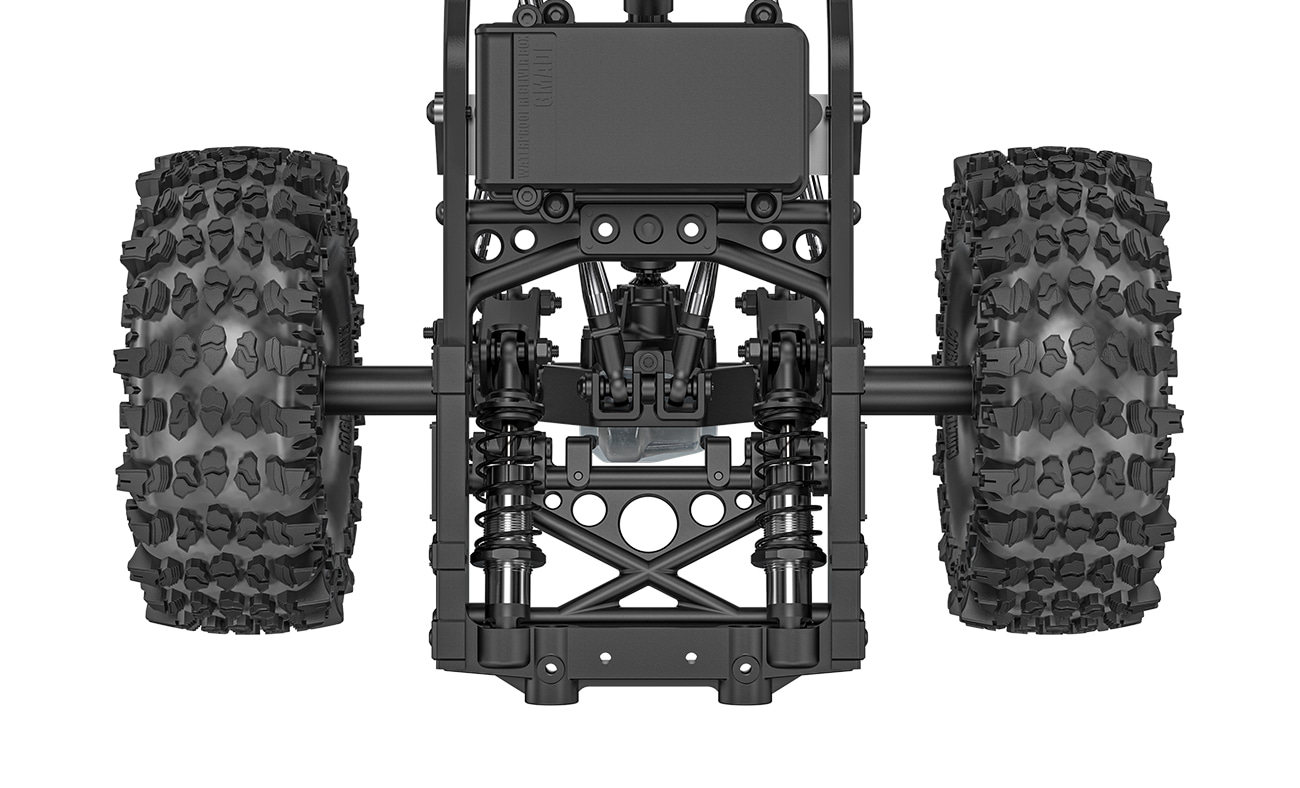

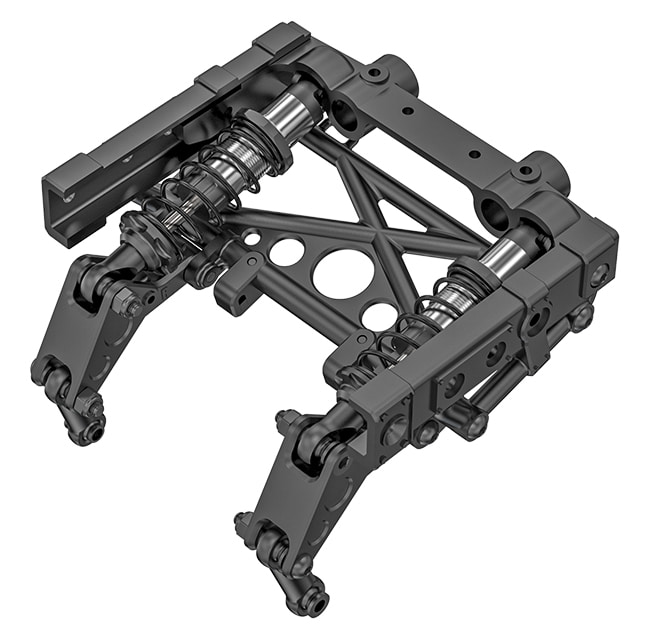

The GS02 rear cantilever suspension system is designed for efficient use of custom flat beds, full drop beds and interiors.
It also provides a smooth motion of the shock and big wheel travel.

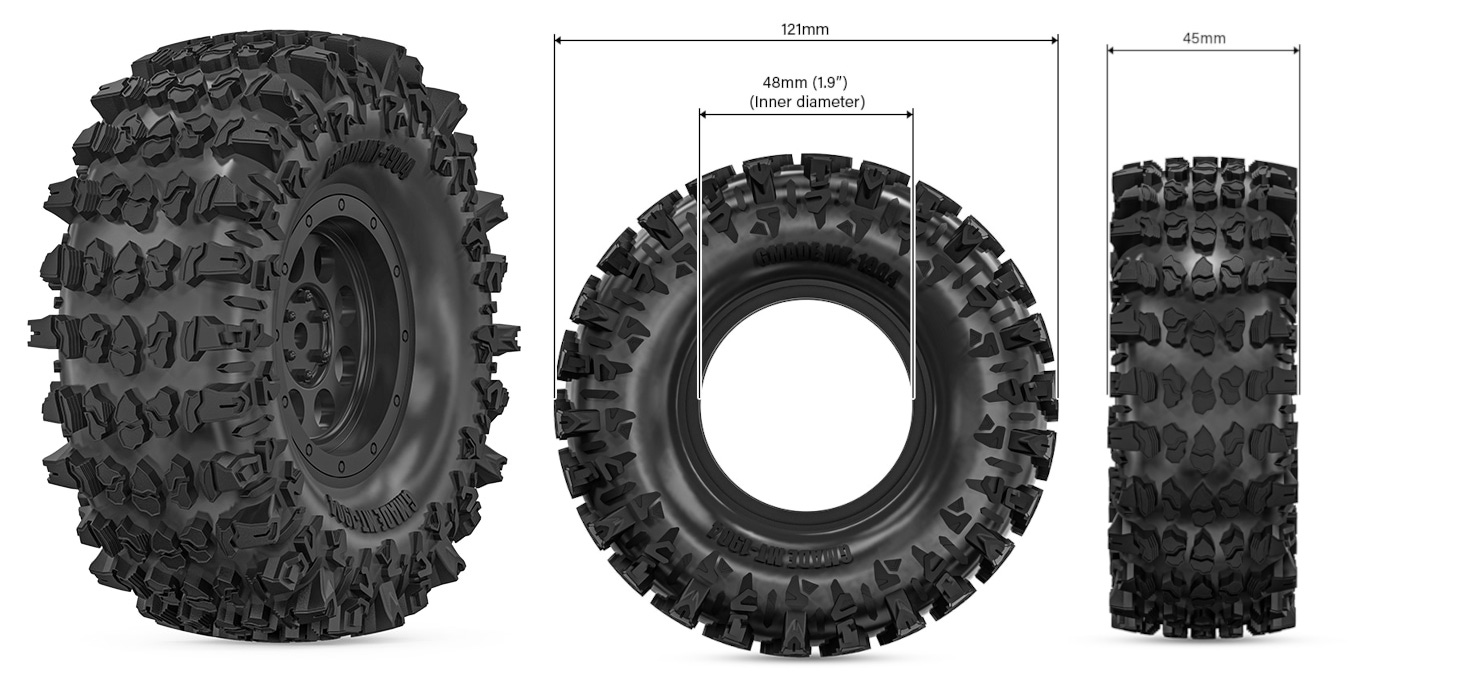

MT 1904 off-road tire made of super soft compound material provides high traction to the surface.

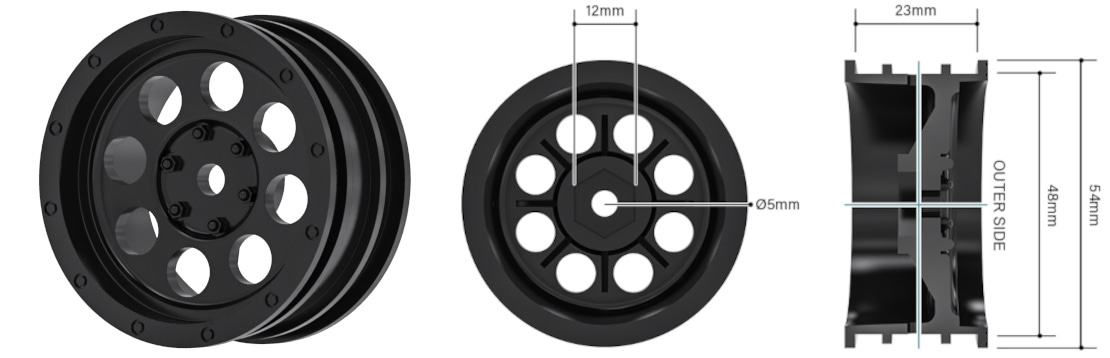

The treads of tire pattern are suitable for off-road driving and are designed with large diameter that enables to run smoothly on any
uneven road surface.
The three-dimensionally connected rear cage structure effectively counteracts external impacts and the dustproof electronic box protects various electronic equipment from foreign objects.

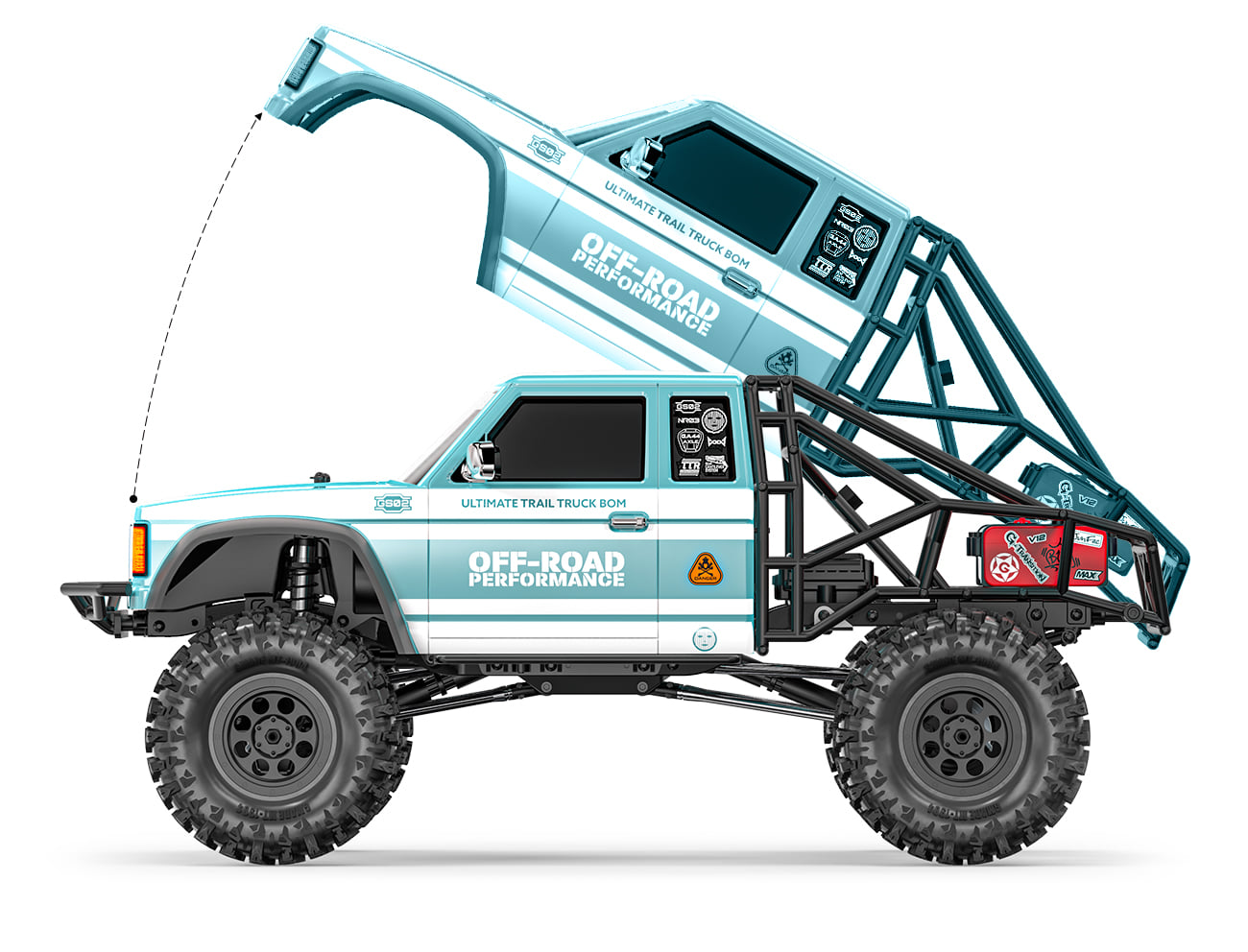

Also, the rear cage is designed as a hinge type so that the connected body can easily be attached and detached from the chassis.

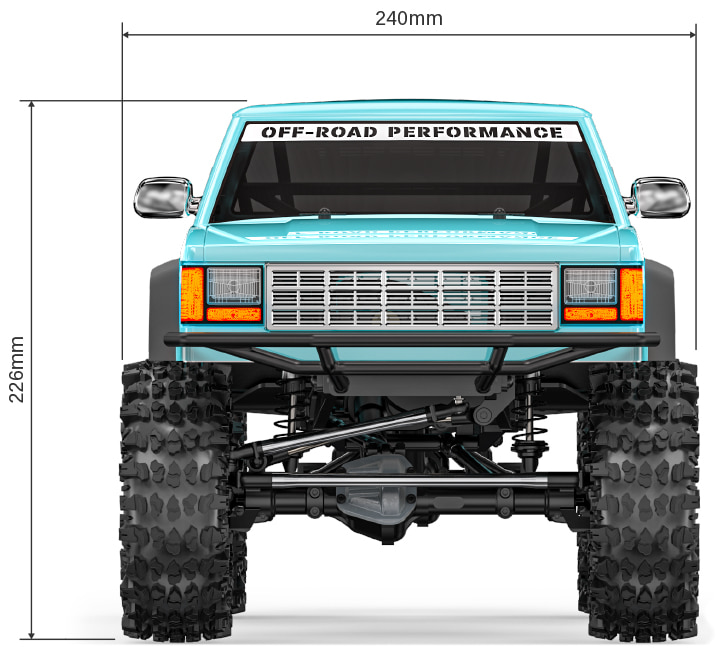

| Width | 240mm |
| Height | 226mm |
| Length | 515mm |
| Wheelbase | 313mm |
| Ground clearance | 77mm |
| Weight (without electronics) | 1.97kg |
| Scale | 1/10 |
Chassis and transparent body
1/10 GS02F BOM TC KIT
353,99 €
