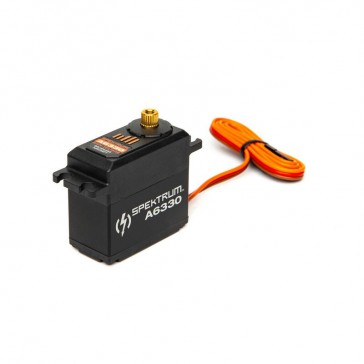

Spektrum A6330 Digital HV Brushless High Torque High Speed Metal Gear Servo
| Application | Airplane |
| Bearing | Dual ball bearings |
| Gear Type | Metal |
| Input Voltage | 6 - 8.4V |
| Maximum Servo Speed | 0.100-0.149 sec |
| Maximum Servo Torque | 200-349 oz-in |
| Motor Type | Brushless |
| Overload Protection | Yes |
| Product Height | 1.56" (40 mm) |
| Product Length | 1.58" (40 mm) |
| Product Weight | 2.25oz (71g) |
| Product Width | 0.79" (20 mm) |
| Programmable | No |
| Rotation Range | 120 degree |
| Servo Operating Voltage | 6.0 - 8.4V (HV) |
| Servo Size Category | Standard |
| Servo Type | Digital |
| Speed | 0.13 sec/60 deg @ 6V, 0.11 sec/60 deg @ 7.4V, 0.10 sec/60 deg @ 8.4V |
| Spline Count | 23 - Tooth |
| Torque | 126.6 oz-in (9.11 kg-cm) @ 6V, 178 oz-in (12.82 kg-cm) @ 7.4V, 248 oz-in (17.86 kg-cm) @ 8.4V |
| Wire Gauge | 22 AWG |
A6330 High Torque High Speed MG HV Airplane Servo
89,99 €
