E-Flite

DISC.. Su-30 Twin 70mm EDF PNP w SPMX50006S50

Expert Expert

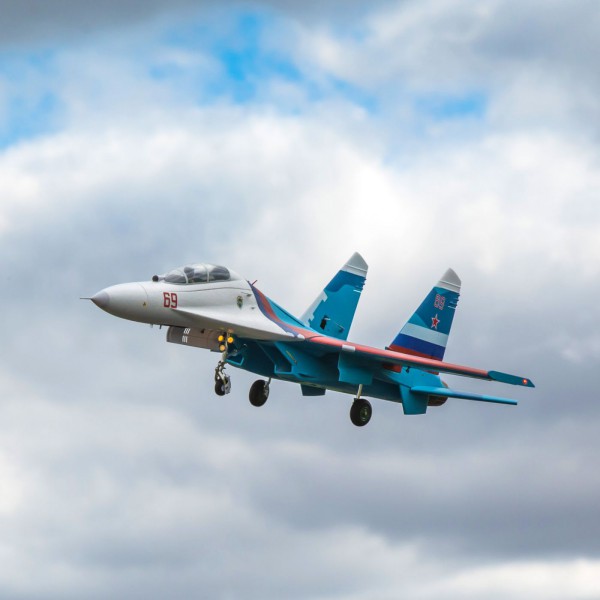

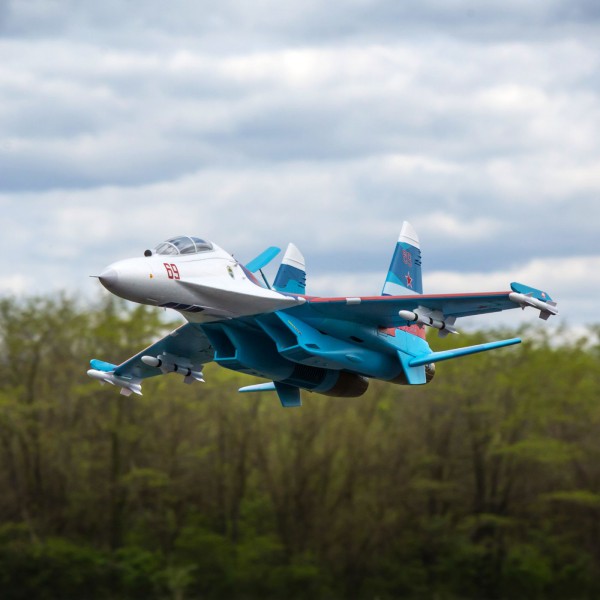

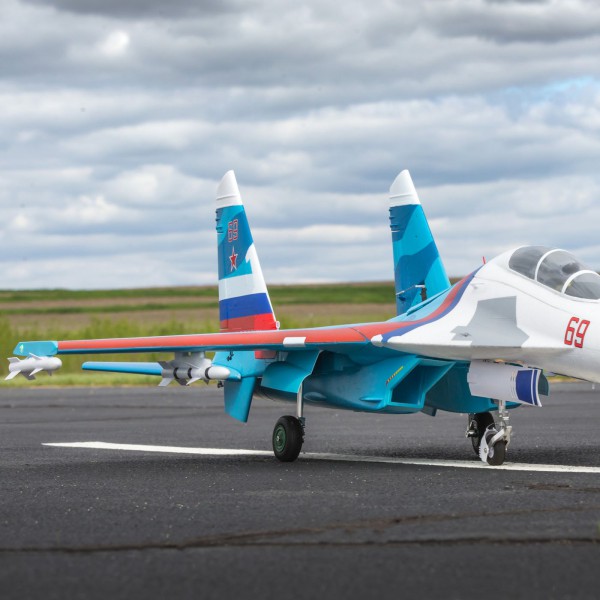

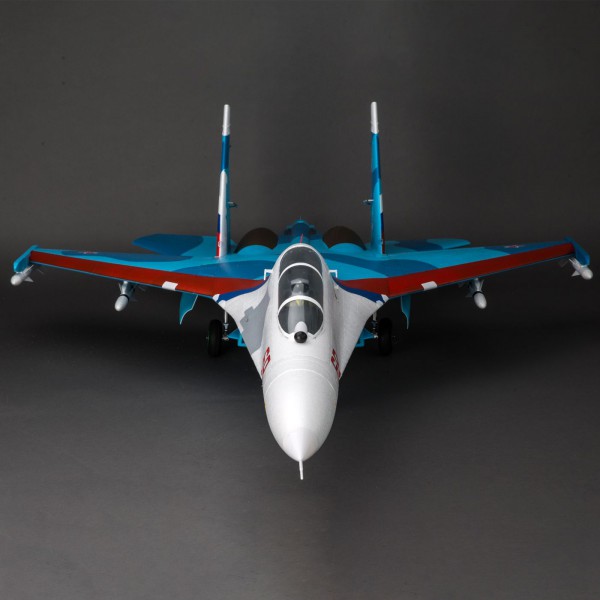

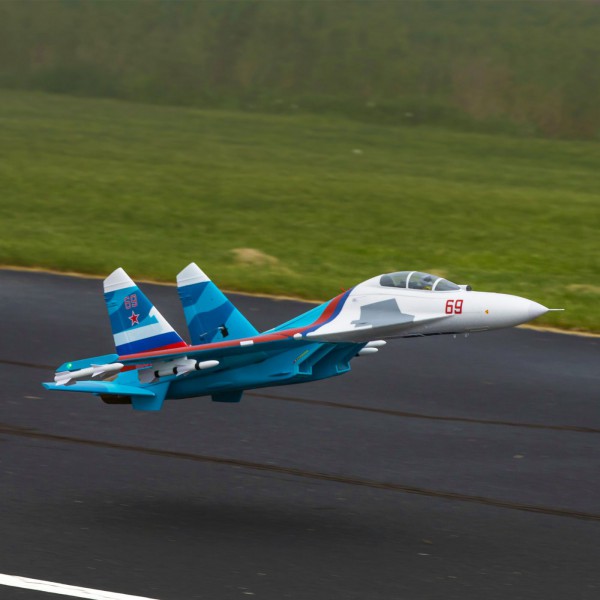

The E-flite Su-30 Twin 70mm EDF is an impressively large scale replica of the multirole fighter that delivers incredible performance combined with Extra Scale details and functional features to offer a truly incomparable flying experience! Combo set with Spektrum 22.2V 5000mAh 6S 50C Smart LiPo Battery, IC5

More details

E-Flite

EFL01075C

To be ordered Can not be ordered because availability unknown from the supplier. New delivery in 7 to 10 days.

 Shippingcosts from 6.99€
or collect for free at the shop. .

889,97 €
*

Notify me when available

More info

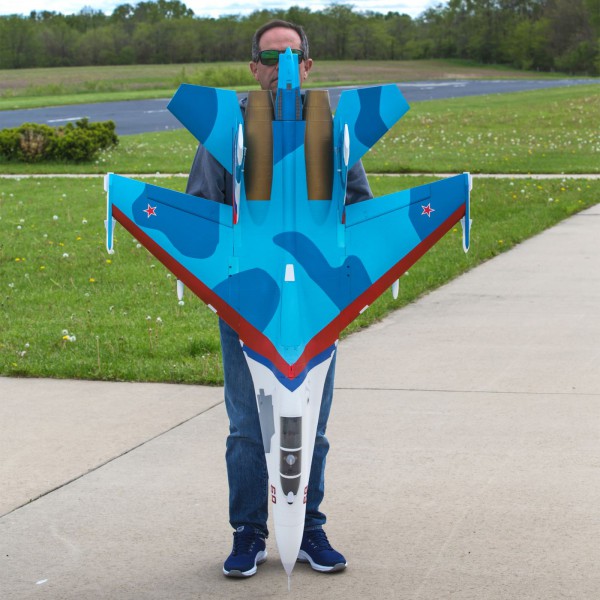

Developed by Russia's Sukhoi Aviation Corporation, the two-seat, twin-engine Su-30 multirole fighter improved on the Su-27 with greater operational range and the ability to support both air and ground attacks. The E-flite® Su-30 Twin 70mm EDF jet replicates this rarely modeled fighter in striking Extra Scale detail and offers unique flight characteristics and features. From its large size, functional air brake and highly-detailed retractable landing gear to the twin power system and the awesome turbine-like sound it delivers, this Su-30 is designed to impress. The model also features a unique Russian Falcons trim scheme that adds to the authenticity and in-flight visibility.

The E-flite® Su-30 Twin 70mm EDF jet replicates the seldom-modeled Sukhoi fighter with power, maneuverability, and Extra Scale details that all combine for a truly incomparable flying experience. With its twin EDF units running in sync, the Su-30 sounds like a giant-scale turbine-powered jet — and because of its impressively large size it flies like a big jet, too. The 12-blade 70mm fans feature brushless inrunner motors that are paired with 80A ESCs wired to use a single 6S 5000–7000mAh LiPo battery. This power system produces excellent top speed and vertical performance, while the factory-installed, metal-geared servos with ball-link equipped linkages deliver precise control. Functional Extra Scale features include a deployable air brake, LED landing and navigation lights, full-flying stabs, sequenced gear doors and electric retracts with shock-absorbing struts including a trailing-link nose gear so the Su-30 can be flown from a wide variety of surfaces. And a multitude of Extra Scale details make it a standout on the tarmac and in flight, including molded-in panel lines and hatches, removable optional-use ordnance, cockpit detail and a factory-applied finish with a unique high-visibility trim scheme.

High-Performance EDF

Twin 12-blade 70mm fans deliver excellent top speed and vertical performance, while conveniently operating from a single 6S 5000-7000mAh LiPo battery. Making the experience even more exciting is the fantastic sound produced by the two fans running in sync.

Extra Scale Details

The Su-30 Twin 70mm EDF features an abundance of Extra Scale details including molded-in panel lines and hatches, shock-absorbing landing gear, removable ordnance and more.

Functional Scale Features

Factory-installed LED navigation and landing lights, full-flying stabs and an operational air brake – even sequenced gear doors – are functional Extra Scale features that take your experience to another level.

Durable Precision

Construction with fully molded EPO material makes it possible to replicate complex detail and shapes in a lightweight yet durable form. The result is an outstanding scale appearance that's easy to maintain and delivers the best possible flight experience. The factory-installed metal-geared servos with ball-link equipped linkages deliver crisp and precise control at every speed.

Easy Assembly

Final assembly can be completed in less time than it takes to charge the battery. The nose cone is magnetically secured and the wings are removable for convenient storage and transport.

Plug-N-Play® Completion Level

This Plug-N-Play (PNP) model comes out of the box with a factory-installed power system and servos that are ready to connect to the compatible receiver of your choice (sold separately). Simply install the receiver, finish any final assembly, and fly!

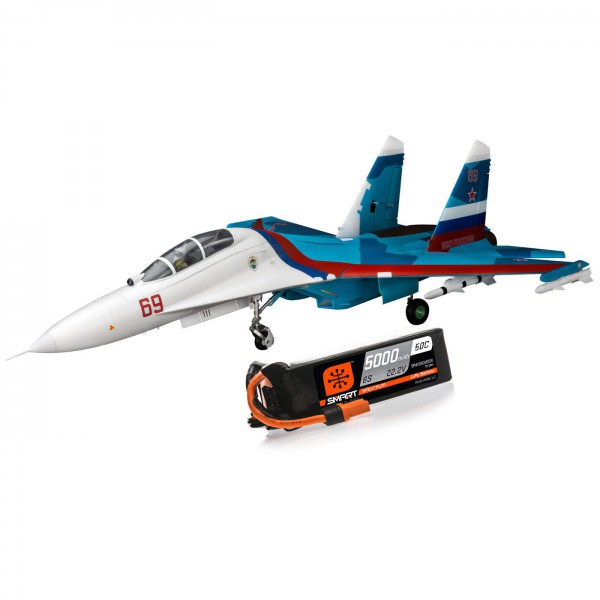

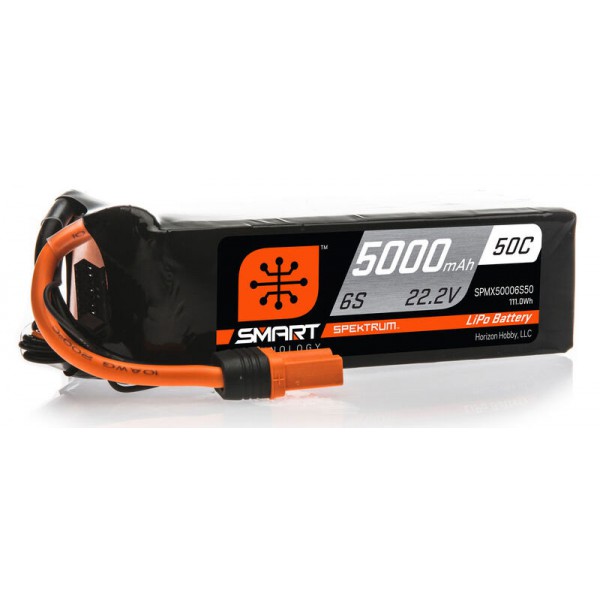

This combo set comes with a Spektrum 22.2V 5000mAh 6S 50C Smart LiPo Battery with IC5 connector.

You'll never have to set charge preferences for a Spektrum Smart battery until you want to. When a Spektrum Smart LiPo battery is connected to a Spektrum Smart charger, unique parameters and health of that Smart LiPo battery upload from the Smart memory microchip integrated into the battery. Through the charger, you can view and set preferences, such as charge rates, so that all you have to do to charge the pack every time is press the charger "Start" button. Smart technology takes care of the rest.

Our new Spektrum Smart 50C LiPos come in a variety of popular sizes and are ready to drop into your RC aircraft for better performance, power, and reliability. These are the perfect packs for high performance models and power systems and a great upgrade to get more punch and power on nearly any setup.

Spektrum Smart LiPo Batteries Store Unique Data, Such As:

  • Battery Brand
  • Battery Type
  • Battery Capacity
  • Battery C Rating
  • Individual Cell Voltage
  • Battery Temperature
  • Charge/Discharge Cycles

Spektrum Smart LiPo batteries also maintain an error log including the number of over-heat, over-discharge and over-charge incidents which can be helpful data in assuring that the battery you've chosen is right for the application. A Smart Battery uploads its charge parameters to a Spektrum Smart Charger automatically making charging as simple as pressing the "Start" button. The charge rate of every Smart Battery is customizable, allowing you to take full advantage of packs with faster charge ratings.

Key features

  • Impressively large scale replica of the rarely modeled multirole Sukhoi fighter.
  • Extra Scale details including removable ordnance, molded-in panel lines and more.
  • Functional Extra Scale features including an air brake, LED lights and sequenced gear doors.
  • Twin 12-blade 70mm fans deliver excellent top speed and vertical performance plus turbine-like sound
  • Factory-installed, high-power 6S-compatible brushless inrunner motors and 80-amp ESCs.
  • Ten factory-installed, metal-geared servos with ball-link equipped linkages.

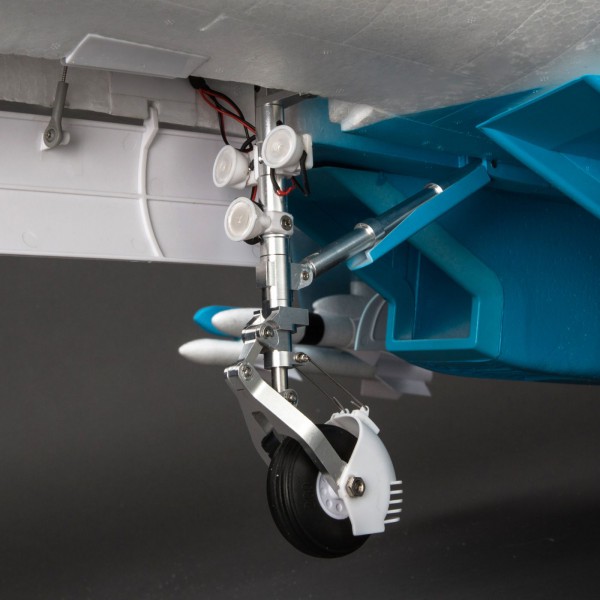

  • Electric retracts with detailed, shock-absorbing struts for operation from a variety of surfaces.
  • Easy final assembly with removable wings and a magnetically secured nose cone.
  • Convenient top hatch with clear canopy, cockpit detail and a pilot figure.
  • Unique factory-applied, high-visibility trim scheme and finish.
  • Durable yet lightweight, fully-molded EPO airframe.

Specifications

Aircraft

Approximate Assembly Time: 1-3 Hours
Approximate Flight Time: 3 Minutes
CG (Center of Gravity): 4.5-5.9" (115-150mm) back from the leading edge of the wing at the wing root
Charger: Sold Separately
Completion Level: Plug-N-Play
Control Throw - High (Ailerons): Up and Down 0.59" (15mm)
Control Throw - High (Elevator): Up 1.6" (40mm), Down 1.3" (34mm)
Control Throw - High (Rudder): Left and Right 1.1" (28mm)
Expo (Ailerons): Low Rate 5%, High Rate 10%
Expo (Elevator): Low Rate 5%, High Rate 10%
Expo (Rudder): Low Rate 5%, High Rate 10%
Fan Size: 2.7" (70mm)
Flying Weight: 9.6lbs (4380g)
Length: 64.6" (1640mm)
Minimum Required Radio: 6-channel
Minimum Speed Control: 80A Brushless, Included
Motor Size: 2860 1850Kv
Recommended Motor Battery: 6S 5000mAh w/IC5 Connector (sold separately)
Retracts: Nose Gear, Left & Right Main Gear
Servos: 9g Metal Gear, 9g Metal Gear Reverse, 13g Metal Gear, 13g Analog Metal Gear
Transmitter Range: Full
Trim Scheme Colors: White, Medium Blue, Dark Blue and Red
Wing Tube Length: 27.2" (690mm)
Wing Tube OD: 0.39" (10mm)
Wingspan: 43.3" (1100mm)

Battery

Application Aircraft
Battery Balance Connector JST/XH
Battery Capacity 5000-5999mAh
Battery Voltage 22.2V
Capacity 5000mAh
Cell Configuration 6S1P
Charge Protection Circuitry Yes
Connector Type IC5
Hard Case No
Maximum Charge Rate 3C
Maximum Continuous Discharge Current 50C
Number of Cells 6
Product Height 2.2 in. (56mm)
Product Length 5.59 in. (142mm)
Product Weight 1.45bs (660g)
Product Width 1.81 in. (46mm)
Smart Technology Smart Battery
Wire Gauge 12 AWG



Data sheet

  • Manufacturer : E-Flite
  • Level of difficulty (1 to 3) : 3
  • Matter : EPP / EPO Foam
  • Kits : Jets
  • Type : Plug 'n Play
  • Drive : Electric

What you need to complete

  • Full-range 6+ channel transmitter and receiver
  • Compatible LiPo charger

Composition Kit

  • (1) E-flite® Su-30 Twin 70mm EDF with:
    • (2) 1850Kv Brushless Inrunner Motors (installed)
    • (2) 80A Brushless ESCs (installed)
    • (10) Metal-Geared Servos (installed)
  • (1) Product Manual
  • (1) 22.2V 5000mAh 6S 50C Smart LiPo Battery: IC5
