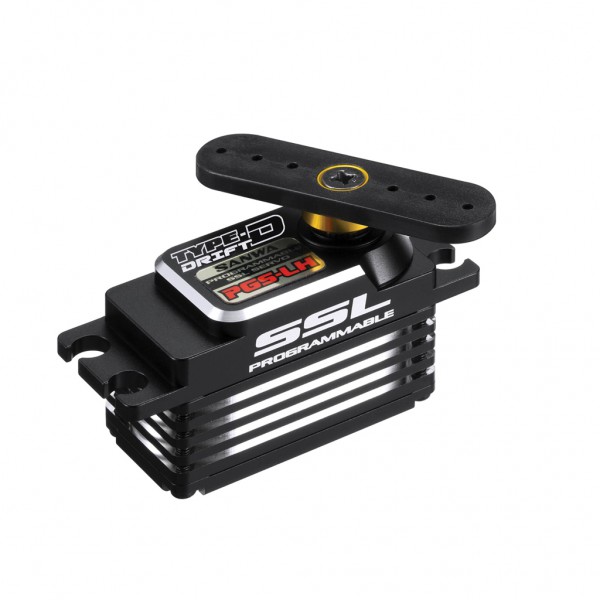

PGS-LH Type D Servo

Sanwa PGS-LH brushless MG programmable servo

More details

Manufacturer: Sanwa

Reference: SAN107A54476A

Stock status: Can not be ordered because availability unknown from the supplier. New delivery in 15 to 30 days.

Shippingcosts from 6.99€
or collect for free at the shop. .

MCM Price : 178,99 €

Notify me when available

More info
Key features
Specifications
Data sheet

More info

Programmable Servo to be compatible with SSL & Telemetry at Launch
- Setting Adjustment by wireless from Radio
- Setting Adjustment to connect Servo with Setting Gear
- In case of using with incompatible Gyro for SSL (SGS-01C/SGS-01D), the servo cannot be set by transmitter through SSL function.
- Regarding Temperature, Current, Voltage and Volume Position on Servo inside, Telemetry-transmission can be passed to Radio.

Key features

Written specialized program for drift - SSL-COMPATIBLE PROGRAMMABLE SERVO
# Compatible with CODE 10 (M12S, EXZES ZZ, MT-44)
Not Compatible with CODE 5 (M12, EXZES Z, MT-4S, MT-4, MT-S)
- PGS SETTING GEAR-COMPATIBLE
- SUPER RESPONSE (SSR) MODE-COMPATIBLE
- HIGH RESPONSE (SHR) MODE-COMPATIBLE
- Li-Po 2 CELL-COMPATIBLE
- LOW PROFILED
- HIGH SPEED TYPE
- BRUSH LESS MOTOR
- FULL ALUMINUM CASE
- FULL METAL GEAR (Strengthening Gears)
- AL HEAT SINK
Craving "TYPE-D (DRIFT)" on top case

Specifications

Speed

0.09 sec/60° (7.4V)
0.11 sec/60° (6.0V)

Torque

15.6 kg/cm (7.4V)
12.8 kg/cm (6.0V)

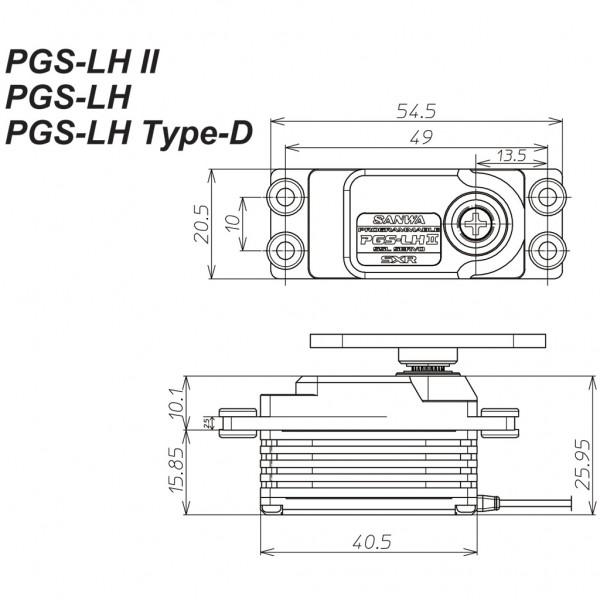

Dimensions

40.2 x 20.5 x 26.0mm

Weight

Data sheet

Manufacturer : Sanwa
