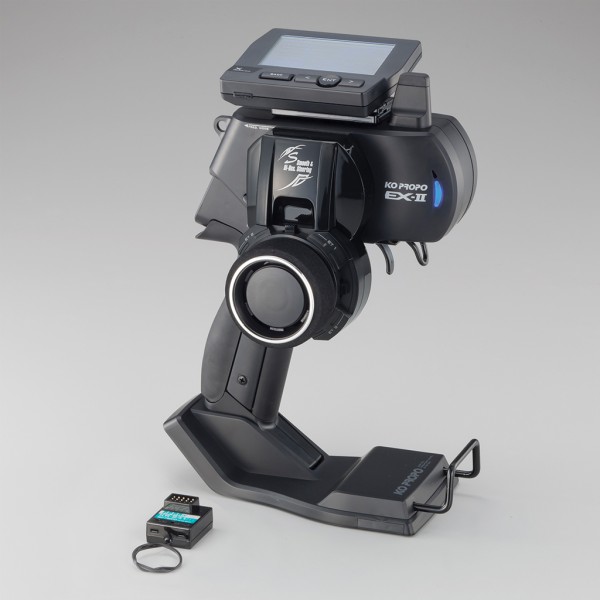

EX-2 ST2 w/KR-241FH

The KO Propo EX2 Radio sytem including KR-241FH receiver and KO10645 drop extension unit.



Features

High performance CPU &2.7inch LCD
Using a similar CPU to the EX-1 provides a super linear and fast response. Each menu is displayed like an icon to make it easy to search and the new menu tree is useful for setting up to 20 vehicles.

Two LCD Positions90 Degrees Conversion
The LCD screen can be placed in two directions for a preferred viewing position.

Compact and Light Weight Master Unit
The Master Unit is lighter and the re-newed design achieves a new weight balance. The EX-2 is very compact and light weight making it very useful for your use.

Trigger Position Adjustable 3D trigger feature
Using KO's unique 3D trigger and trigger position adjustment allows for comfort for all hand and finger sizes.

EX-2 Short Antenna
The new short antenna design reduces obstructions and performance offered is very linear and connected to the system.

K.I.Y Optional Parts Compatible
Utilizing the Patented K.I.Y system allows for Steering Units, Grip Units, Battery Stand and Grip Pads to be used with the EX-2 as upgrades to your system.

Settings

<Model>
Model Select / Model Name / Model Copy / Model Reset / All Reset

<System>
Display / Battery / Calculator / Sound / VR Information / Config / Key Speed / Menu Speed / Language / Operation time / User timer

<Steering>
Steering Travel / Steering Balance / Steering Trim/Steering Sub Trim / Steering Trim rate / Steering Speed Turn(2way) / Steering Speed return (2way) / Steering Curve / Steering Punch / Steering Feel / Steering Response / Steering Auto Trim / Steering Auto Balance /Steering Reverse

<Throttle>
Throttle travel F / Throttle travel B / Throttle Trim/Throttle Sub Trim / Throttle Trim rate / Throttle Speed Turn(3way) / Throttle Speed reTurn(3way) / Throttle Curve / Throttle Punch / Throttle Feel / Throttle Response / Push Control/ ACCEL / ABS / Auto Start / Idle Up / Neutral Brake / Throttle Override / Throttle Reverse

<3ch/4ch>
KEY Setting / 2WAY / 3WAY / 5WAY / ANALOG / Gyro / Twin Servo / 4WS/AMP Mixing / Throttle Mixing / Trim Set

<Timer>
Timer Start / Trigger Start / Lap history / Start Stop Key / Lap Key / Lap Navi / Alarm time / Pre Alarm / Alarm Mode / Timer Mode (Lap Timer/Down Timer)

• Dimensions: 240×163×107mm 　
• Weight: 528g ( Not included battery)
• Current: 150mA RO3/AAA/UM4 battery x 4
• Using time: 6hours ( It may change by a kind of battery in use.）
• 40 Model Memories.
• Micro receiver KR-241FH included.
• Other Compatible receivers: KR-418FH,KR-415FHD,KR-413FH,KR-241FH,KR-211FH,KR-212FHG.
