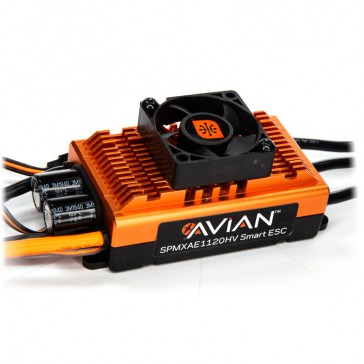

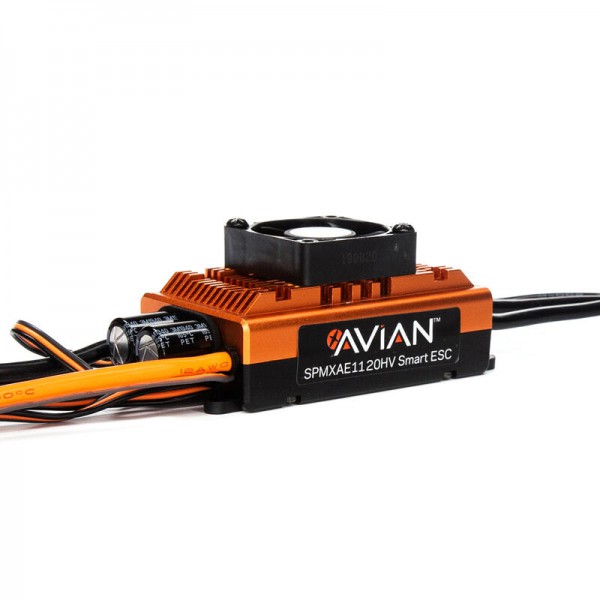

Avian 120 Amp Brushless Smart ESC 6S - 12S

Maximize

Electronics Brushless Speed controller Electronics & Motors

Avian 120 Amp Brushless Smart ESC 6S - 12S

Spektrum Avian 120 Amp Brushless Smart ESC 6S - 12S

Manufacturer: Spektrum

Reference: SPMXAE1120HV

Stock status: In stock at our supplier. Shipment in 4 to 7 days, without warranty.

Shippingcosts from 6.99€
or collect for free at the shop. .

MCM Price : 249,99 €

Quantity Maximum quantity reached.

Notify me when available

Key features
Specifications
Data sheet
What you need to complete
Composition Kit
Videos

Key features

Smart all-in-one telemetry
Fast, powerful 32-bit ARM M4 processor
Multiple options for easy programming:
- Smart ESC Programming Box
- SmartLink USB Updating and Programmer application
- Throttle stick programming
Multi-point protection:
- Over-current protection
- Automatic LiPo low-voltage cutoff
- Thermal protection
- Failsafe protection
Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer

Up to 12S input voltage for high speed and top performance
Ideal for giant scale fixed wing aircraft and 600 sized and above helicopters
Compact for easy installation
Ready to install — no soldering required
Rugged plastic case
Heat dissipating design
Tabs included for a hard mount
Aluminum heat sink for high efficiency

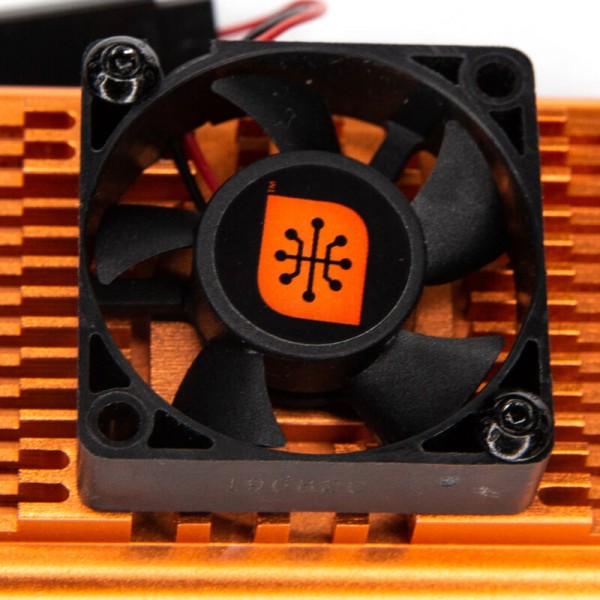

Cooling fan
Adjustable high-power BEC
Dual BEC power connectors
Firmware updatable through the Smart ESC Programming Box and SmartLink PC application
High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
Limited 1-year warranty

Specifications

Amperage	120A
Application	Aircraft
Auto Cutoff	Yes
Battery Input Lead	12 AWG, 5.3" (135mm)
BEC	Yes
BEC Continous Current	8A
BEC Maximum Burst Current	25A
BEC Type	Switch mode
BEC Voltage	6.0V / 7.4V / 8.4V
Brakes	Yes
Connector Type	IC5
Forward	Yes
Input Voltage	22.2 - 44.4V
Low-Voltage Cutoff Programmable	Yes
Maximum Burst Current	140A
Maximum Continuous Current	120A
Motor Output Lead	12 AWG, 4.3" (110mm)
Output	120A
Output Connector	4mm female bullet
Overload Protection	Yes
Product Height	1.1" (28 mm)
Product Length	3.5" (89 mm)
Product Weight	0.43lbs (195g)
Product Width	1.8" (46 mm)
Programmable	Yes
Reverse	No
Wire Gauge	12 AWG

Data sheet

Manufacturer : Spektrum

What you need to complete

Spektrum™ Aircraft Receiver
Spektrum Smart Technology LiPo Battery
Spektrum Transmitter

Composition Kit

(1) Spektrum™ Avian™ Smart ESC
(1) Spektrum Smart sticker sheet
(1) Product Manual

Videos
