Spektrum Firma 100A Brushless Smart ESC
Spektrum Firma 100A Smart ESC for surface vehicles is waterproof and delivers power and intelligence all-in-one. Without additional sensors or modules, they feed battery and ESC telemetry data straight to your radio in real time, all over one connection.

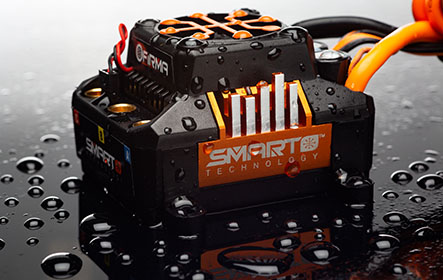

The all-weather, waterproof design of Spektrum™ Firma™ Smart ESCs allows them to perform in nearly any terrain under almost any conditions. Firma ESCs keep you going through dust, gravel, snow, and water.
Firma™ ESCs feature IC™ series battery connectors. The IC series of connectors are designed from the ground up to provide a more solid connection, higher heat resistance, and effortless installation. When used with an IC3™ or IC5™ connector-equipped Spektrum™ Smart battery, the ESC can receive and transmit battery telemetry data. EC3 and EC5 are also compatible with Firma ESCs for basic operation and ESC telemetry.
No need to connect multiple wires, sensors, modules, and links. With Firma™ ESCs, simple one-wire telemetry transmits a wide range of data directly to your transmitter in real time, including RPM, voltage, temperature, balance, capacity, and speed.
When used with a Spektrum™ Smart LiPo battery, your Firma™ ESC provides you with the benefit of battery telemetry that's automatically transmitted to your compatible Spektrum radio in real time. On your transmitter screen you'll be presented with helpful information such as number of cycles, battery percentage, individual cell voltage and more!
Multiple programming options are available. Button programming can be used with nothing more needed. Using the Smart Firma™ ESC Programming Box, you can easily change settings at the track to suit driving conditions. An easy-to-use Smart Link USB Updating and PC Programmer app is also available.
The Firma™ ESCs' 32-bit M4 processor produces higher resolution signal input and more accurate motor output.| Auto Cutoff | Yes |
| Battery Type | LiPo (3.7V per cell) |
| BEC | Yes |
| BEC Continous Current | 4A |
| BEC Voltage | 6V and 7.4V selectable |
| Brakes | Yes |
| Connector Type | IC5 |
| Drive Type | Forward/Brake/Reverse |
| Forward | Yes |
| Input Voltage | 6.0V - 9.6V (2-4S LiPo, 5-9 cell NiMH) |
| Low-Voltage Cutoff Programmable | Yes |
| Maximum Burst Current | 650A |
| Maximum Continuous Current | 100A |
| Motor Output Lead | 4mm Female Bullet |
| Motor Type | Brushless - Sensorless |
| Output | 100A |
| Output Connector | 4mm Bullet |
| Overload Protection | Yes |
| Product Height | 1.33" (34 mm) |
| Product Length | 1.7" (43 mm) |
| Product Weight | 0.306lbs (139g) |
| Product Width | 1.53" (39 mm) |
| Programmable | Yes |
| Reverse | Yes |
| Technology | Smart |
| Time Delay Brake | Yes |
| Water-Resistant | Yes |
DISC.. Firma 100 Amp Brushless Smart ESC 3S
109,99 €
